Jennair® 30" JX3™ Electric Downdraft Cooktop JED3430GS

SKU: JED3430GS

JennAir Luxury Redefined Event, November 1 - December 31, 2024. Save 15% when you purchase 2 or 3 qualifying JennAir® products. Save 20% when you purchase 4 or more qualifying JennAir® products!

$3,099.99
Please contact us for availability
Print:
Colour: Stainless Steel
Cooktop Element Style: Ceran
Control Location: Side
Fuel Type: Electric Radiant

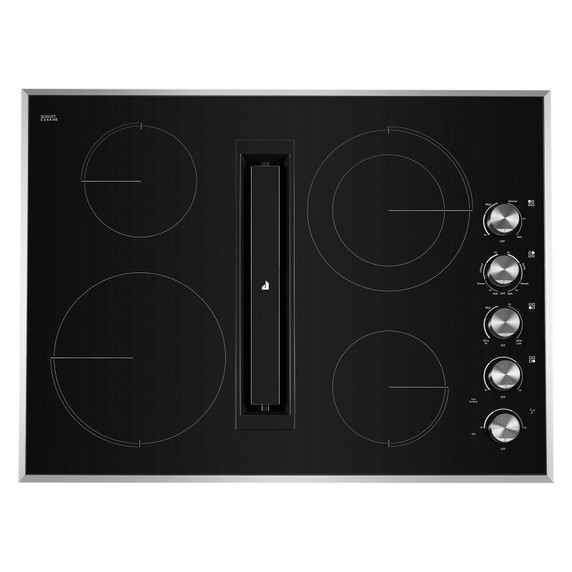

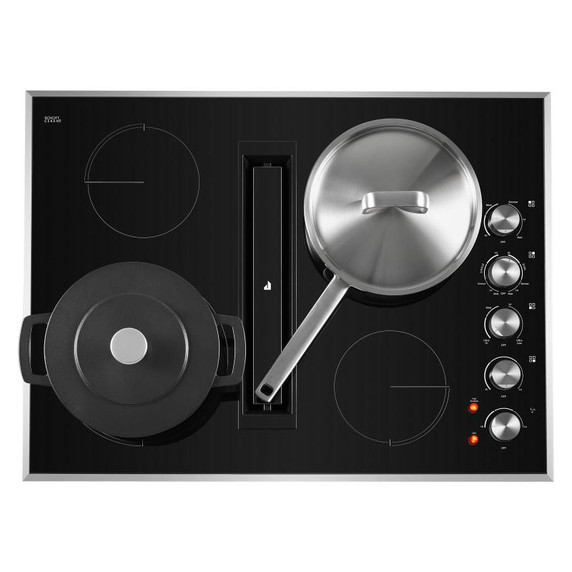

This Jenn-Air® luxury electric radiant downdraft cooktop offers a sleek cooking surface with four radiant elements, which offer responsive performance. It also features the impressive JX3™ downdraft ventilation system, which quickly and efficiently clears
Features
Top 3 Features

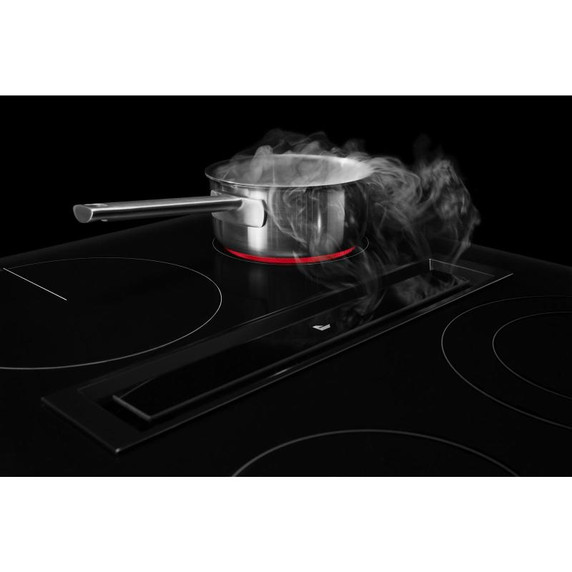

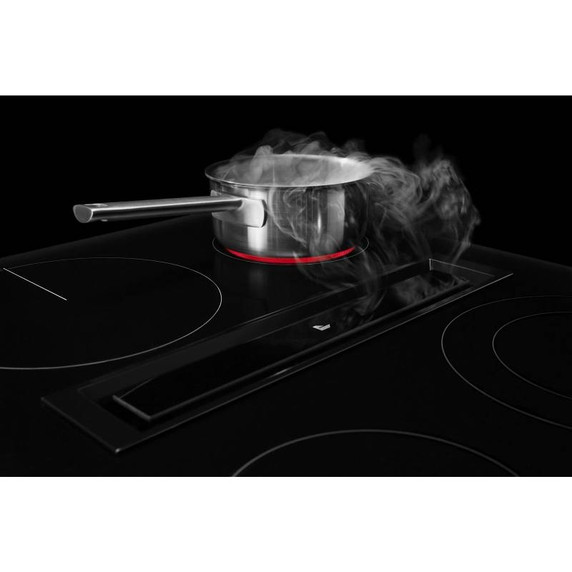

JX3™ Downdraft Ventilation System with 3 SpeedsDeveloped and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.

DuraFinish® Glass ProtectionDuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

Color-Coordinating Die-Cast Metal KnobsRobust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.

Additional Features

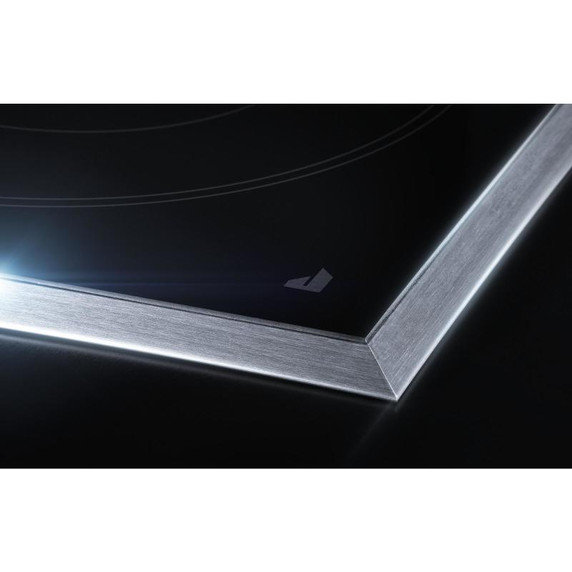

Lustre Brushed Metal DesignBlur the lines of temptation with tight corners of lustrous brushed metal that will leave you reeling.

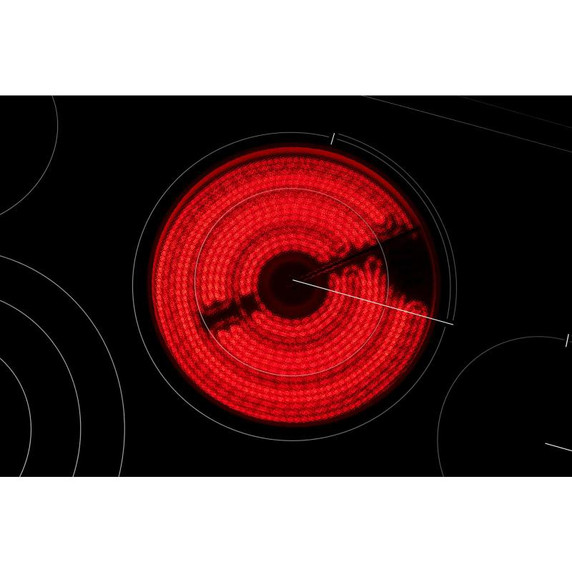

10"/6" Dual-Choice™ elementEnjoy cooking flexibility and efficiency with a two-tiered single element that accommodates various-sized cookware.

Perimetric ExtractionThis sophisticated design is not only attractive, it is the secret behind the ventilation system’s exceptional performance and quiet operation.

Convertible to Duct-Free VentilationKeep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.

Specifications

Specifications

Country Of OriginUSA

Product To Product Pairs

Extended Service Plan ParentEW08IW2Y, EW08IW4Y, EW08IW1Y

Optional AccessoriesW10355051B, W10620783, W10177003

Certifications

ULYes

ADA CompliantYes

Cooktop Details

Right Rear Element Burner TypeDual

Cooktop Element StyleCeran

Left Rear Element Burner Size6in.

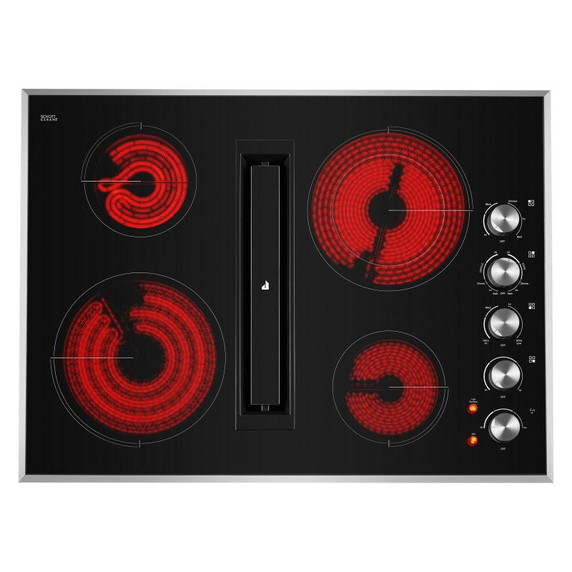

Number Of Cooking Element Burners4

Right Front Element Burner Size6in.

Right Front Element Burner TypeStandard

Left Front Element Burner TypeHigh Output

Left Rear Element Burner TypeHigh Output

Left Rear Element Burner Power1300W

Left Front Element Burner Power3200W

Left Front Element Burner Size10in.

Right Front Element Burner Power1200W

Right Rear Element Burner Power3000W/1400W

Right Rear Element Burner Size10in./6in.

Features

Heating Element On Indicator LightYes

GriddleN/A

Hot Surface Indicator LightYes

Power Outage CompatibleNo

LP ConvertibleNo

Automatic Pan DetectionNo

Digital DisplayNo

Power BoostNo

Downdraft VentYes

Installs Over Built In OvenNo

Description

Size In30

Cooktop TypeDowndraft

Electrical

Power Cord IncludedNo

Amps40

Volts220

Controls

Control TypeManual

Knob TypeMetal

Control LocationSide

Design Type

Design ExpressionStainless Steel

Configuration and Overview

Fuel TypeElectric Radiant

Ventilation System

Cfm Motor Class310

Dimensions

Depth22.06"

Height3.66"

Maximum Height18.72"

Net Weight70.0 lbs.

Width30.88"

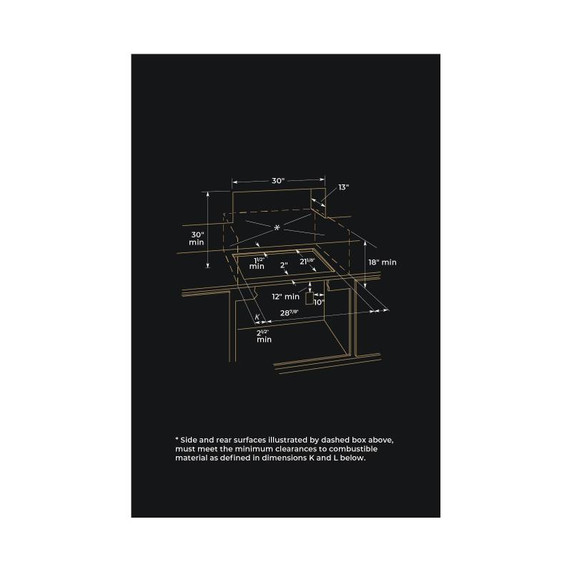

Cutout Depth21.13"

Cutout Width28.88"

Carton Depth Inch26.38

Carton Height Inch23.78

Carton Width Inch35.12
