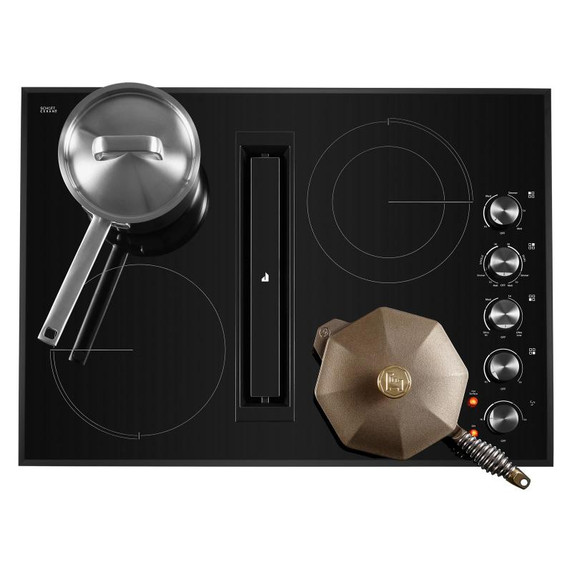

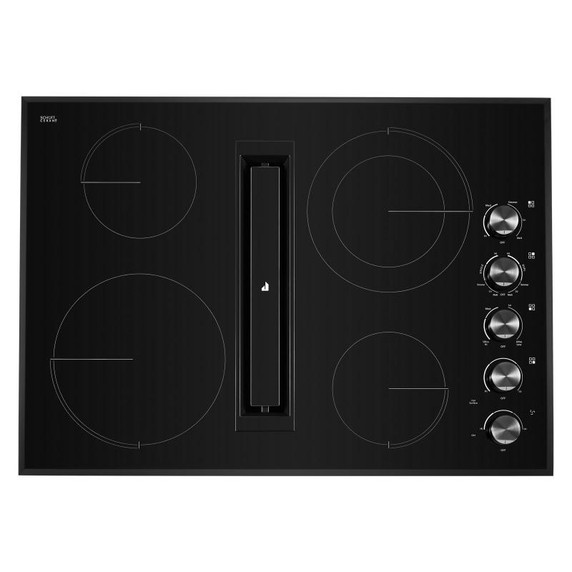

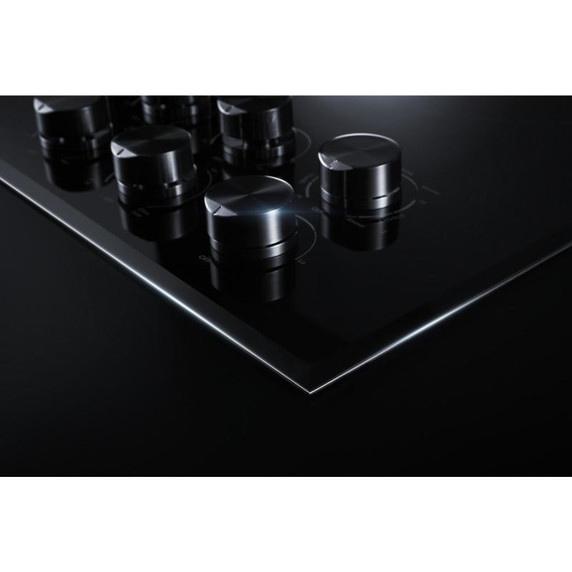

Jennair® 30" JX3™ Electric Downdraft Cooktop JED3430GB
SKU:
JED3430GB
$2,999.99
Please contact us for availability
Print:
Colour:
Black
Cooktop Element Style:
Ceran
Control Location:
Side
Fuel Type:
Electric Radiant
This Jenn-Air® luxury electric radiant downdraft cooktop offers a sleek cooking surface with four radiant elements, which offer responsive performance. It also features the impressive JX3™ downdraft ventilation system, which quickly and efficiently clears the air without a hood.
Features
Top 3 Features

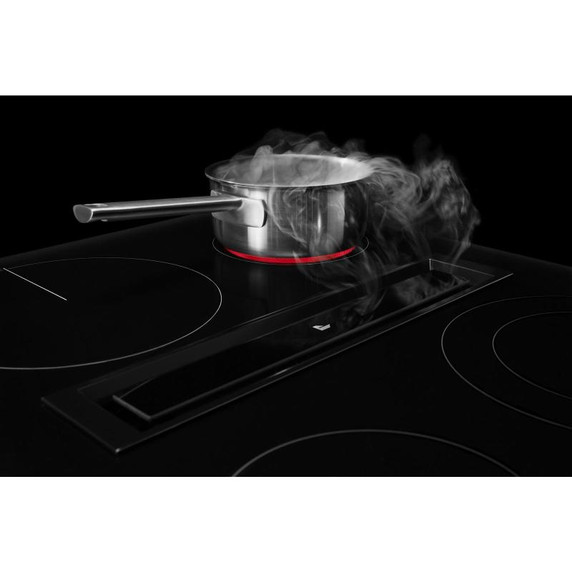

JX3™ Downdraft Ventilation System with 3 SpeedsDeveloped and refined by JennAir®, downdraft ventilation uses proximity ventilation that captures smoke, steam and odors at the cooking surface, whisking them down and out for a fresher, cleaner kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 310 CFM blower system.
DuraFinish® Glass ProtectionAn integrated protective finish that resists scratching to help keep the ceramic glass cooktop's surface looking like new.
Color-Coordinating Die-Cast Metal KnobsRobust knobs which elegantly complement the cooktop, no matter the style suite.
Additional Features

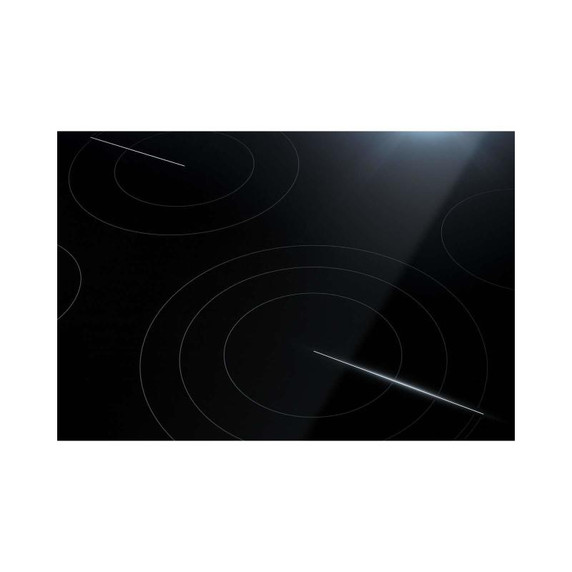

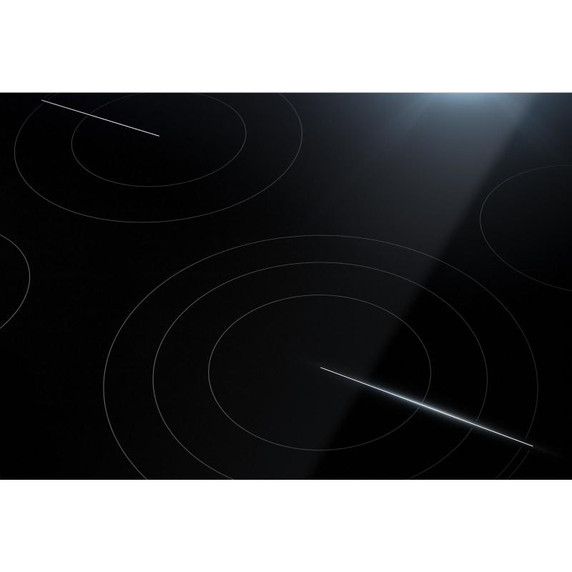

Oblivion Glass DesignSleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

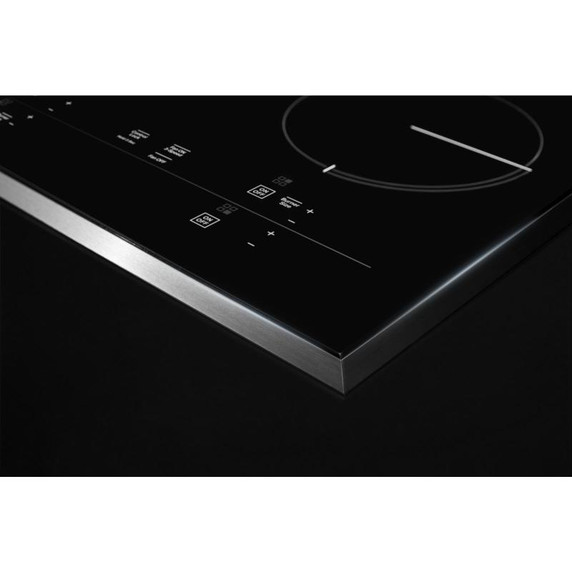

Semi-Flush InstallationSubtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
Perimetric ExtractionEfficiently captures cooking vapors by drawing air through a thin slot, speeding the air and improving ventilation performance.
Convertible to Duct-Free VentilationDowndraft cooktops are manufactured to be used with ductwork, but this option enables conversion of the JX3™ downdraft cooktop to be used with a duct-free system.

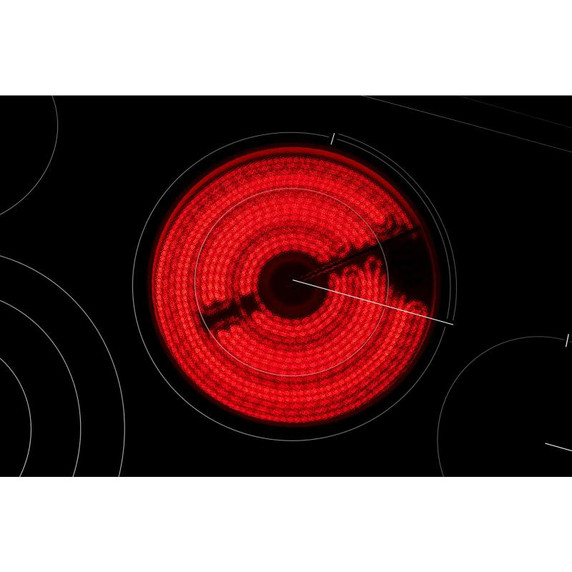

10-Inch, 3,200-Watt ElementA large element that heats the entire element surface at both high and low temperatures while providing precise control by cycling power to one or both of the nested elements to support a range of high-temperature cooking techniques.
10"/6" Dual-Choice™ Element (3,000 Watt)An electric element that features two element sizes at one position and has a maximum heat output of 3,000 watts for greater cooking flexibility.
310 CFM Blower CapacityA single centrifugal blower motor combines with a perimetric design, allowing this ventilation system to operate at just 310 CFM while still meeting the demand of high-output burners or elements.
6-Inch, 1,200-Watt ElementA fast-heating element sealed underneath a ceramic glass cooking surface that offers up to 1,200 watts of power.
6-Inch, 1,300-Watt ElementA fast-heating element sealed underneath a ceramic glass cooking surface that offers a range of power from 300-1,300 watts.
Dishwasher-Safe Air GrillAn intake grill, able to be cleaned in a dishwasher, that captures smoke, grease and cooking odors entering a downdraft ventilation system.
Easy-to-Clean Short PlenumHidden beneath the air grill, the plenum is the ventilation chamber through which air is drawn. On the JX3™ downdraft cooktop, the unique plenum design is short, making it easy to clean.
Hot Surface IndicatorsLight(s) positioned at the controls instantly show which element is still hot – even if the element has been turned off.

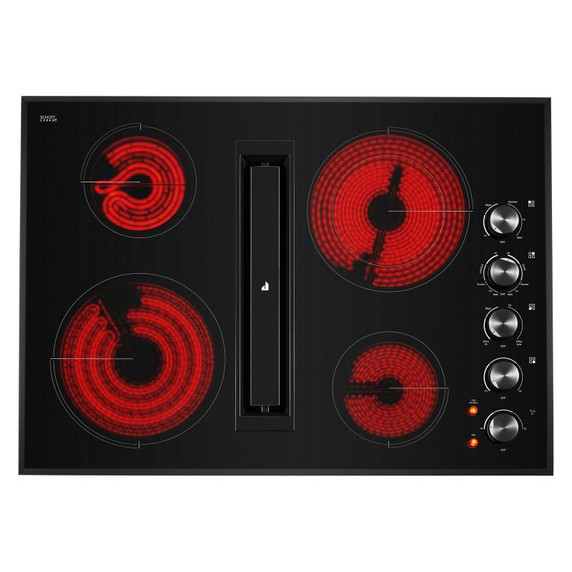

Radiant ElementsFast-heating ribbon elements sealed underneath a ceramic glass cooking surface.
Badasses at the ReadyOur crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.
Serviced by a Select FewWe narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Duct-Free FilterFilter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.
Duct-Free Filter KitThe JennAir® duct-free filter kit allows the Jenn-Air® downdraft system to be installed in virtually any home, even a high-rise or condo, without requiring a major remodel to accommodate ducting.
Specifications
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW08IW1Y, EW08IW4Y, EW08IW2Y
Optional AccessoriesW10620783, W10355051B, W10177003
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Right Rear Element Burner TypeDual
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Right Front Element Burner Size6in.
Right Front Element Burner TypeStandard
Left Front Element Burner TypeHigh Output
Left Rear Element Burner TypeHigh Output
Left Rear Element Burner Power1300W
Left Front Element Burner Power3200W
Left Front Element Burner Size10in.
Right Front Element Burner Power1200W
Right Rear Element Burner Power3000W/1400W
Right Rear Element Burner Size10in./6in.
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo
Downdraft VentYes
Installs Over Built In OvenNo
Description
Size In30
Cooktop TypeDowndraft
Electrical
Power Cord IncludedNo
Amps40
Volts220
Controls
Control TypeManual
Knob TypeMetal
Control LocationSide
Configuration and Overview
Fuel TypeElectric Radiant
Design Type
Design ExpressionBlack Glass
Ventilation System
Cfm Motor Class310
Dimensions
Depth22.06"
Height3.66"
Maximum Height18.72"
Net Weight70.0 lbs.
Width30.88"
Cutout Depth21.13"
Cutout Width28.88"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch35.12
