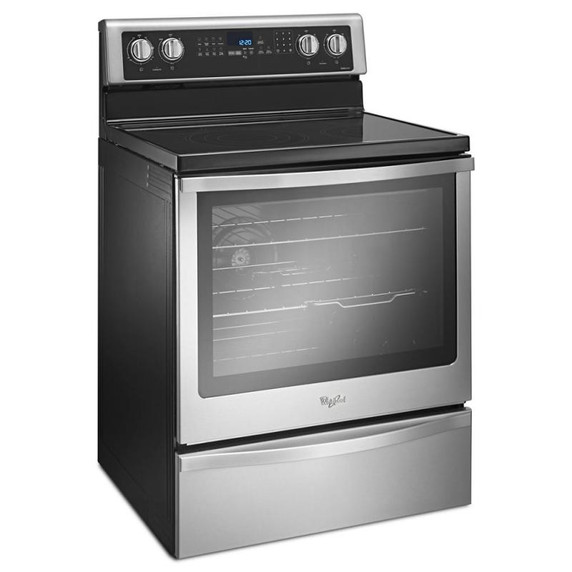

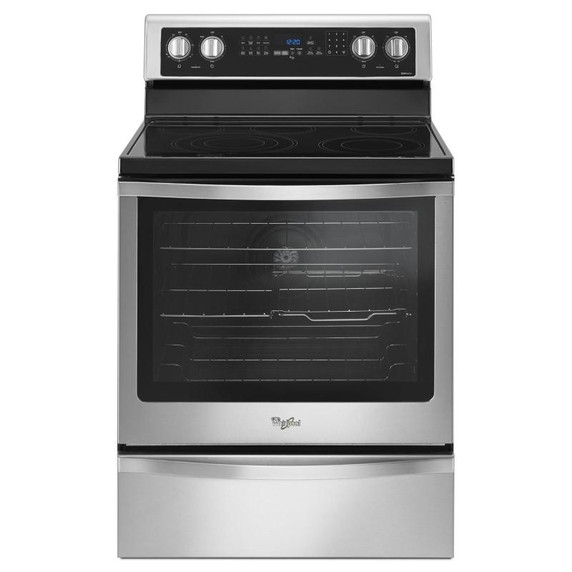

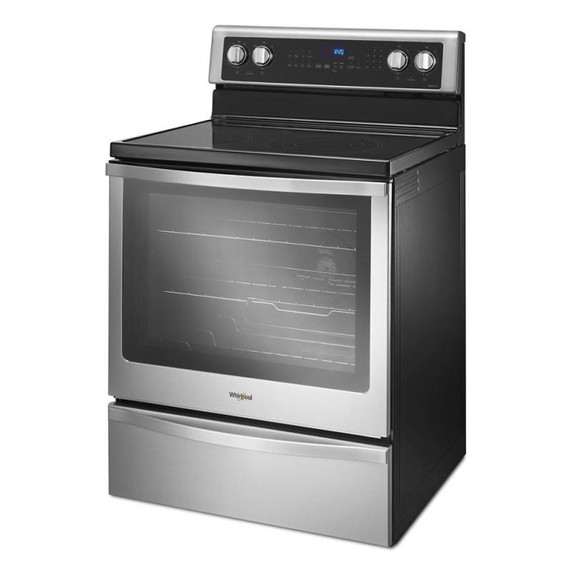

Whirlpool® 6.4 Cu. Ft. Freestanding Electric Range with True Convection YWFE745H0FS
Whirlpool
Whirlpool® 6.4 Cu. Ft. Freestanding Electric Range with True Convection YWFE745H0FS

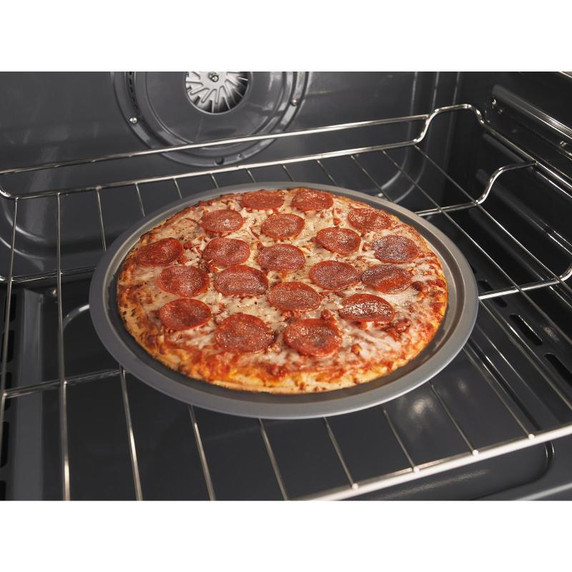

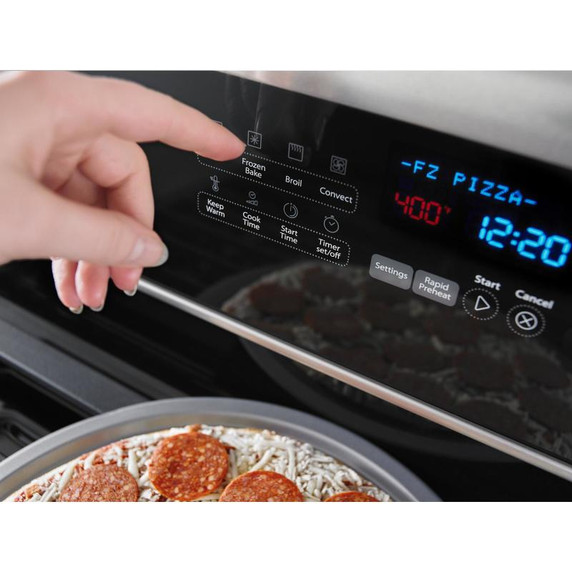

Frozen Bake™ TechnologySkip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.

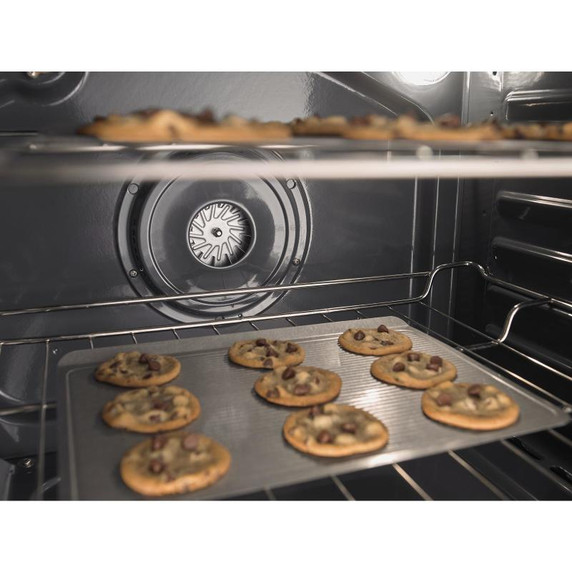

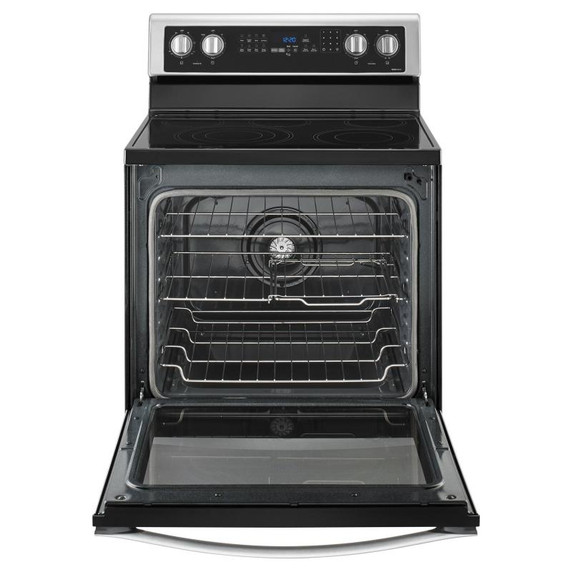

True Convection CookingTrue convection cooks food faster by using a rear fan and third heating element to circulate hot air over, under, and around food.

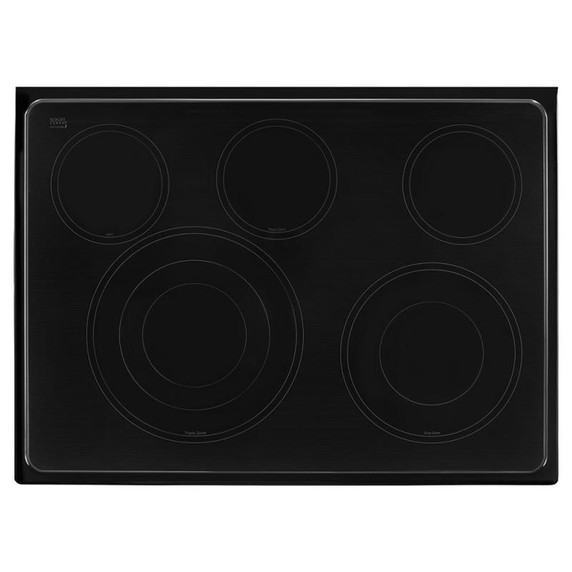

FlexHeat™ Triple Radiant ElementThe FlexHeat™ triple radiant element is like having three elements in one. A 6" inner ring is great for smaller pots and pans, while 9" and 12" outer rings make room to heat larger cookware.
Convection ConversionTake the guesswork out of convection cooking with Convection Conversion. It takes the normal cooking time and temperature and turns it into the faster convection equivalent for you.

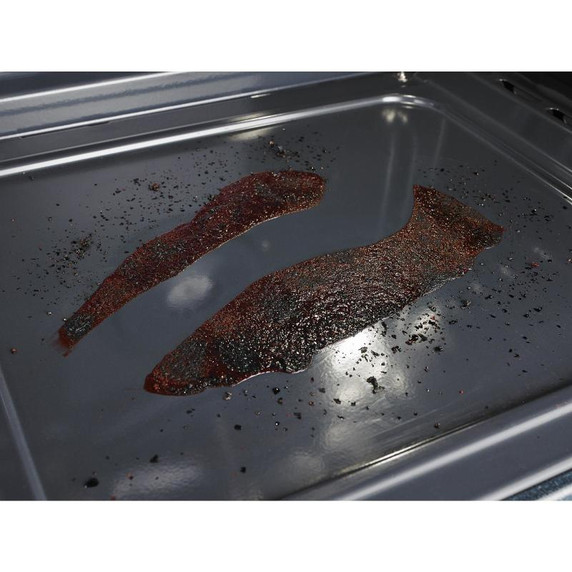

AquaLift® Self-Clean technologyEnjoy odor-free cleaning without harsh chemicals in only 50 minutes.* AquaLift® self-cleaning technology uses only water and low heat to help remove baked-on foods from the bottom of the oven.*Based on average cleaning time of self-clean cycle with water and moderate soils.
Temperature SensorA built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Rapid PreheatSave time when you only need to bake on one rack. Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.

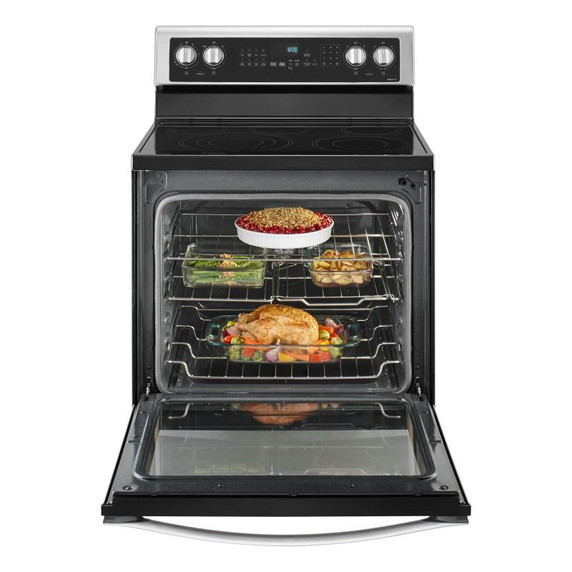

6.4 Cu. Ft. Capacity6.4 Cu. Ft. Capacity
Easy-Wipe Ceramic Glass CooktopEasy-Wipe Ceramic Glass Cooktop
Large Oven WindowLarge Oven Window

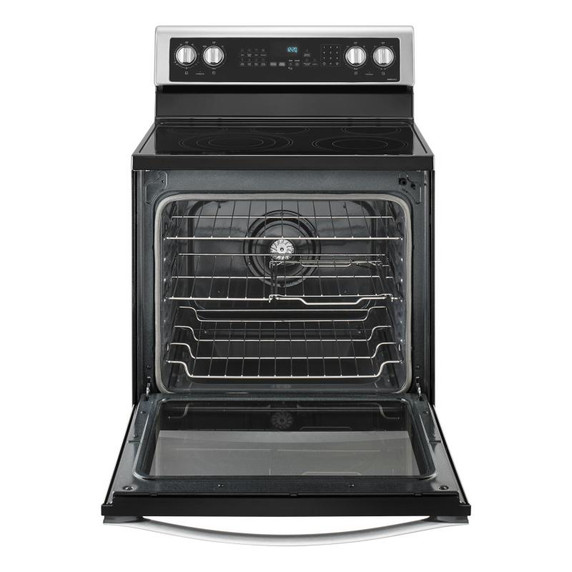

Max Capacity RackMax Capacity Rack
Hidden Bake ElementEasily clean your oven without an exposed bake element in the way.
Dishwasher-Safe KnobsDishwasher-Safe Knobs
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Optional AccessoriesW10355051B
Extended Service Plan ParentEW06IW2Y, EW06IW4Y, EW06IW1Y
Product To Product PairsWVU17UC0JW, WVW57UC0FS, WVU37UC0FS, WVU17UC0JS, UXT4130ADS, WVW53UC0LS, UXT5530AAS, WVW53UC0HV, UVL5430JSS, WVW73UC0LS, WVW51UC0LS, WVU57UC0FS, UXT5230BDS
Electrical
Volts120
Hz60
Power Cord IncludedYes
Amps40
Certifications
ULYes
ADA CompliantNo
CULYes
Energy Rating Kwh Year590
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle

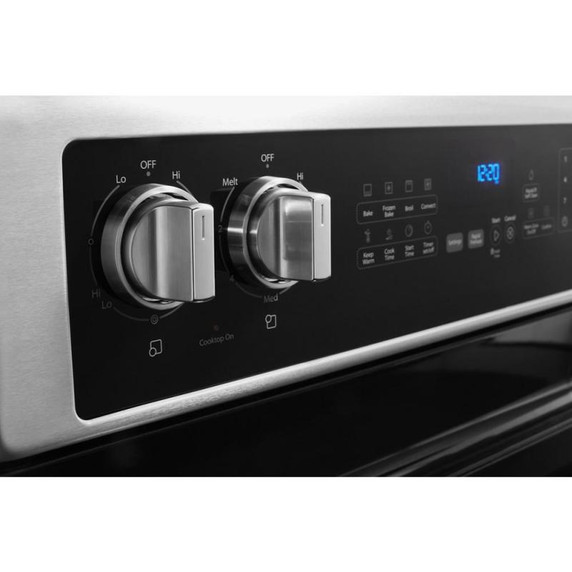

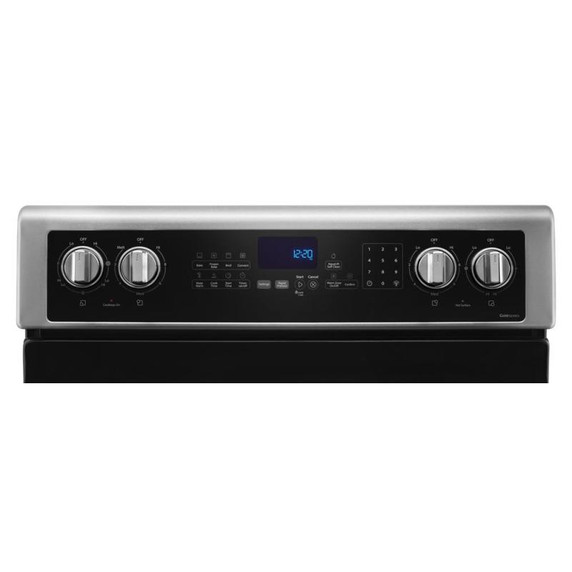

Controls
Knob TypeWeighted
Electronic Display TypeDigital
Knob ColorBlack Stainless
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
LP ConvertibleNo
Natural Gas ConvertibleNo
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Cooktop Details
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Rear Element Burner Size6in.
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Left Front Element Burner Size12in./9in./6in.
Right Front Element Burner TypeStandard Radiant
Cooktop Control LocationBackguard
Left Rear Element Burner TypeStandard Radiant
Right Rear Element Burner TypeStandard Radiant
Left Front Element Burner TypeStandard Radiant
Center Rear Element Burner TypeStandard Radiant
Left Rear Element Burner Power300W/1300W
Details
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Broiler Element Power3600W
Interior ColorGrey
Cooktop Surface MaterialGlass
Number Of Oven Lights1
Oven Light TypeIncandescent

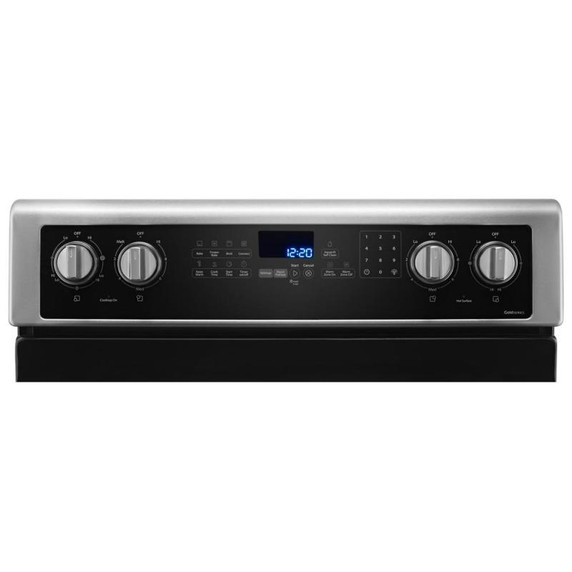

Oven Control TypeElectronic Touch
Number Of Oven Racks3
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Number Of Rack Guides7
Convection Element TypeTrue
Oven Interior Depth In Inches20.75
Oven Interior Width In Inches24.38
Oven Rack Type2 Standard and 1 Max Capacity
Bake Element Power3600W
Convection Element Power Watts925
Oven Cleaning TypeAquaLift® Self-Clean
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Range TypeFreestanding
Energy
Annual Energy Usage Kwh590
Refinements
Whr RangeBladed Knob; EZ-2-Lift™ Hinged Grates; FlexHeat™ Dual Element; FlexHeat™ Triple Radiant Element; Frozen Bake™ Technology; Sabbath Mode/Star-K Certification; Self-Cleaning; True Convection; Whirlpool Handle
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth With Door Open 90 Degree47.81"
Depth27.75"
Gross Weight187.0 lbs.
Height46.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)6.4
