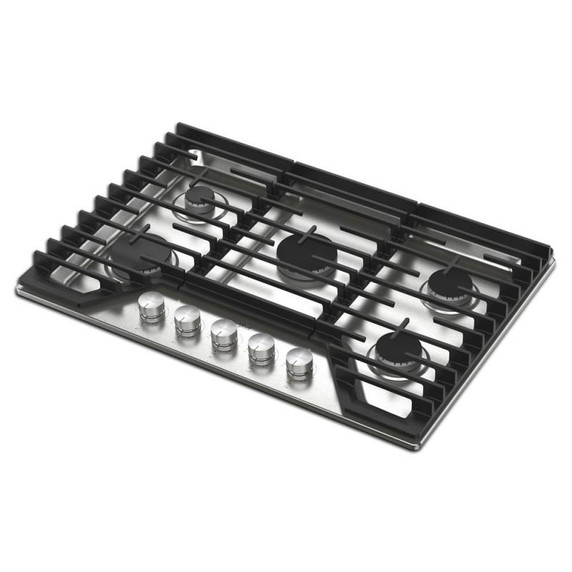

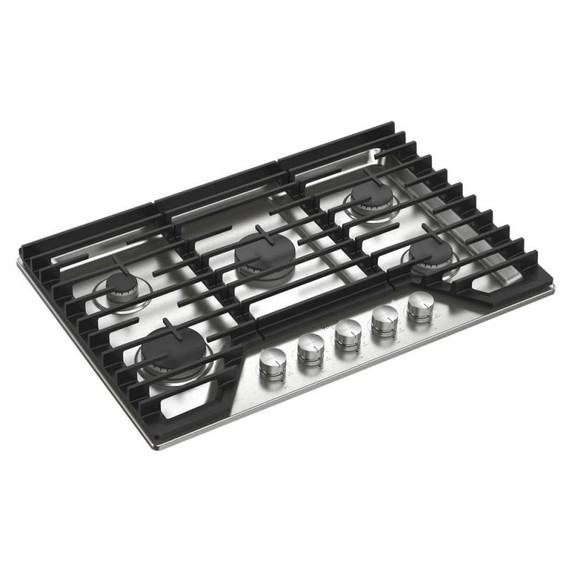

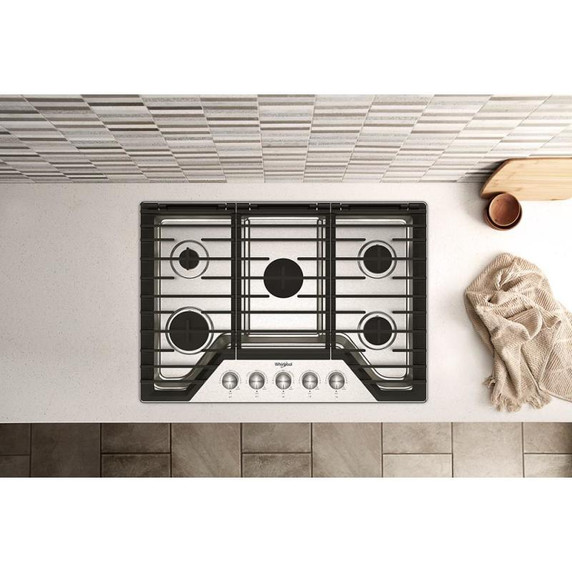

Whirlpool® 30-inch Gas Cooktop with Fifth Burner WCGK7030PS
Specifications
Country Of OriginUSA
Optional AccessoriesW10685483
Extended Service Plan Parent
Product To Product Pairs
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantYes

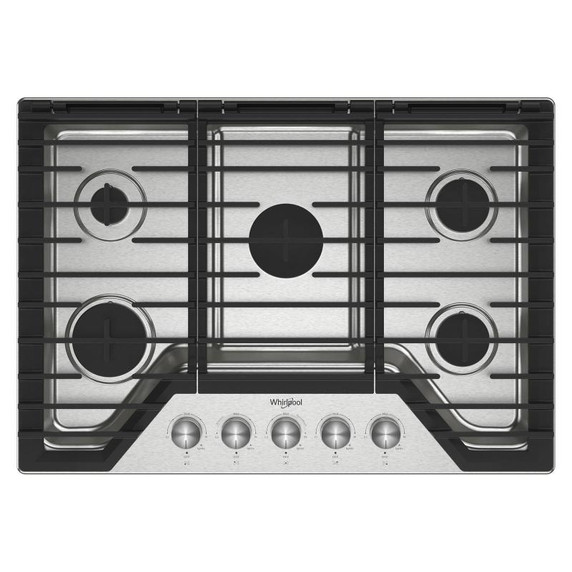

Cooktop Details

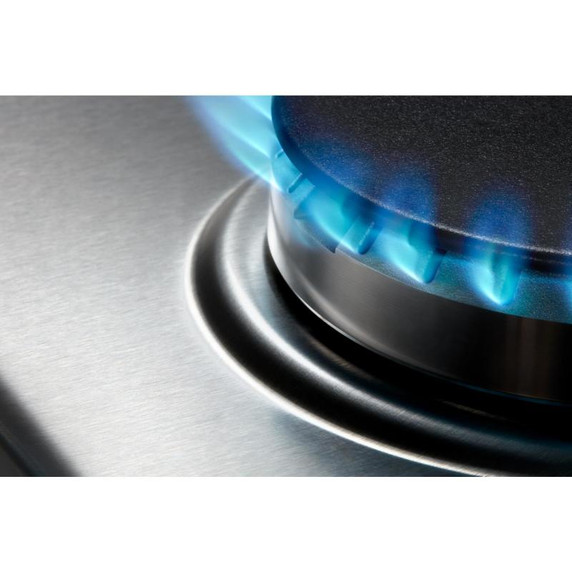

Cooktop Element StyleSealed Burners
Cooktop ConfigurationAll Burners
Right Rear Element Burner TypeStandard
Left Front Element Burner Power12000BTU
Left Rear Element Burner TypeSimmer
Number Of Cooking Element Burners5
Right Rear Element Burner Power9100BTU
Left Front Element Burner TypeStandard
Right Front Element Burner TypeStandard
Left Rear Element Burner Power5000BTU
Right Front Element Burner Power9100BTU
Center Element Burner Power18000BTU
Features
Hot Surface Indicator LightNo
GriddleN/A
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Automatic Pan Size AdjustmentNo
Description
Size In30
Combinations With OvenWOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7

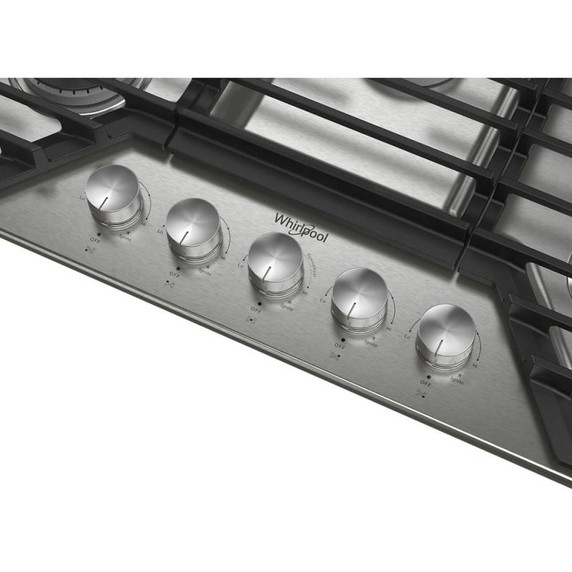

Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Configuration and Overview
Fuel TypeGas
Compatibility
Connectivity

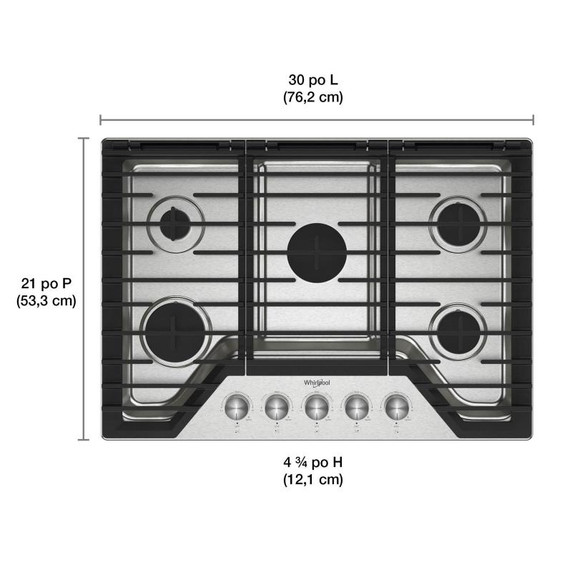

Depth21.0"
Height5.13"
Maximum Height5.13"
Minimum Height5.13"
Net Weight60.14 lbs.
Width30.0"
Cutout Depth20.0"
Cutout Width29.56"
Carton Depth Inch24.96
Carton Height Inch12.99
Carton Width Inch34.68
