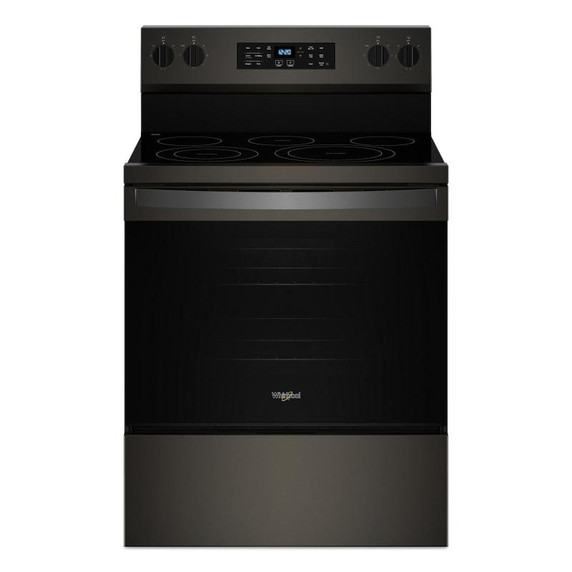

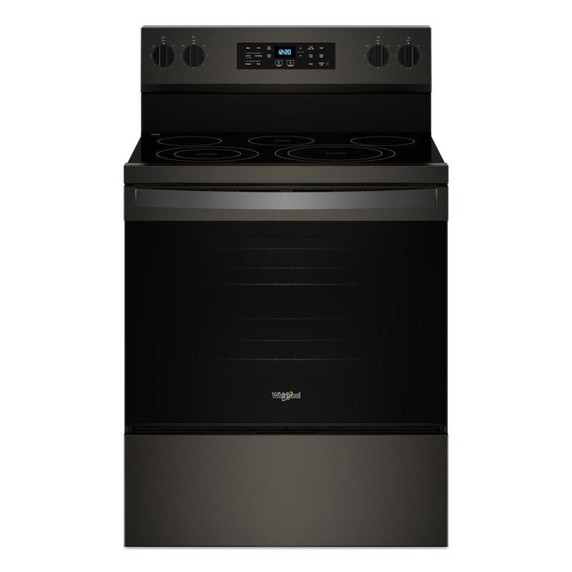

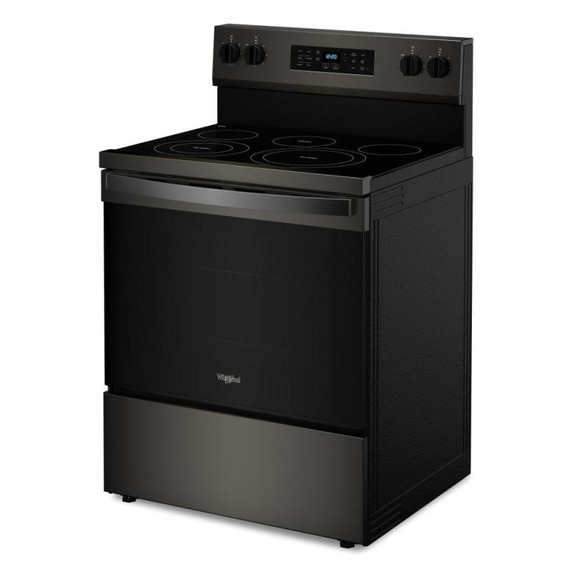

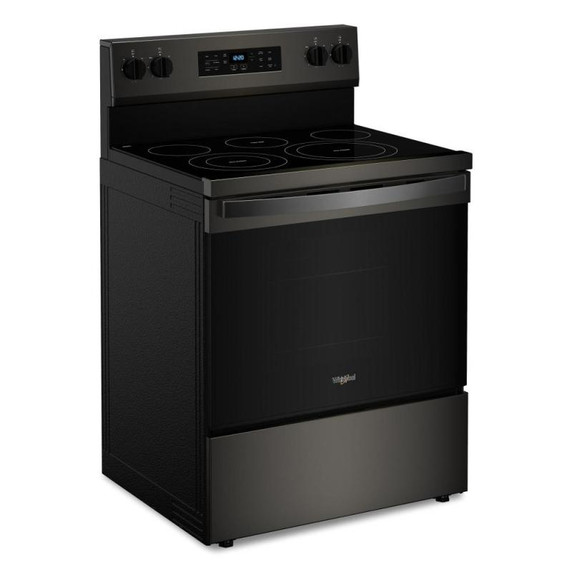

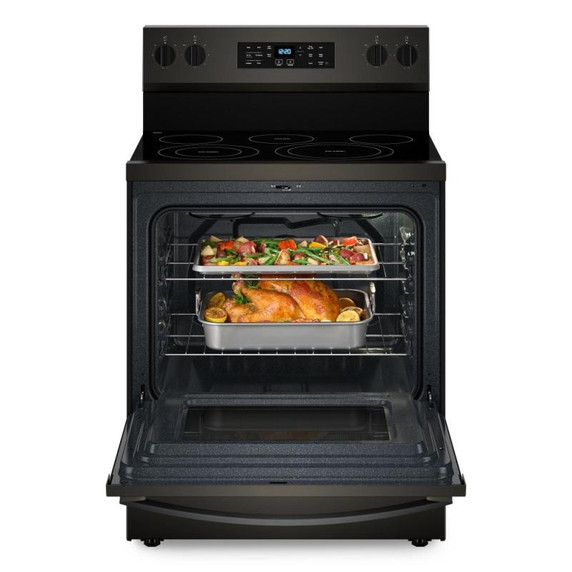

Whirlpool® 30-inch Electric Range with Air Fry and Air Baking, Self Cleaning, Rapid Preheat 5.3 CuFt Capacity YWFES5030RV
Whirlpool
Whirlpool® 30-inch Electric Range with Air Fry and Air Baking, Self Cleaning, Rapid Preheat 5.3 CuFt Capacity YWFES5030RV
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11692811, W10355051B, 4396096RB
Electrical
Volts120
Hz60
Power Cord IncludedYes
Amps40
Watts7
Certifications
ULYes
ADA CompliantNo
CULYes
Star K CertifiedKosher Consumer Friendly
Energy Rating Kwh Year598
Exterior
Handle MaterialMetal
Door RemovableYes
Handle ColorBlack Stainless
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle

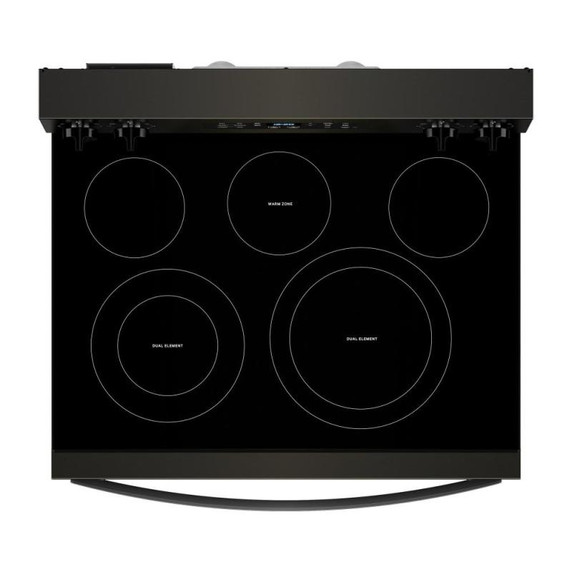

Cooktop Details

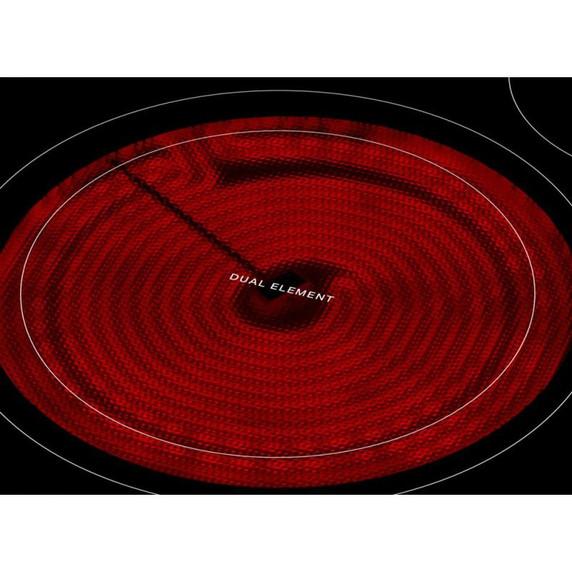

Left Front Element Burner TypeDual
Right Front Element Burner TypeDual

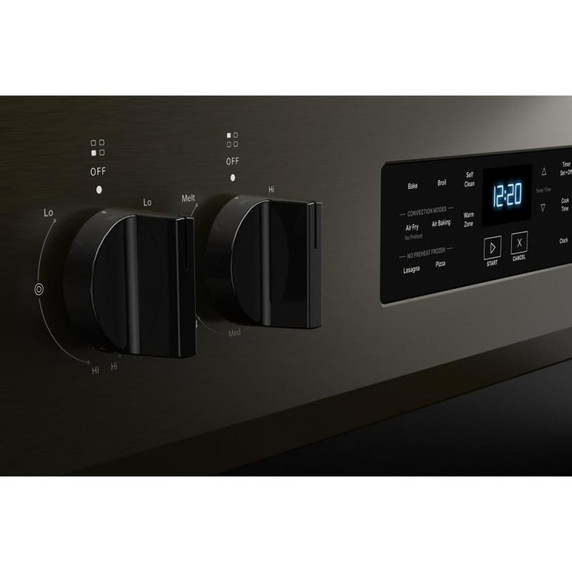

Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming

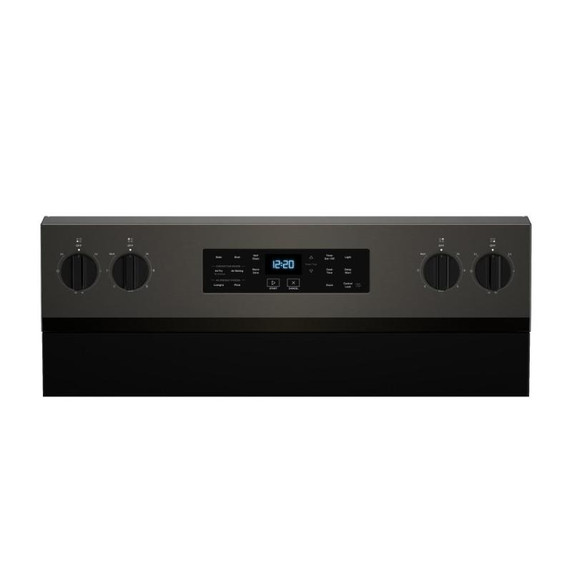

Cooktop Control LocationBackguard
Right Front Element Burner Power3000W/1900W
Left Front Element Burner Power3000W/1400W
Right Front Element Burner Size12in./9in.
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
GriddleNo, Optional Accessory
Configuration
Oven ConfigurationSingle Oven
Details
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Number Of Rack Guides5
Oven Cooking SystemConvection
Bake Element Power2400W
Broiler Element Power3400W
Cooktop Surface MaterialGlass
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Broiler LocationTop Center
Convection Element TypeFan
Oven Control TypeElectronic Touch
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Convection FunctionsBake; Broil
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Range TypeFreestanding
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack Stainless
Compatibility
Connectivity
Works With
Energy
Annual Energy Usage Kwh598
Carton Depth29.0"
Carton Height49.0"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.69"
Depth27.75"
Gross Weight183.0 lbs.
Height47.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.3
