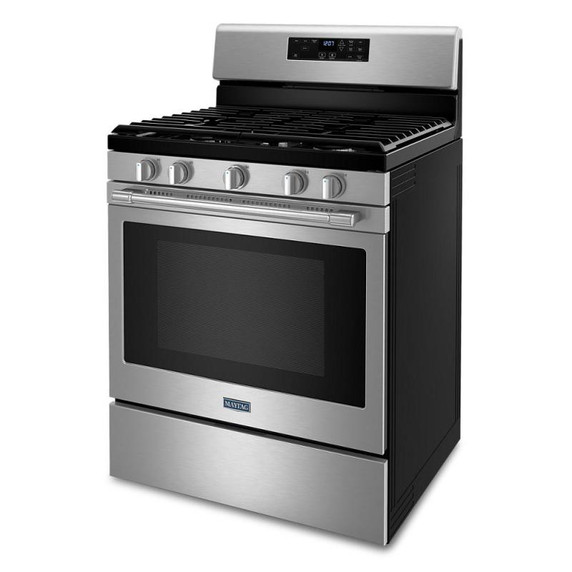

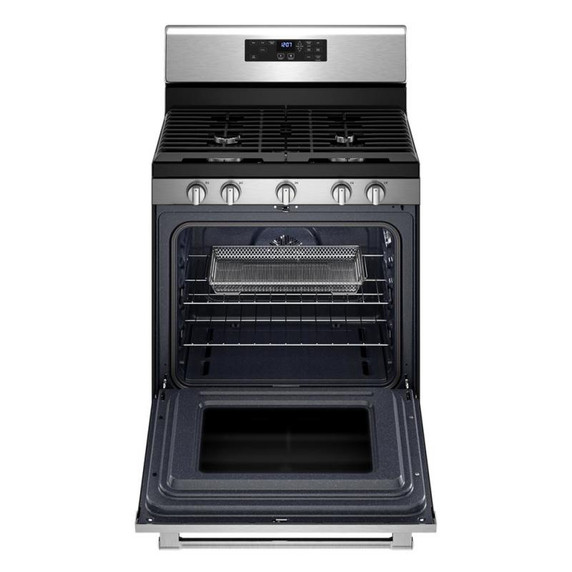

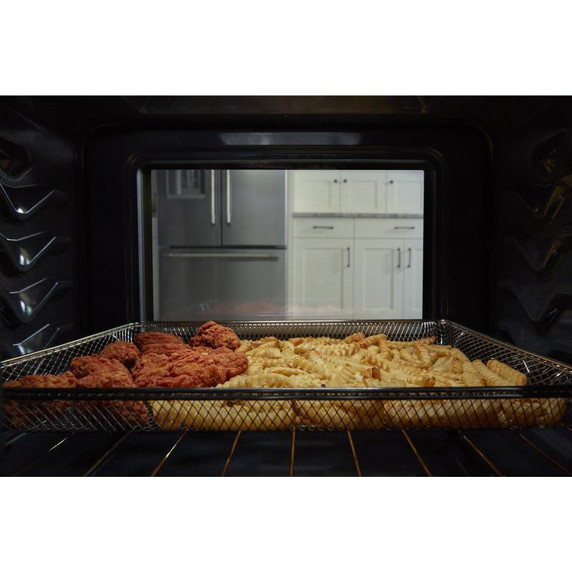

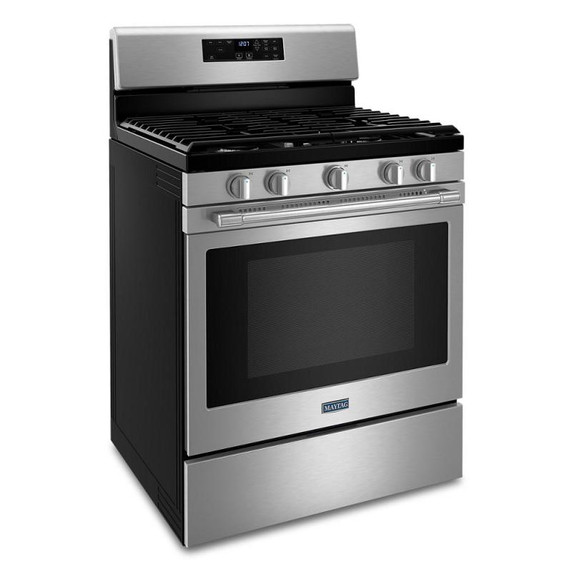

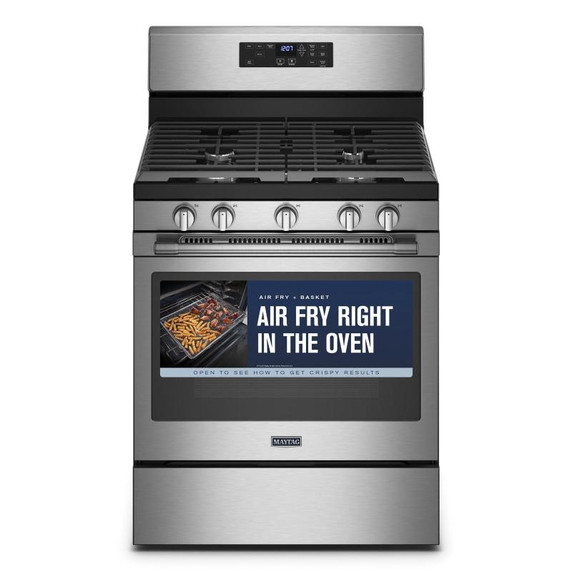

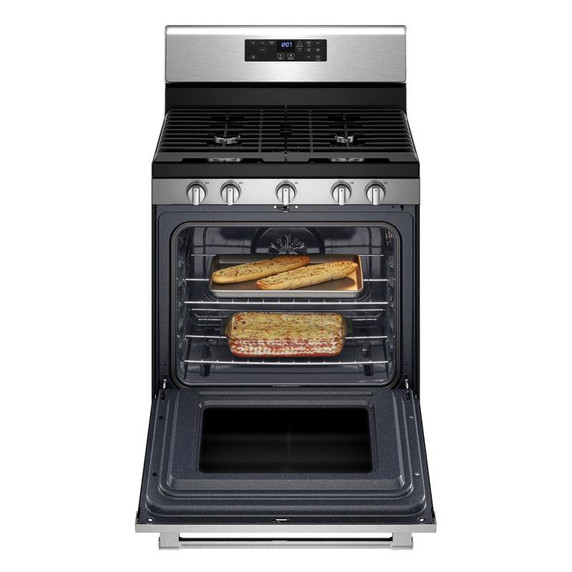

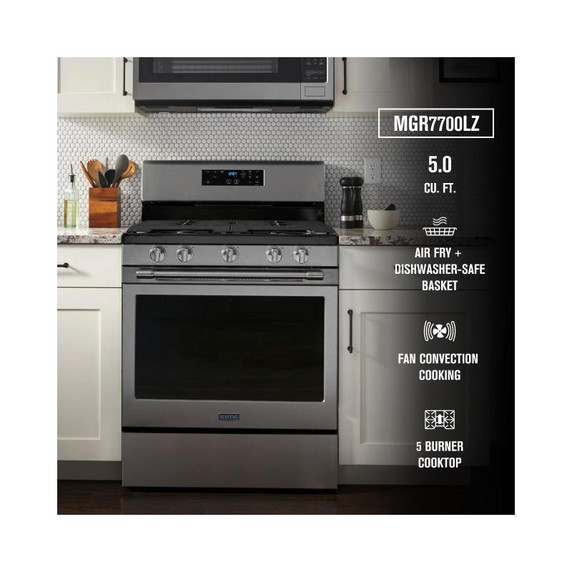

Maytag® Gas Range with Air Fryer and Basket - 5.0 cu. ft. MGR7700LZ
Specifications
Country Of OriginUSA

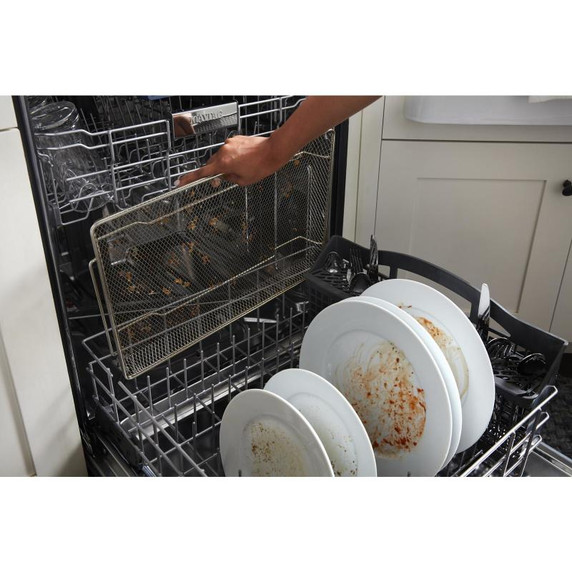

Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Optional Accessories4396096RB
Extended Service Plan ParentEW06IW2Y, EW06IW4Y, EW06IW1Y
Product To Product PairsUXT5530AAS, WVU37UC0FS, WVW57UC0FS, WVU57UC0FS, WVU17UC0JW, UVL5430JSS, WVU17UC0JS
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantNo
CULYes
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes

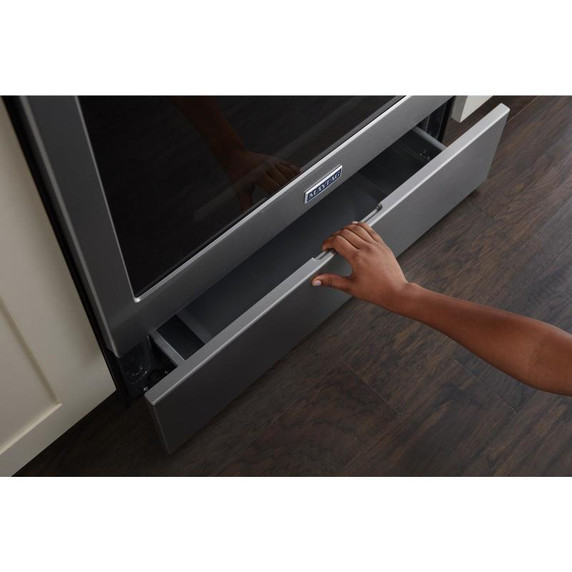

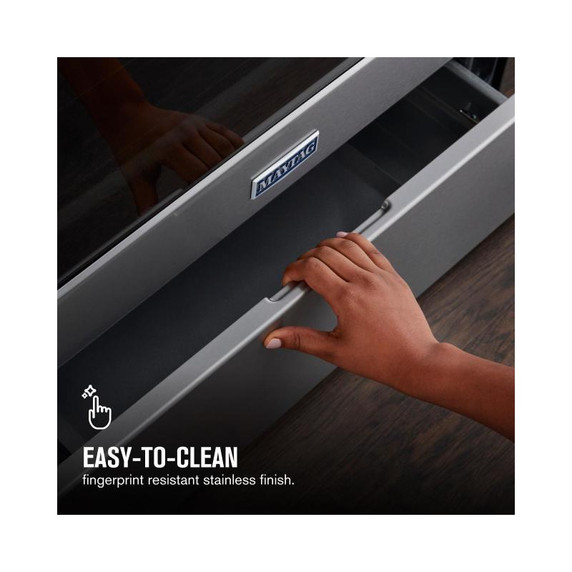

Drawer TypeStorage Drawer
Handle TypeReach-Through Handle

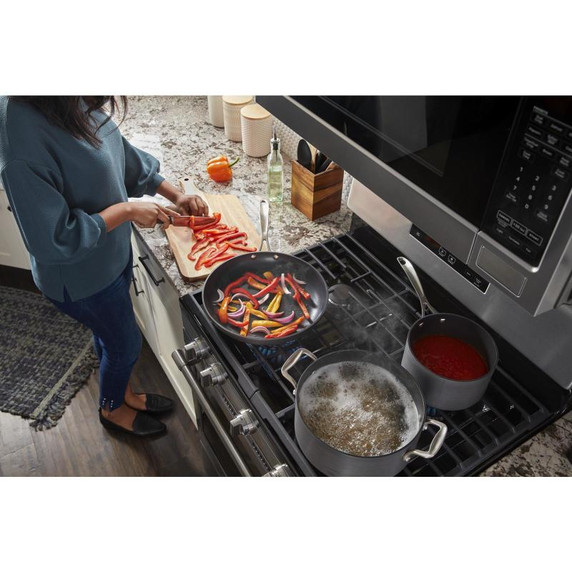

Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront

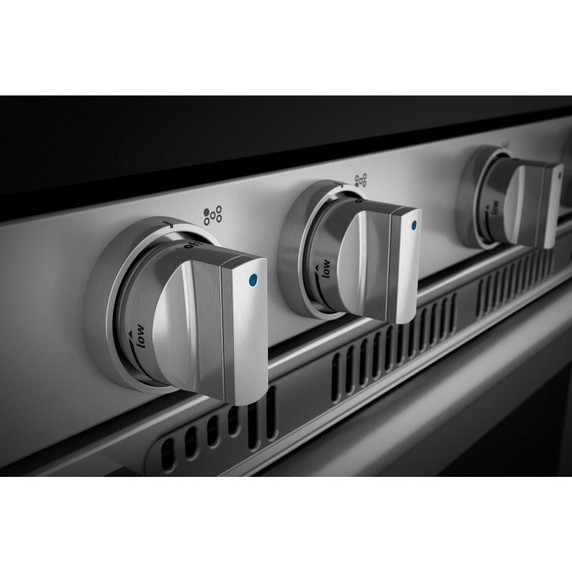

Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Number Of Grates3
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Center Front Element Burner TypeStandard
Left Front Element Burner Power15000BTU
Left Front Element Burner TypeHigh Output
Right Front Element Burner Power15000BTU
Auto Re IgnitionNo
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Right Front Element Burner TypePower
Ignition TypeDirect Spark Ignition
Center Front Element Burner Power8000BTU
Grate DetailsContinuous; Dishwasher Safe; Matte Finish; Porcelain Coated Cast Grates
Features
Heating Element On Indicator LightYes
LP ConvertibleYes
Hot Surface Indicator LightYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
GriddleNo, Optional Accessory
Total Gas Btus Oven S26,500
Total Gas Btus Cooktop52,500
Details
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Interior ColorBlack

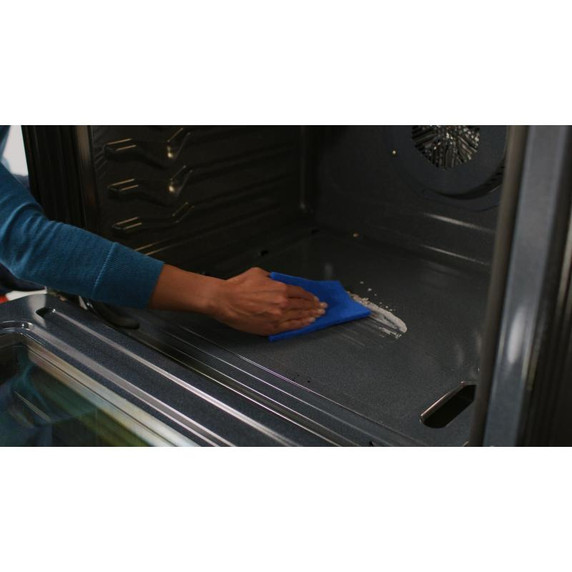

Oven Cleaning TypeSelf-Clean
Oven Control Knob ColorStainless Steel
Number Of Oven Racks2
Number Of Rack Guides5
Oven Cooking SystemConvection
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Convection Element TypeFan

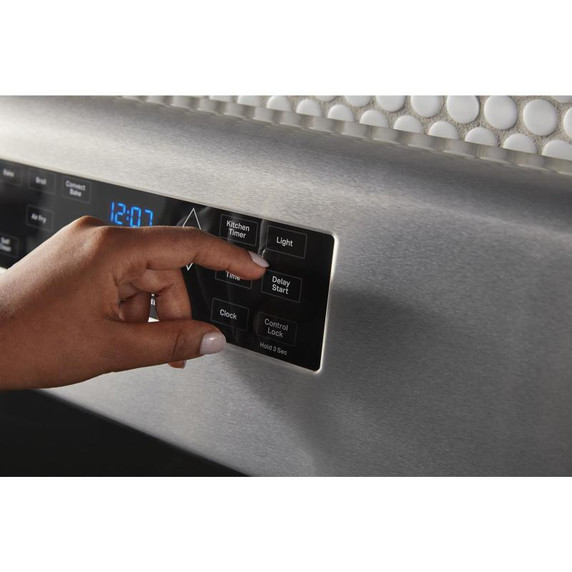

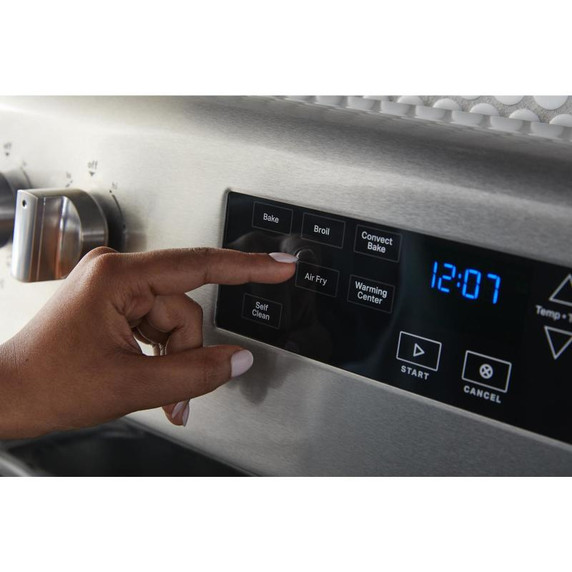

Oven Control TypeElectronic Touch
Convection FunctionsBake
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Oven Light Switch LocationTop of Console
Broiler Element Power10000BTU
Description
Size In30
Range TypeFreestanding
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorStainless Steel
Configuration and Overview
Fuel TypeGas
Compatibility
Connectivity
Works With
Refinements

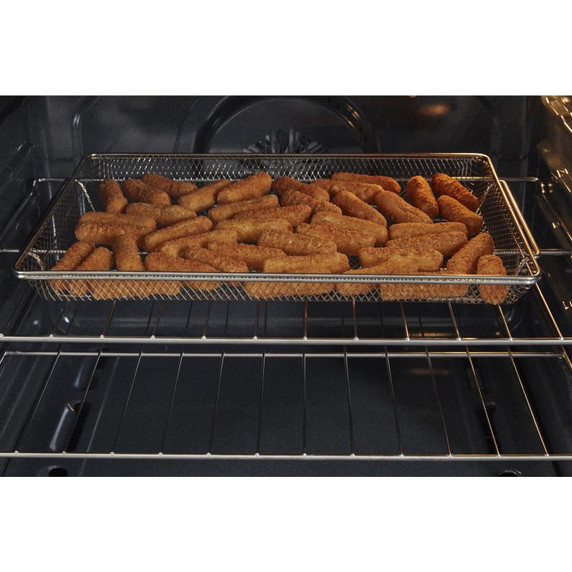

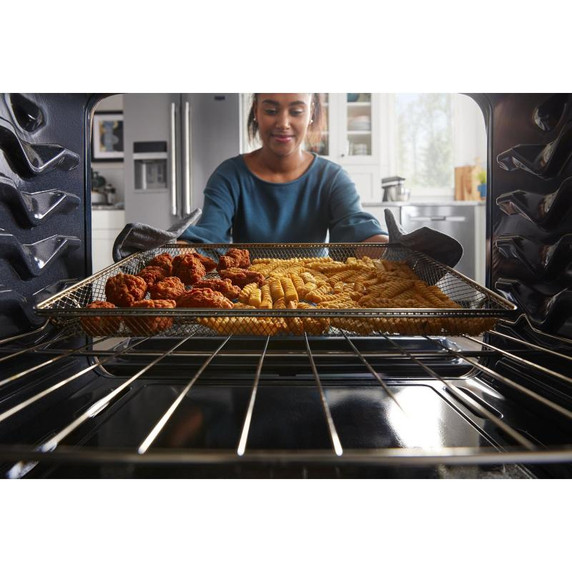

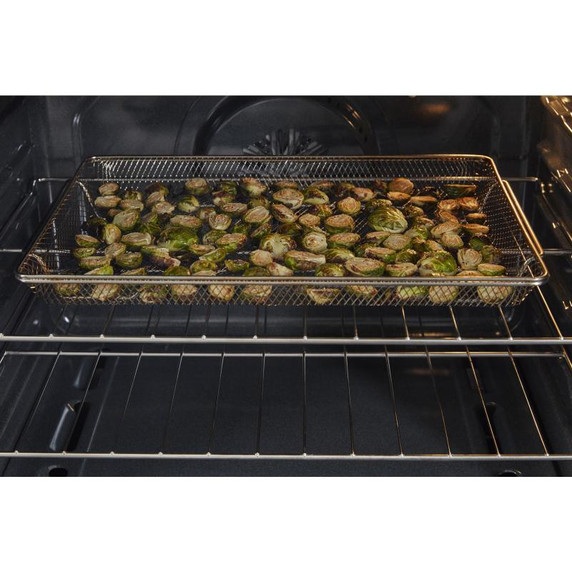

May RangeAir Fry
Carton Depth28.0"
Carton Height48.0"
Carton Width30.0"
Depth Closed Excluding Handles25.44"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.56"

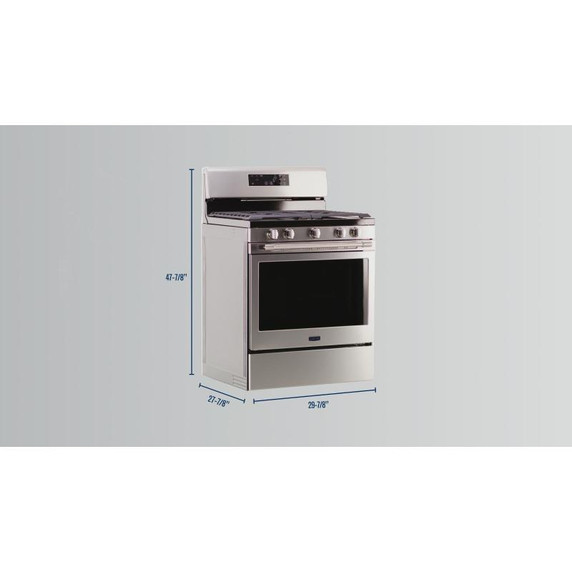

Depth27.88"
Gross Weight160.0 lbs.
Height47.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.0
