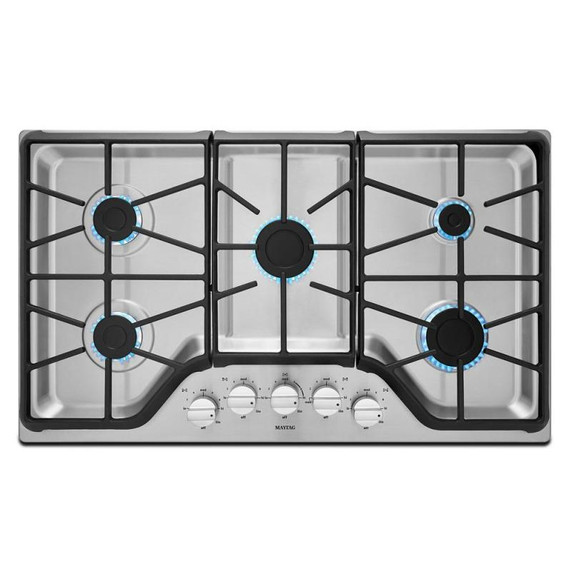

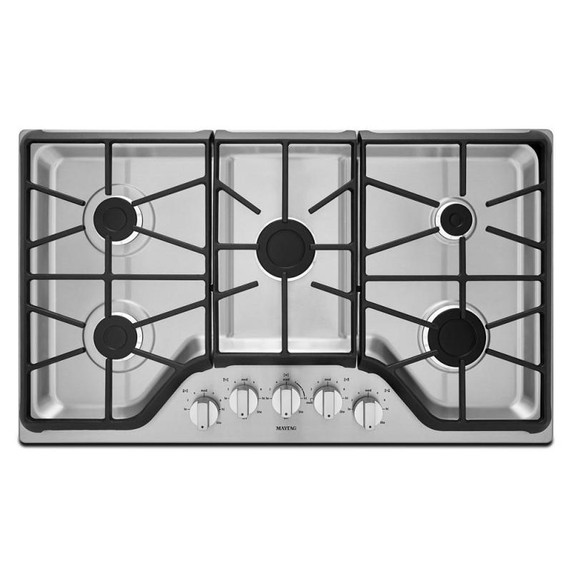

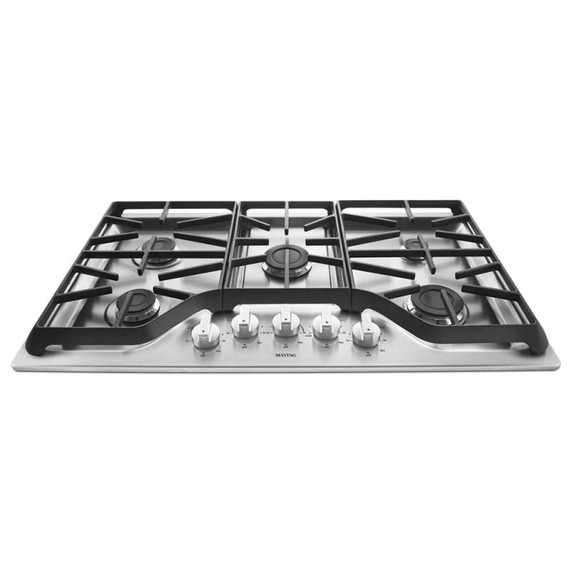

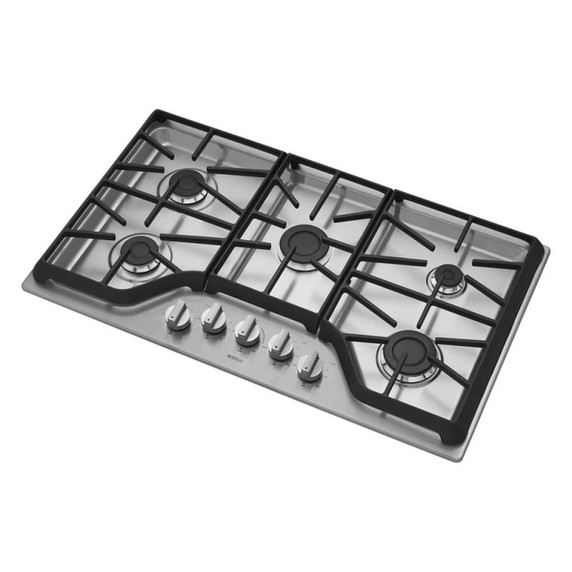

Maytag® 36-inch 5-burner Gas Cooktop with Power™ Burner MGC7536DS
Specifications
Country Of OriginUSA
Product To Product PairsUVL6036JSS
Extended Service Plan ParentEW05IW4Y, EW05IW1Y, EW05IW2Y
Electrical
Volts120
Hz60
Amps15

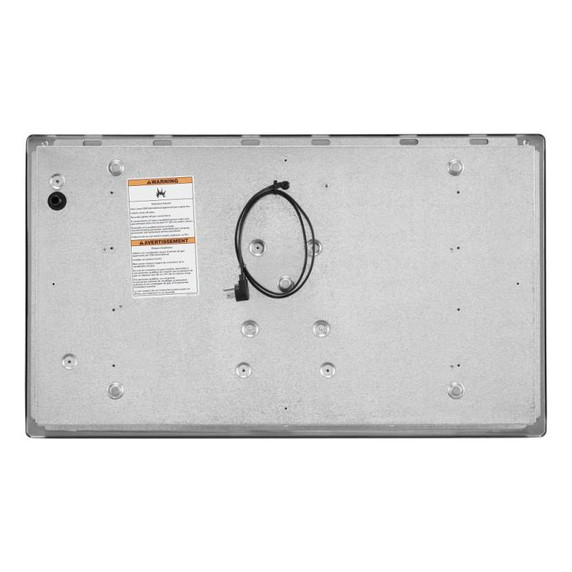

Power Cord IncludedYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Cooktop Element StyleSealed Burners
Left Front Element Burner TypeSealed Burner

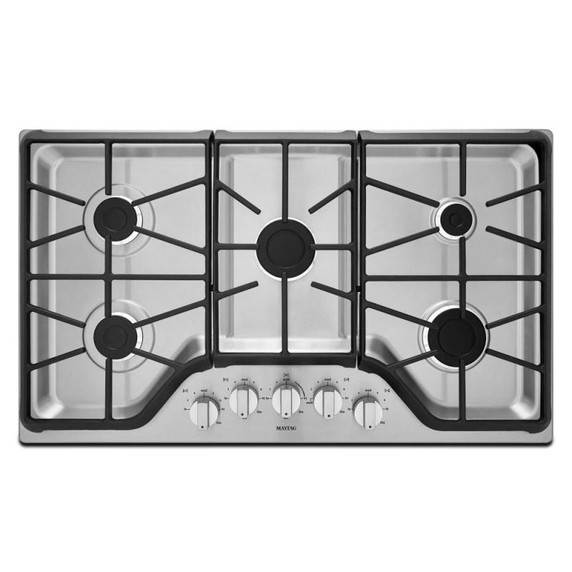

Number Of Cooking Element Burners5
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner Power12000BTU
Right Front Element Burner TypeSealed Burner
Right Rear Element Burner TypeSimmer
Left Front Element Burner Power9100BTU
Left Rear Element Burner Power9100BTU
Right Rear Element Burner Power5000BTU
Center Rear Element Burner Power15000BTU
Features
Hot Surface Indicator LightNo
GriddleN/A
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Description
Size In36
Cooktop TypeTraditional
Combinations With OvenMEW9527; MEW9530

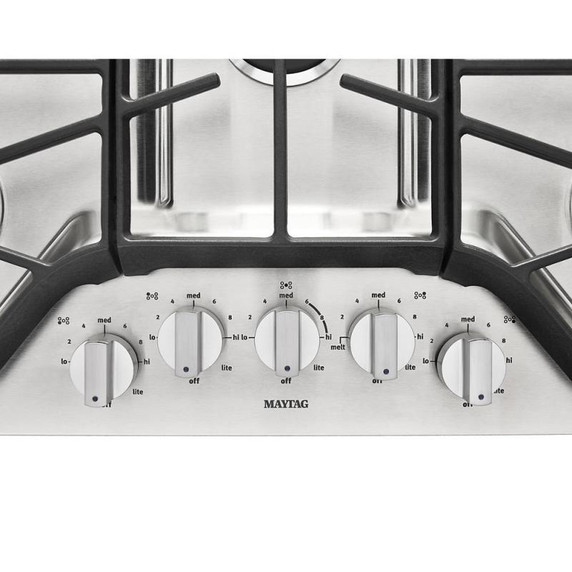

Controls
Control TypeManual
Control LocationFront
Knob TypeDishwasher Safe
Configuration and Overview
Fuel TypeGas
Refinements
May CooktopADA Compliant; Flex-Choice™ Simmer Burner; Power™ Burner

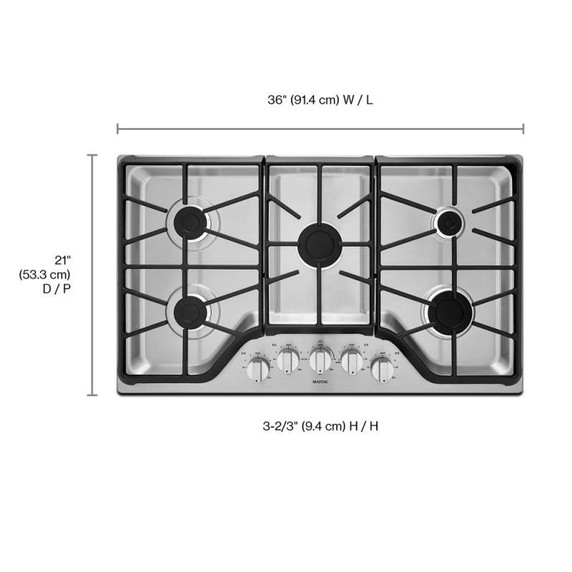

Depth21.0"
Height3.69"
Maximum Height4.0"
Minimum Height3.38"
Net Weight59.6 lbs.

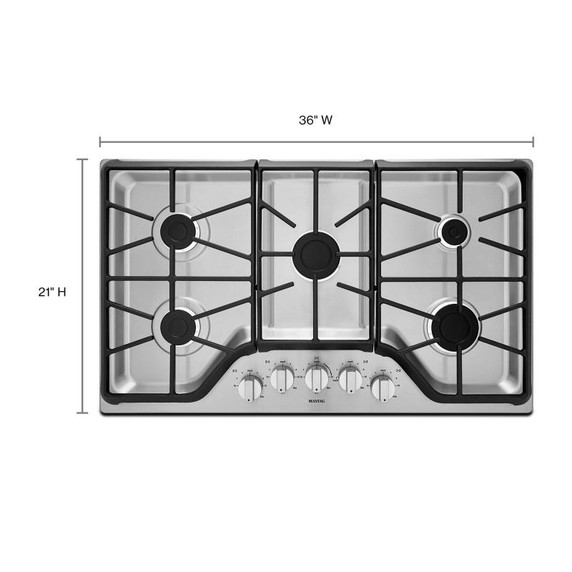

Width36.0"
Cutout Height5.25"
Carton Depth Inch25.0
Carton Height Inch12.04
Carton Width Inch44.41
