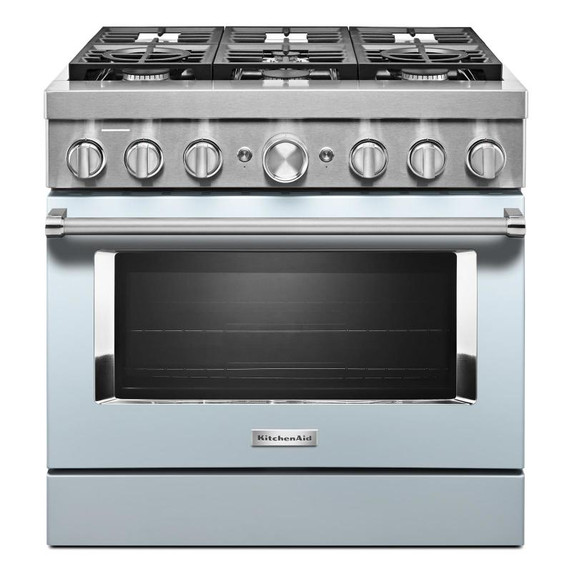

Dual Fuel Rangesatisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.

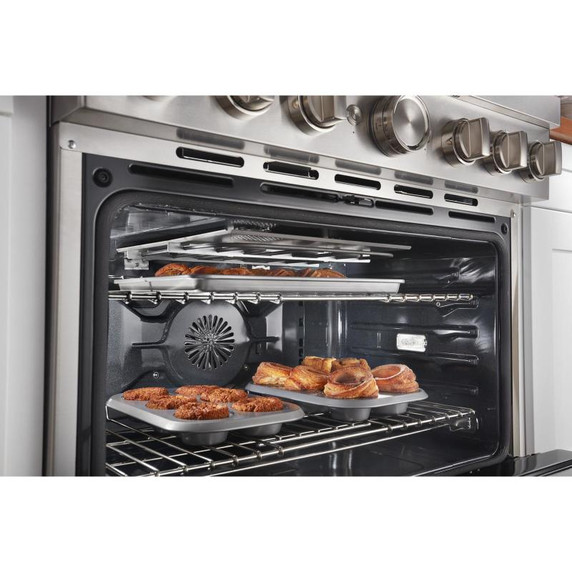

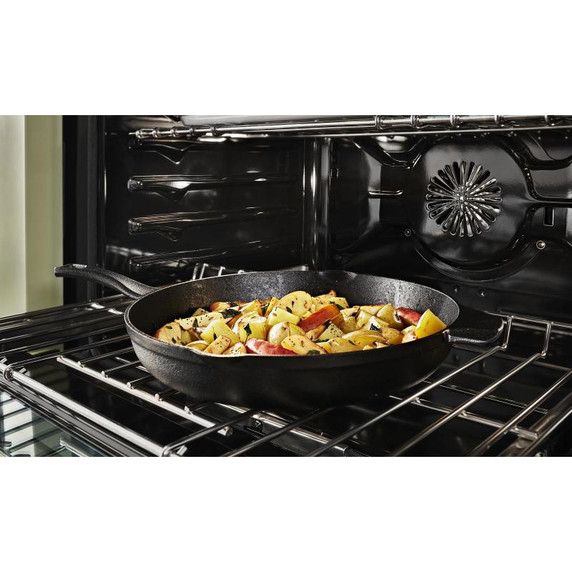

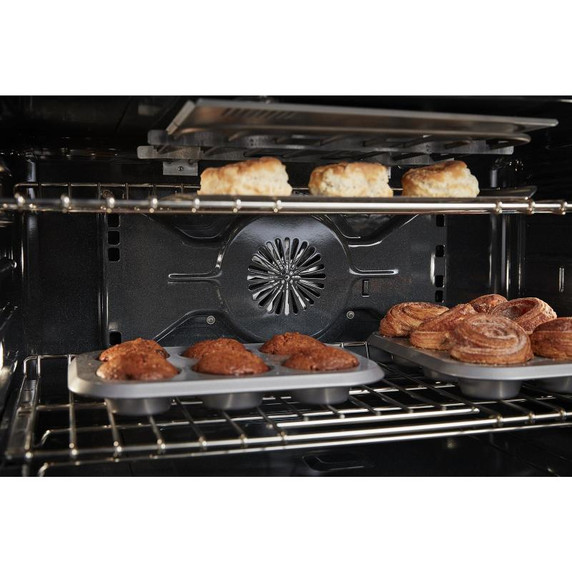

Even-Heat™ True Convectionfeatures a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
Smart Appliancelets you control the oven with your Google Assistant device* to stay hands on or hands off. Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.

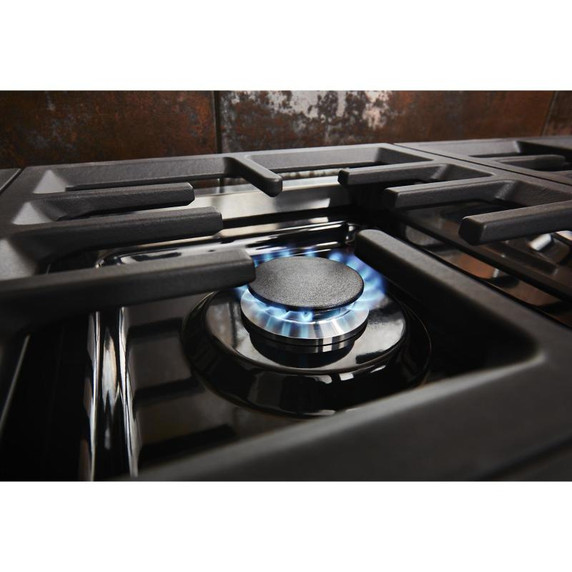

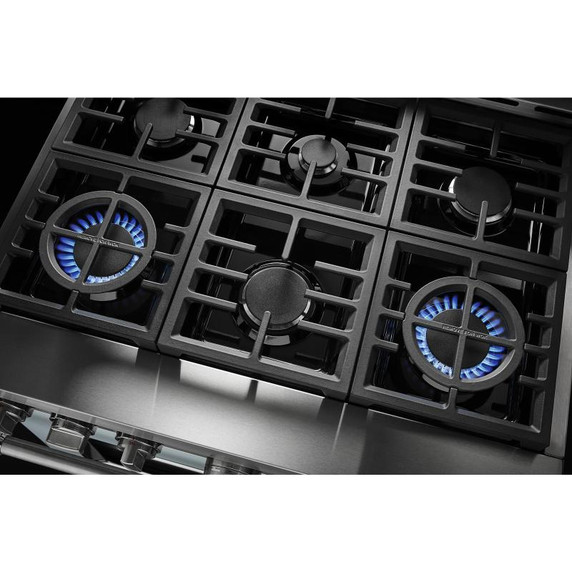

Two 20,000 BTU Ultra Power™ Dual-Flame Burnersgive you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

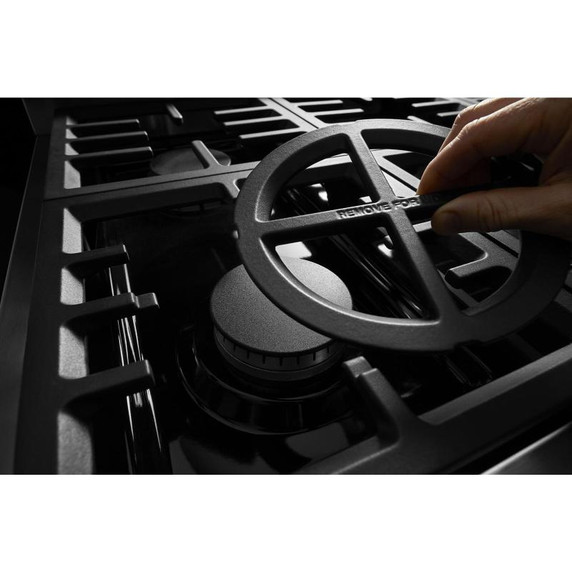

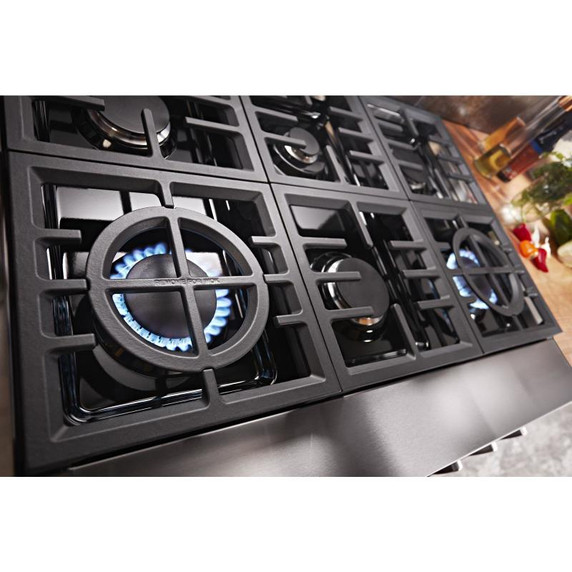

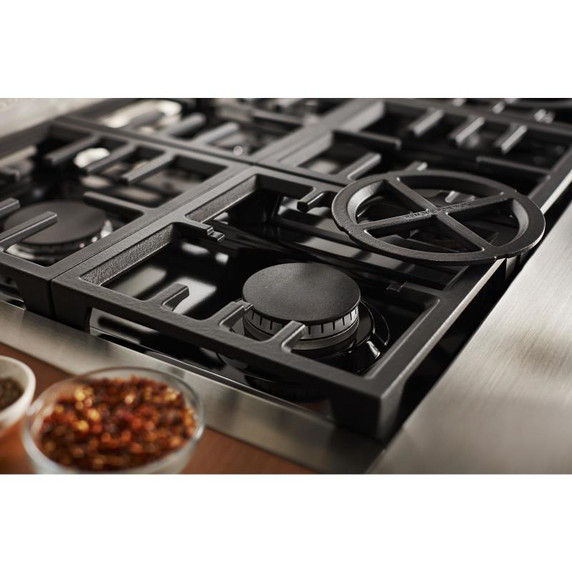

Three-Level Convertible Grateswith removable inserts match the heat to your technique. Leave the insert level for high-heat searing and sautéing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

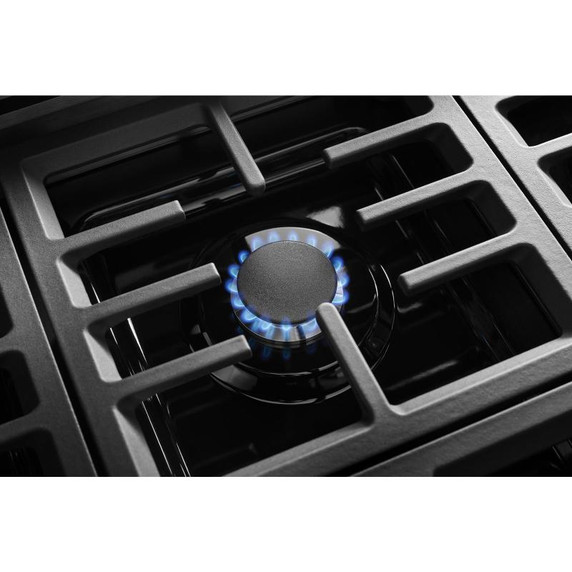

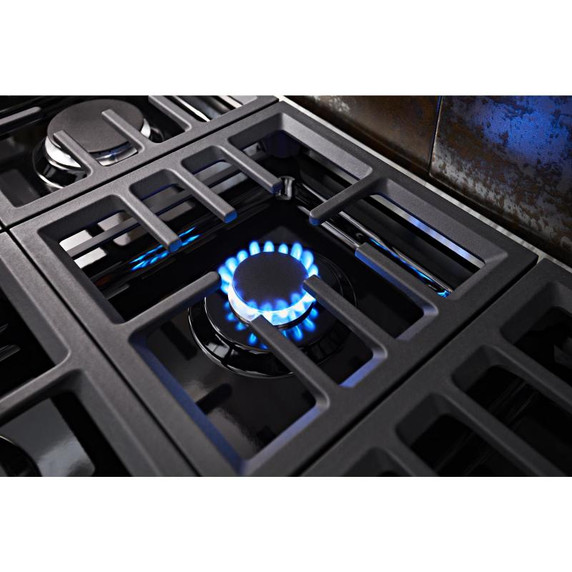

5,000 BTU Simmer & Melt Burnerwith a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.
5.1 Cu. Ft. CapacityEasily cook large meals with a 5.1 Cu. Ft. Capacity oven that includes two racks and a separate Broiler Drawer.

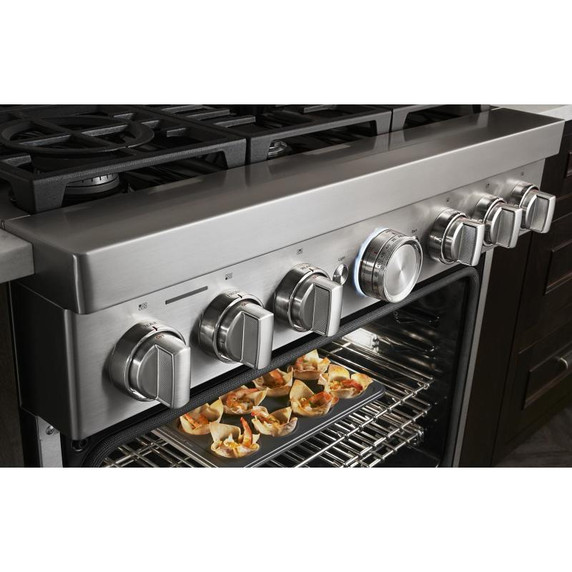

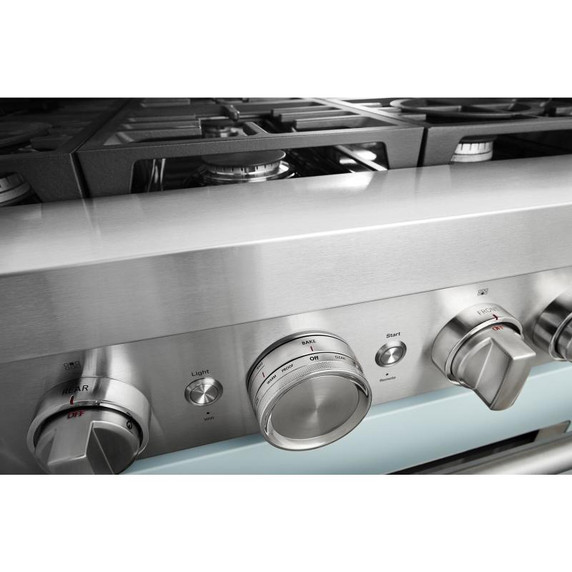

Dual-Concentric Oven Knobprovides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.

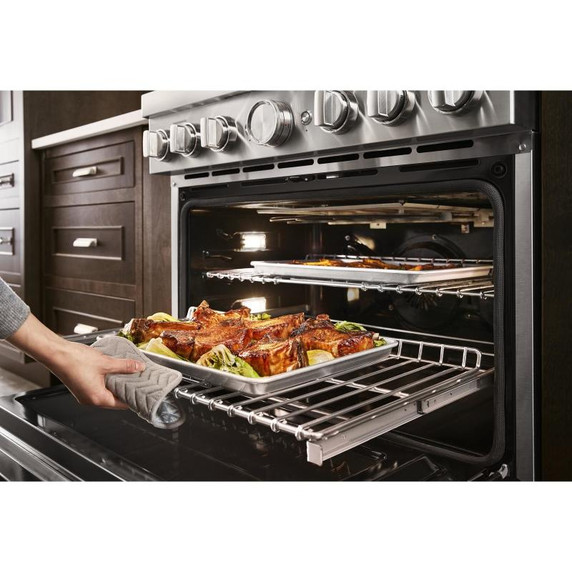

SatinGlide™ Roll-Out Extension Rackmakes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid™ app, making it effortless to use convection with recipes of all kinds.
Three 15,000 BTU Burnersdeliver the high-heat you need for successful searing, sautéing, stir-frying and quickly bringing large stock pots to a rolling boil.
KitchenAid® Handle Medallion Kit (sold separately)lets you change the color of your commercial-style range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone. Each kit includes two medallions and a 1/8" hex allen wrench for easy replacement (sold separately)
Star-K CertifiedApproves the oven for use on the Sabbath and other religious holidays when Sabbath Mode is being used.
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Extended Service Plan ParentEW12IW2Y, EW12IW1Y, EW12IW4Y
Optional AccessoriesW11368841MP, W11368841BO, W10285448, W11368841CF, W11368841BN, W11368841RE, W11368841NE
Product To Product PairsKVWC956KSS, KVWC906KSS, KVUC606KSS, W10285448, W10115776, UVL6036JSS
Hz60
Volts240
Power Cord IncludedNo
Amps40
ULYes
ADA CompliantNo
CULYes
Star K CertifiedYes
Energy Rating Kwh Year370
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Fuel TypeDual Fuel
Knob TypeWeighted
Knob ColorStainless Steel
Cooktop Element StyleSealed Burners
Left Front Element Burner TypeDual
Number Of Cooking Element Burners6
Right Front Element Burner TypeDual
Auto Re IgnitionYes
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Ignition TypeFlame-Sensing™ Re-ignition
Cooktop ConfigurationAll Burners
Right Rear Element Burner TypeSealed Burner
Center Front Element Burner Power15000BTU
Center Front Element Burner TypeStandard
Center Rear Element Burner Power5000BTU
Center Rear Element Burner TypeSealed Burner
Left Front Element Burner Power20000BTU/14000LP
Left Rear Element Burner Power15000BTU/11000LP
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner Power20000BTU/14000LP
Right Rear Element Burner Power15000BTU/11000LP
Number Of Grates6
Grate DetailsDishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
Natural Gas ConvertibleYes
GriddleN/A
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Works WithAmazon Alexa; Android; Google Assistant; iOS
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Bake Element Power3000W
Convection FunctionsBake; Broil; Roast
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Interior ColorBlack
Oven Cleaning TypeSelf-Clean
Oven Control Knob ColorStainless Steel
Oven Control Knob TypeMetal
Oven Control LocationFront Control
Oven Control TypeKnobs
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Rack Guide TypeMolded
Broiler LocationTop Center
Number Of Oven Lights3
Oven Interior Depth In Inches16.3
Oven Rack TypeGliding Roll-Out; Standard (Both)
Number Of Oven Racks3
Oven Interior Width In Inches29.9
Broiler Element Power5500W
Convection Element Power Watts1600
Convection Element TypeTrue-Bow Tie
Size In36
Range TypeFreestanding
Annual Energy Usage Kwh370
Carton Depth35.5"
Carton Height47.6"
Carton Width41.8"
Depth Closed Excluding Handles27.75"
Depth Closed Including Handles30.25"
Depth With Door Open 90 Degree46.5"
Gross Weight444.0 lbs.
Height36.0"
Maximum Height37.5"
Minimum Height36.0"
Width35.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width36.0"
Capacity FT3 (cubic feet)5.1
