Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW08IW2Y, EW08IW1Y, EW08IW4Y
Optional AccessoriesW10355051B, W10177003, W10620783
Hz60
Power Cord IncludedNo
Amps40
Volts220
ULYes
ADA CompliantNo
Right Rear Element Burner TypeDual
Cooktop Element StyleCeran
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Center Front Element Burner Power3200W
Center Front Element Burner Size10in.
Center Front Element Burner TypeEven-Heat™ Ultra
Center Rear Element Burner Power1200W
Center Rear Element Burner Size6in.
Center Rear Element Burner TypeStandard
Left Front Element Burner Power1300W
Left Front Element Burner Size6in.
Left Front Element Burner TypeEven-Heat™

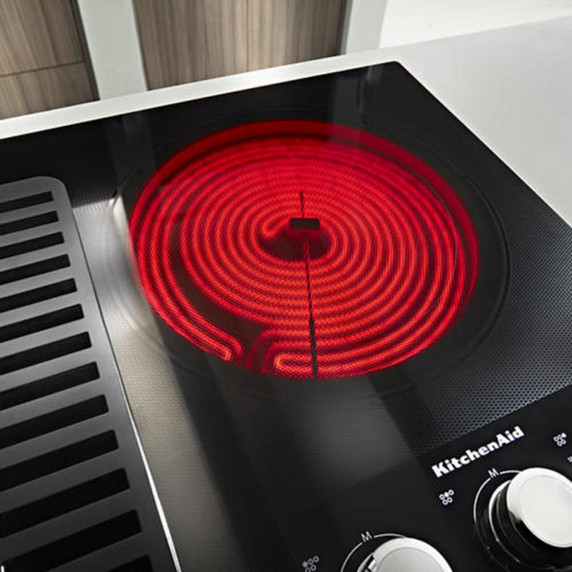

Right Rear Element Burner Power3000W
Right Rear Element Burner Size12in./9in.
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo

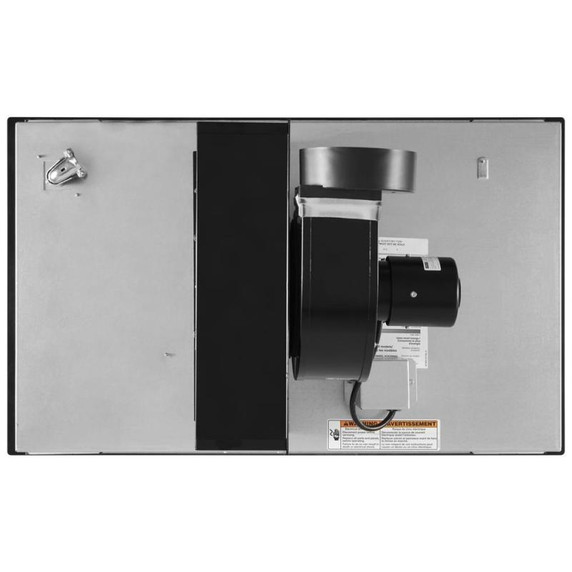

Downdraft VentYes
Installs Over Built In OvenNo
Fuel TypeElectric
Size In36
Cooktop TypeDowndraft
Control TypeManual
Knob TypeMetal
Control LocationSide
Cfm Motor Class300
Kad CooktopCookshield Finish; Downdraft Ventilation; Even-Heat Melt Burner

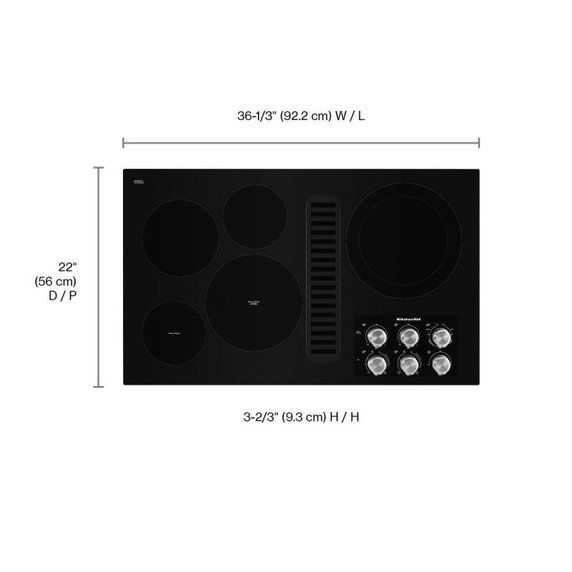

Depth22.06"
Height3.63"
Maximum Height18.75"
Net Weight73.0 lbs.
Width36.31"
Cutout Depth21.13"
Cutout Width34.56"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch41.5
