Country Of OriginUSA
Extended Service Plan ParentEW07IW2Y, EW07IW4Y, EW07IW1Y
Product To Product PairsKXD4636YSS, KVUB406GSS, KVIB606DBS, KVWB606HBS, KVWB406DSS, KVWB606DSS, UVL6036JSS, KVIB606DSS, KVUB606DSS
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
ULYes
ADA CompliantYes
Left Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Rear Element Burner Size6in.

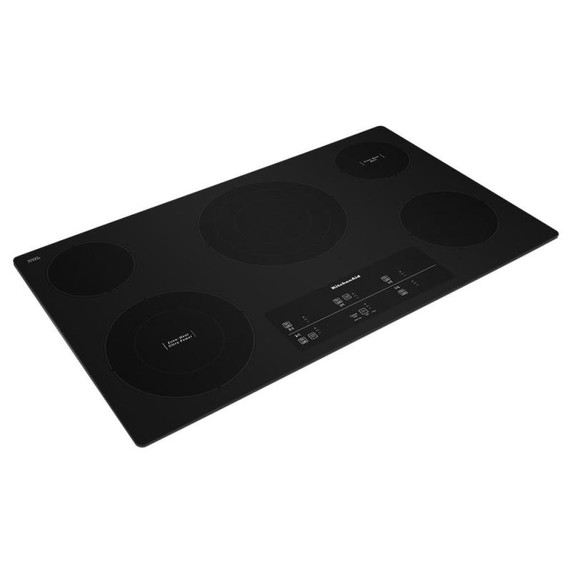

Number Of Cooking Element Burners5
Right Front Element Burner TypeStandard
Right Front Element Burner Size8in.
Left Front Element Burner Size10in./6in.
Right Rear Element Burner Power1300W
Left Front Element Burner Power3200/2300W
Center Rear Element Burner Power3000/2200/1100W
Center Rear Element Burner Size12in./9in./6in.
Center Rear Element Burner TypeTriple
Right Front Element Burner Power1800W

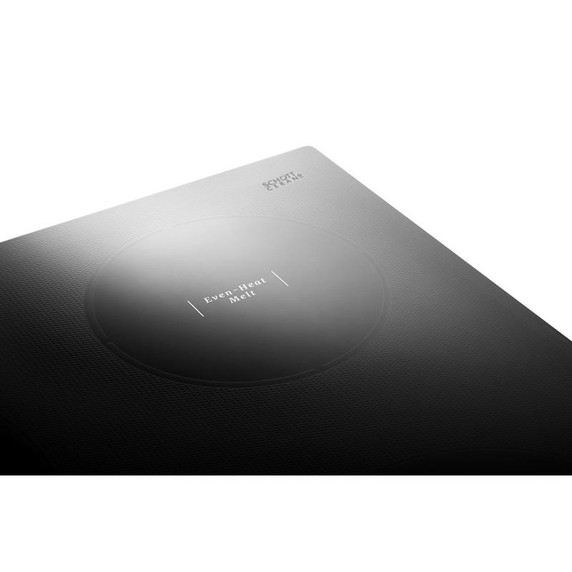

Right Rear Element Burner TypeEven Heat
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Automatic Pan Size AdjustmentNo
Fuel TypeElectric
Size In36
Cooktop TypeTraditional
Combinations With OvenKOES527P; KOES530P; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107

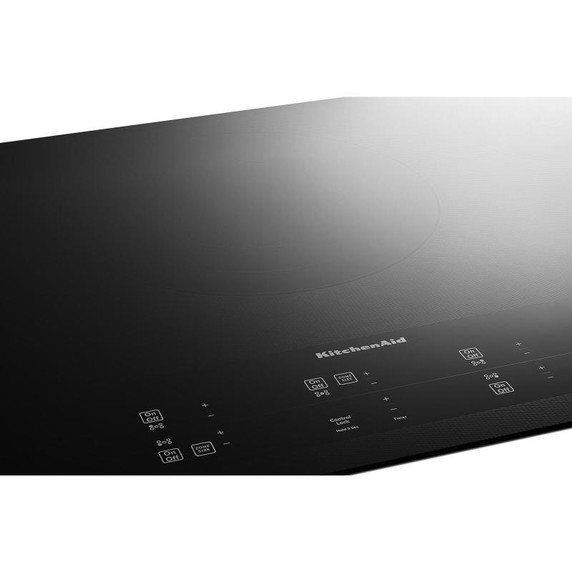

Control TypeManual
Control LocationFront
Depth20.25"
Height3.63"
Minimum Height3.83"
Net Weight44.0 lbs.
Width34.43"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch40.75
