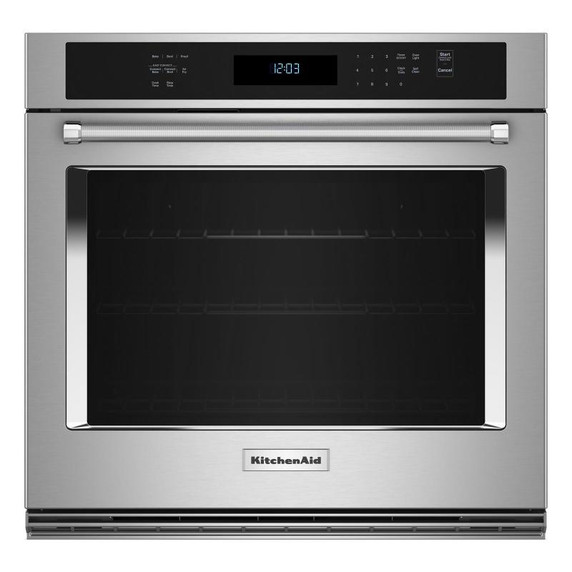

KitchenAid® 30" Single Wall Oven with Air Fry Mode KOES530PSS
Air Fry ModeUses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
*When compared to deep frying.
Dishwasher-Safe Air Fry BasketAllows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
Even-Heat™ True ConvectionFeatures a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.

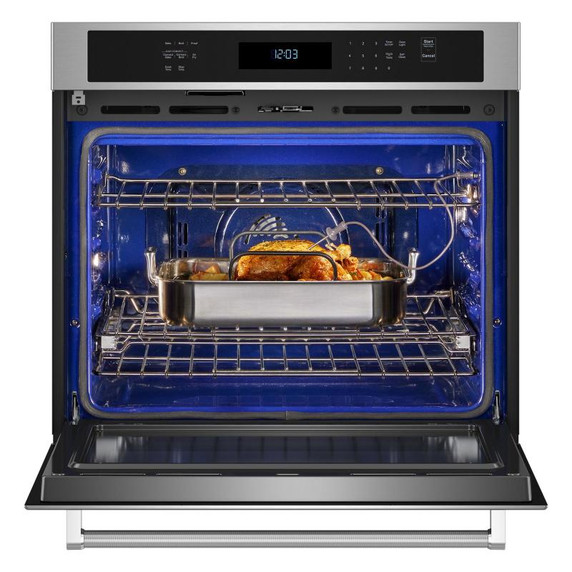

Integrated Meat ThermometerTakes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
4,000-Watt Broil ElementUses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
Self-Close DoorFeatures specialized hinges that make it easy to shut the oven when your hands are full. Just give the door a nudge, and it will gently close itself.
SatinGlide™ Roll-Out Extension RackMakes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
Star-K CertifiedApproves the oven for use on the Sabbath and other religious holidays when Sabbath Mode is being used.
FIT System Limited Guarantee
If your new KitchenAid® Microwave doesn't fit the standard cut-out of your undercabinet hood, the FIT System Limited Guarantee provides a full refund without the hassle of the return process. *
*Fit System Limited Guarantee: On low profile KitchenAid® microwaves. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
Even-Heat™ PreheatRaises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
Self-Cleaning CycleUses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
5.0 Cu. Ft. Oven CapacityProvides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
What's in the boxSingle Wall Oven includes
- Dishwasher-Safe Air Fry Basket
- Integrated Meat Thermometer
Specifications
Country Of OriginUSA
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11570323, W11551866
Electrical
Hz60
Amps20
Volts240
Power Cord IncludedNo
Certifications
ULYes
Energy Rating Kwh Year356
CULYes

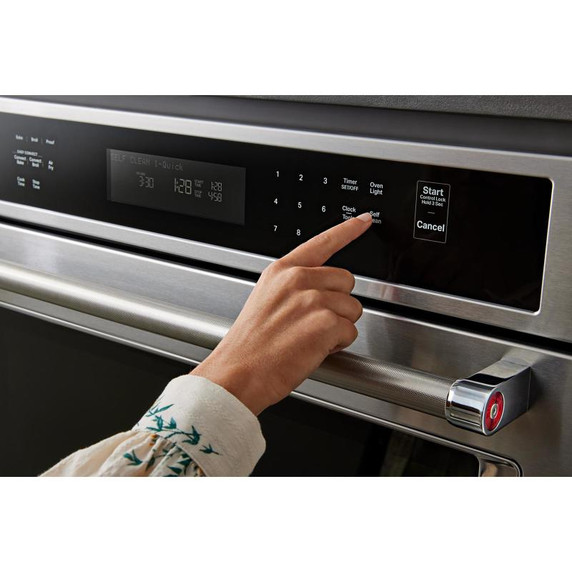

Controls
Control TypeElectronic
Display ColorWhite
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Configuration
Oven ConfigurationSingle Oven
Details
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Bake Element Power2800W
Number Of Oven Lights2
Number Of Rack Guides6
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Interior CoatingPorcelain
Light ControlOven Light Touch Pad
Number Of Broil Elements1
Oven Interior Height In Inches18.0
Light TypeHalogen
Interior ColorBlue
Broiler Element Power4000W
Convection FunctionsBake; Broil; Convection Conversion
Number Of Oven Racks3
Number Of Bake Elements2
Convection Element Power Watts3200
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Features
Language ConversionEnglish/French/Spanish
Power On Indicator LightYes
Compatibility
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Energy
Annual Energy Usage Kwh356
Carton Depth30.8"
Carton Height30.7"
Carton Width34.8"
Depth Closed Excluding Handles24.5"
Depth Closed Including Handles27.13"
Depth With Door Open 90 Degree46.75"
Depth27.13"
Gross Weight160.0 lbs.
Height28.75"
Net Weight144.0 lbs.
Width29.75"
Cutout Depth24.0"
Cutout Height28.0"
Cutout Width28.5"
Capacity FT3 (cubic feet)5.0
