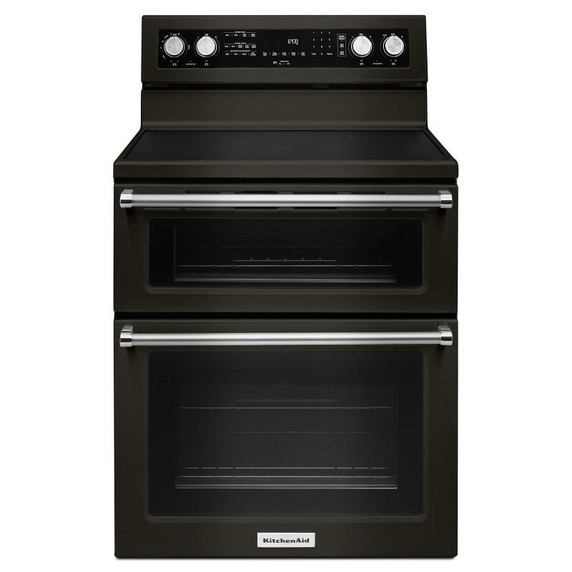

Kitchenaid® 30-Inch 5 Burner Electric Double Oven Convection Range YKFED500EBS
KitchenAid
Kitchenaid® 30-Inch 5 Burner Electric Double Oven Convection Range YKFED500EBS
Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
6.7 cu Ft. Total CapacityProvides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
Professionally-Inspired DesignCombines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
5 cooking elements including a warm zoneProvides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
EasyConvect™ Conversion SystemTakes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
SatinGlide® RackMove smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Hidden BakeCovers up the baking element, making it easier to wipe away spills.
Triple-Ring ElementWith three element sizes at one location, you get the versatility to match cooking surface to cookware size.
10" Even-Heat™ Ultra ElementDelivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.
Stainless Steel Cooktop TrimProvides a seamless transition to other surfaces and enhances the look of edges around stainless steel cooktops.
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Optional AccessoriesW10355051B
Product To Product Pairs
Extended Service Plan ParentEW09IW2Y, EW09IW1Y, EW09IW4Y
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
Certifications
ULYes
Energy Rating Kwh Year532
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Features
Heating Element On Indicator LightYes
Automatic Convection Conversion Temperature AdjustYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Configuration
Range ConfigurationFreestanding
Oven ConfigurationDouble Oven
Cooktop Details
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Center Rear Element Burner TypeWarming
Left Front Element Burner Power2700W/1950W/1050W
Left Front Element Burner Size12in./9in./6in.
Left Front Element Burner TypeTriple
Left Rear Element Burner Power700W
Right Front Element Burner Power3200W
Right Front Element Burner Size10in.
Right Front Element Burner TypeStandard Radiant
Details
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Interior ColorGrey
Number Of Oven Lights1
Oven Light TypeIncandescent
Bake Element Power2000WBoth
Broiler Element Power3600WBoth
Convection Element TypeFan
Cooktop Surface MaterialCeramic Glass
Number Of Oven Racks1 Upper-2 Lower
Number Of Rack Guides2 Upper-5 Lower
Oven Control TypeElectronic Touch
Oven Cooking SystemThermal Upper-Convection Lower
Oven Rack Type1 Gliding Roll-Out, 2 Heavy Duty
Convection Element Power Watts1600
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Range TypeFreestanding Double Oven
Energy
Annual Energy Usage Kwh532
Carton Depth30.25"
Carton Height49.5"
Carton Width30.75"
Depth Closed Including Handles28.5"
Gross Weight224.0 lbs.
Height47.88"
Net Weight203.6 lbs.
Width29.94"
Capacity FT3 (cubic feet)6.7
