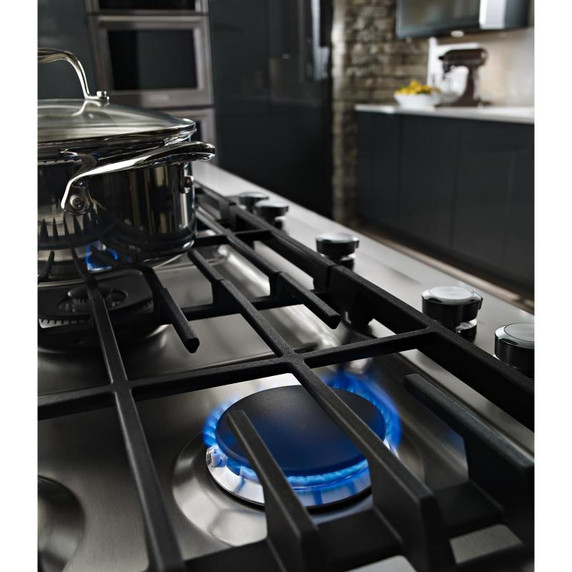

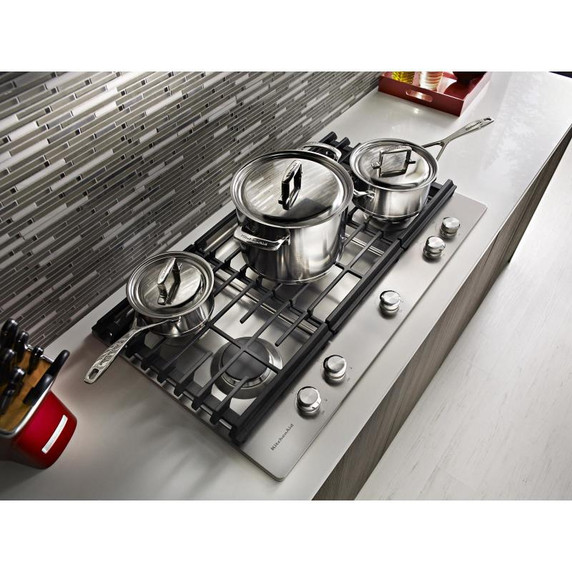

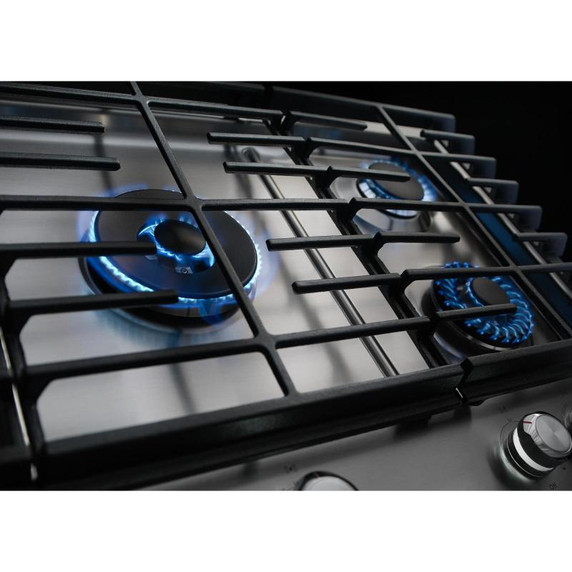

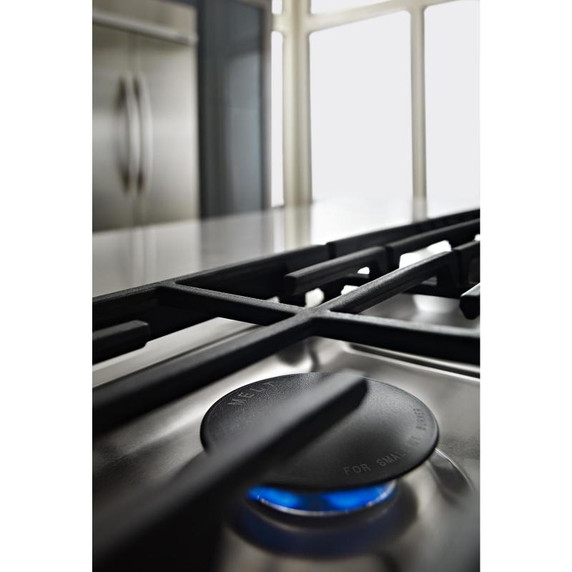

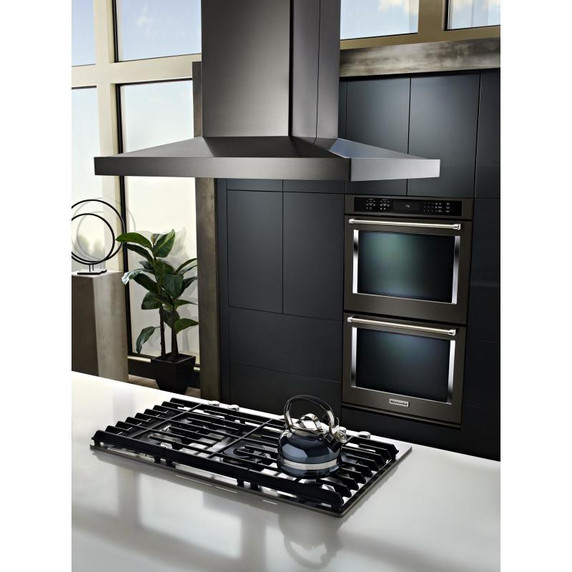

Kitchenaid® 30" 5-Burner Gas Cooktop with Griddle KCGS950ESS
Specifications
Country Of OriginUSA
Extended Service Plan ParentEW08IW2Y, EW08IW1Y, EW08IW4Y
Product To Product PairsKVWB600DSS, KVUB400GSS, KVWB600HBS, UVL5430JSS, KVUB600DSS, KVWB400DSS, KXD4630YSS
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Cooktop Element StyleSealed Burners
Center Rear Element Burner Power17000BTU
Center Rear Element Burner TypeHigh Output
Left Front Element Burner Power12000BTU
Left Front Element Burner TypeSealed Burner
Left Rear Element Burner Power6000BTU
Number Of Cooking Element Burners5
Right Front Element Burner Power10000BTU
Right Front Element Burner TypeEven-Heat™
Right Rear Element Burner Power7000BTU
Right Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeEven-Heat™
Features
GriddleYes
Heating Element On Indicator LightYes
Hot Surface Indicator LightNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes

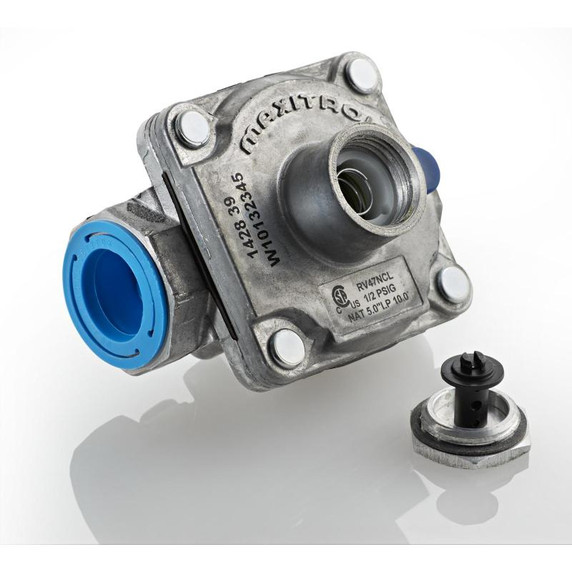

LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenKOES527P; KOES530P; KOSC104FSS; KOSC504; KOSE500; KOSE507; KOSE900; KOST100; KOST107
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Configuration and Overview
Fuel TypeGas
Refinements
Kad CooktopADA Compliant; Cookshield Finish; Even-Heat Melt Burner; Torch Burner
Depth21.0"
Height3.69"
Maximum Height4.59"
Net Weight0.0 lbs.
Width30.0"
Cutout Depth19.81"
Cutout Height5.25"
Cutout Width28.88"
Carton Depth Inch25.0
Carton Height Inch12.04
Carton Width Inch34.76
