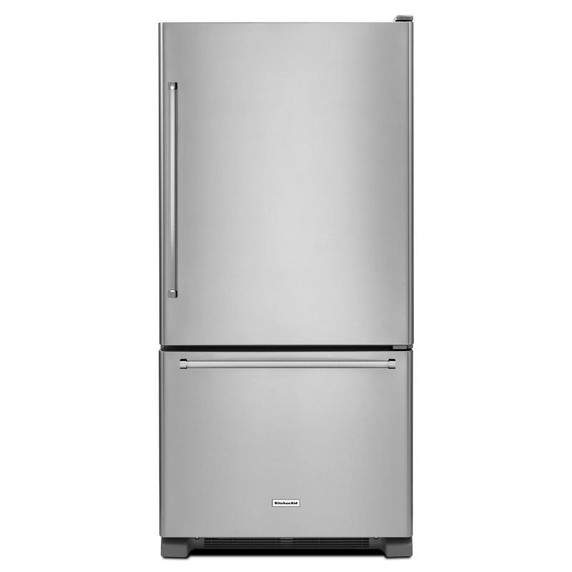

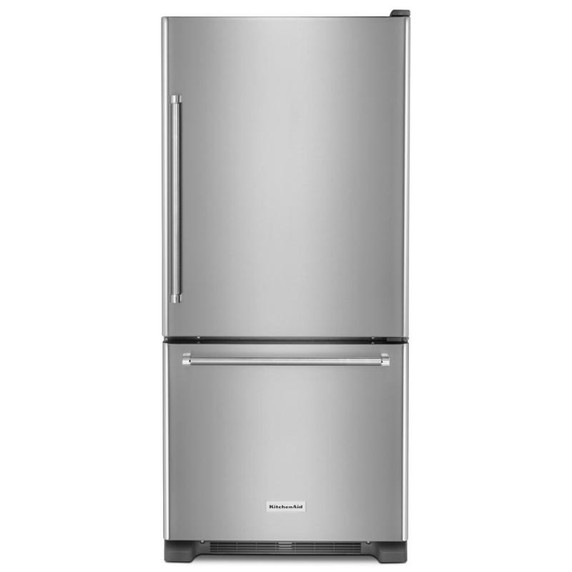

Kitchenaid® 19 cu.ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS
KitchenAid Red Hot Savings Event, January 30 - March 5, 2025. Save $200 when you purchase 2 qualifying KitchenAid® freestanding major kitchen appliances. Save $300 when you purchase 3 qualifying KitchenAid® freestanding major kitchen appliances. Save $400 when you purchase 4 or more qualifying KitchenAid® freestanding major kitchen appliances!
KitchenAid
Kitchenaid® 19 cu.ft. 30-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator KRBR109ESS
ExtendFresh™ Plus Temperature Management SystemEnsures ingredients remain fresh for maximum taste and texture using a sensor-controlled system with a variable-capacity compressor. There is one thermistor in the freezer and one thermistor in the refrigerator.
ExtendFresh™ Temperature Management SystemSeparately monitors the temperatures in the refrigerator and freezer through a sensor located in each, to help ensure fresh fruit juices don't become frozen and prawns avoid freezer burn.
Produce PreserverAbsorbs ethylene gas emitted by many fruits and vegetables, causing them to over ripen. By removing ethylene, the produce preserver helps extend freshness.
Produce PreserverAbsorbs ethylene gas emitted by many fruits and vegetables, causing them to over ripen. By removing ethylene, the produce preserver helps extend freshness.
Professionally-Inspired DesignA bold blend of professionally-inspired styling and sleek touches for the home. The striking built-in refrigerator features Satin Textured Handles with iconic KitchenAid Brand Medallions while a Platinum Interior Design enhances the beauty on the inside.
Humidity Controlled CrispersProvide a dedicated storage option with adjustable humidity levels to keep fresh food in an optimal environment.
Full-Width PantryLets you properly store everything from meats to produce in a full width compartment.
ENERGY STAR® QualifiedProducts conserve energy by exceeding minimum federal energy efficiency.
Humidity-Controlled CrispersStore fruits and vegetables in their ideal environment.
LED LightingIlluminates the inside of the refrigerator and freezer giving for better visibility. Unlike incandescent bulbs, LED lights use less energy, are maintenance-free and never need to be replaced.
LED LightingIlluminates the inside of the refrigerator and freezer giving for better visibility. Unlike incandescent bulbs, LED lights use less energy, are maintenance-free and never need to be replaced.
Metal Wine RackProvides a durable storage solution for wine or 2-liter containers and can be removed for additional storage flexibility.
Optional Ice Maker KitCompatible with the easy to install Ice Maker Kit (Model no. IC13B) for access to fresh ice.
ENERGY STAR® QualifiedProducts conserve energy by exceeding minimum federal energy efficiency.
Controls
Control LocationInterior Up Front
Door Ajar Open AlarmNo
Control LockoutNo
Max Cool Fast CoolNo
Water Filter Indicator ResetNo
Electrical
Volts120
Amps15
Freezer Compartment
Door TypePull-Out
Door BinsNo
LightYes
Freezer Drawer Basket1 Full Width Lower Wire; 1 Full Width Upper Wire
Freezer Number Of ShelvesNone
Icemaker
Icemaker LocationFreezer
IcemakerNo / Optional Accessory
Filters
Fresh Flow Air Filter IncludedNo
Water Filter LocationN/A
Dispenser
Dispenser TypeN/A
Types Of IceN/A
Dispenser OptionsN/A
AHAM Volumes And Shelf Area
Freezer Volume Cu Ft5.73
Refrigerator Volume Cu Ft12.94
Total Volume Cu Ft18.67
Specifications
Country Of OriginUSA
Fingerprint ResistantNo
Optional AccessoriesW11459724
Extended Service Plan Parent
Product To Product PairsKVWB406DSS, KTTS505ESS, KFDD500ESS, KCGS556ESS, KXD4630YSS, KVUB600DSS, KMBP107ESS, KVUB606DSS, KVWB600DSS, KVWB400DSS, KVIB606DSS, KFGG500ESS, KVWB606DSS, KXD4636YSS, KCGS550ESS, KSDG950ESS, KOWT100ESS, KOWT104ESS, KSGG700ESS, KSGB900ESS, KMBP100ESS, KSEG950ESS, KCGS950ESS, KOWT107ESS, KCGS350ESS, KCGS956ESS, KFGD500ESS
Refinements
Kad RefrigeratorExtendFresh Temperature Management System; LED Lighting; Produce Preserver
Certifications
ULYes
Energy Star QualifiedYes
Cee TierTier I
ADA CompliantNo
Ule Environmentally Preferred CertifiedYes
Energy Rating Kwh Year469
Exterior
Door FinishSmooth
Door OpeningRight Swing
Door StyleFlat
Handle MaterialMetal
Reversible DoorNo
Handle ColorStainless Steel
Cabinet ColorGrey
Number Of Doors2
Cabinet FinishTextured
Hidden HingeNo
Base Grille ColorGrey
Handle TypeReach-Through Handle
Configuration
Installation ConfigurationFreestanding
Description
Type Of RefrigeratorBottom Freezer
Details
Cooling TypeSingle Evaporator
Counter DepthNo
Refrigerator Compartment
Humidity Controlled DrawersYes
LightingLED
Number Of Interior Shelves5
Conventional Shelves
Pantry DrawerYes
Deli DrawerNo
Supplementary Containers
Door Bins1 Dairy; 1 Fixed Full-Width; 4 Adjustable Half-Width
Non Climate Control Drawers
Temperature Controlled Drawers1 Full-Width
Spill Proof Glass Shelves1 Fixed Full-Width; 4 Adjustable Half-Width
Cabinet Width29.63"
Carton Depth36.0"
Carton Height69.5"
Carton Width32.5"
Depth33.38"
Height67.0"
Width29.75"
Depth Closed Excluding Handles30.88"
Depth Closed Including Handles33.38"
Depth Excluding Doors28.13"
Depth With Door Open 90 Degree59.0"
Height To Top Of Cabinet65.5"
Height To Top Of Door Hinge67.0"
Capacity (cubic feet)18.67
Gross Weight239.0 lbs.
Net Weight239 lbs.
Cutout Height67.0"
Cutout Width30.0"
Popular Height67 Inch Tall
Popular Width30 Inch Wide
