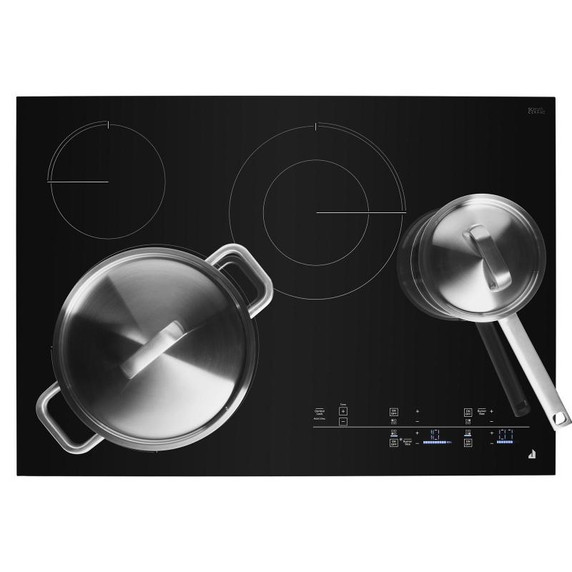

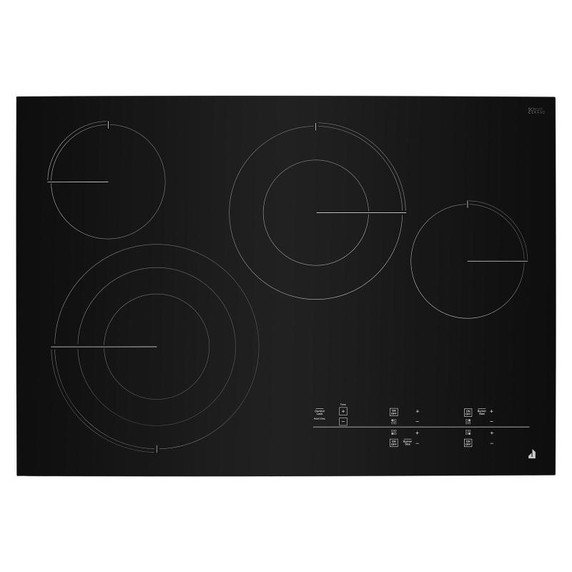

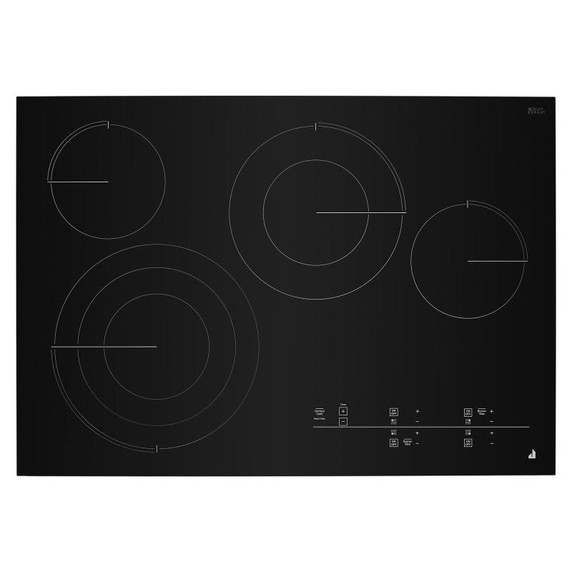

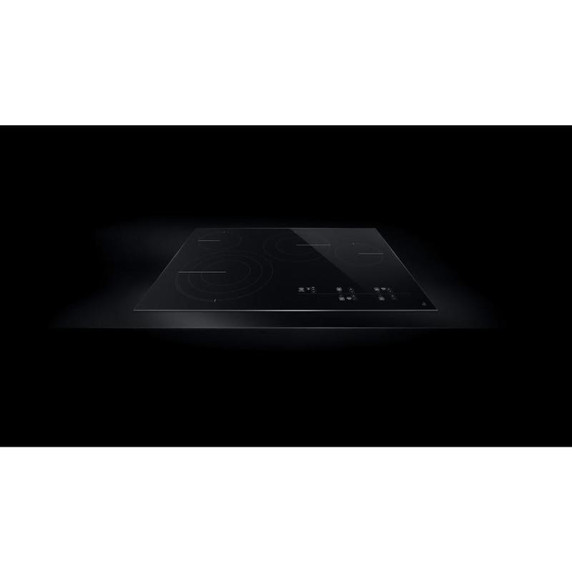

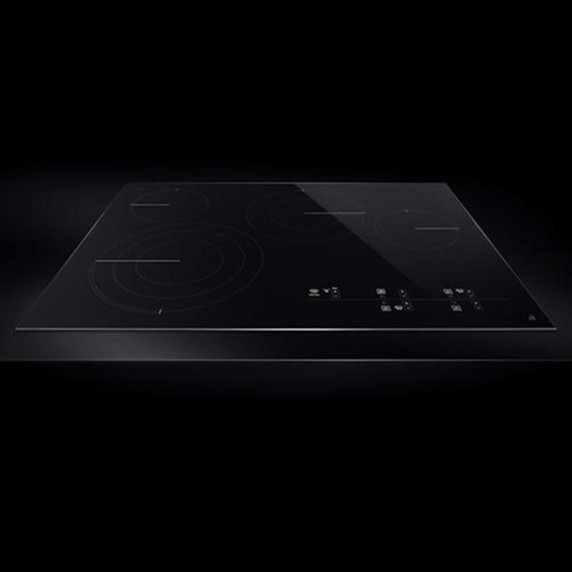

Jennair® Oblivion 30" Electric Radiant Cooktop with Emotive Controls JEC4430KB
JennAir
Jennair® Oblivion 30" Electric Radiant Cooktop with Emotive Controls JEC4430KB

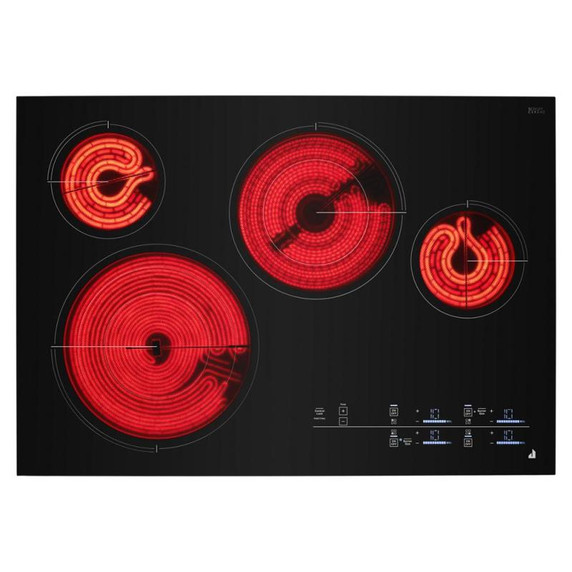

Most Powerful Radiant Cooktop In Its ClassThe four-element, 10,300-watt 30" JEC4430H is the most powerful radiant cooktop in its class

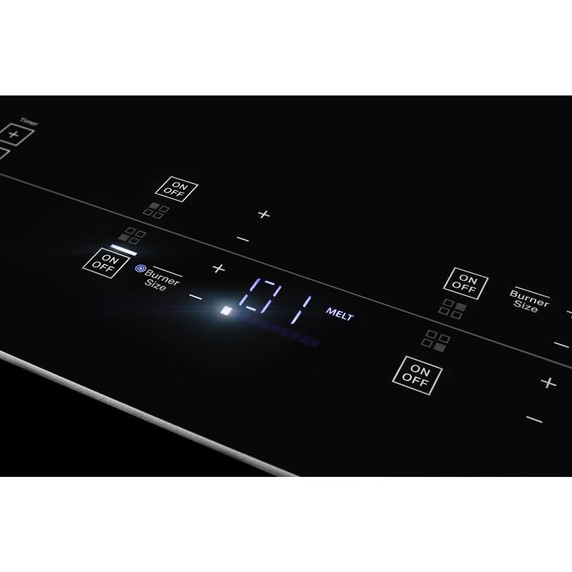

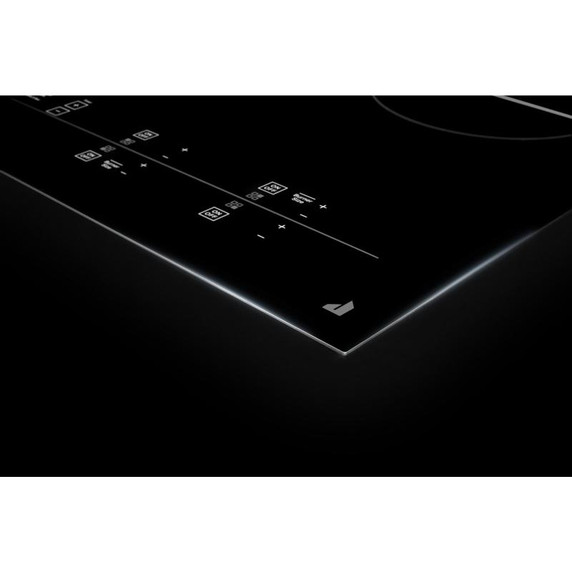

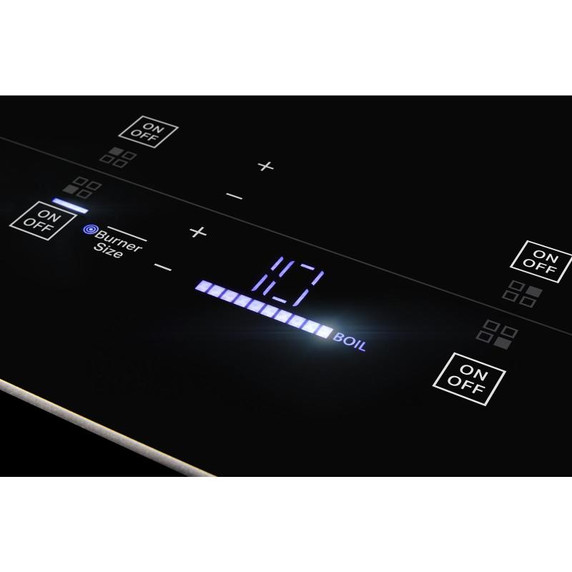

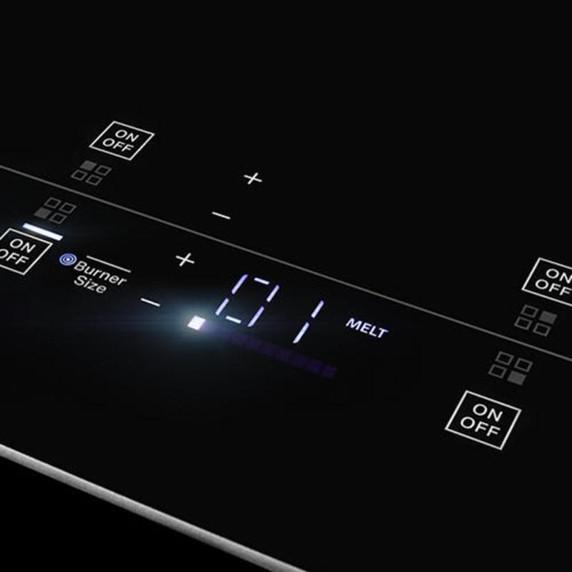

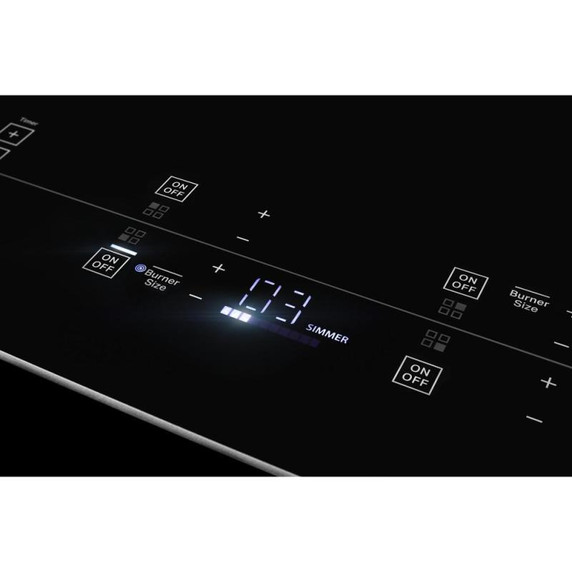

Emotive ControlsStriking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.

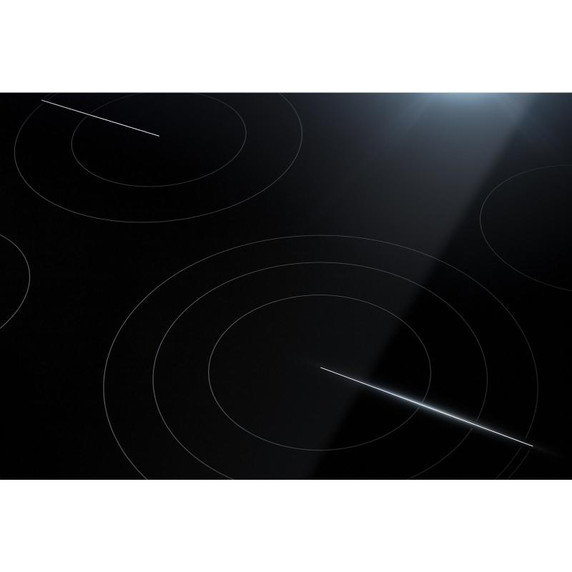

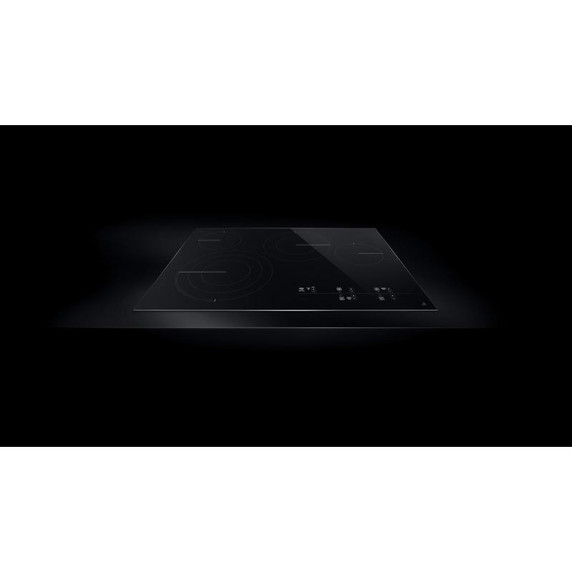

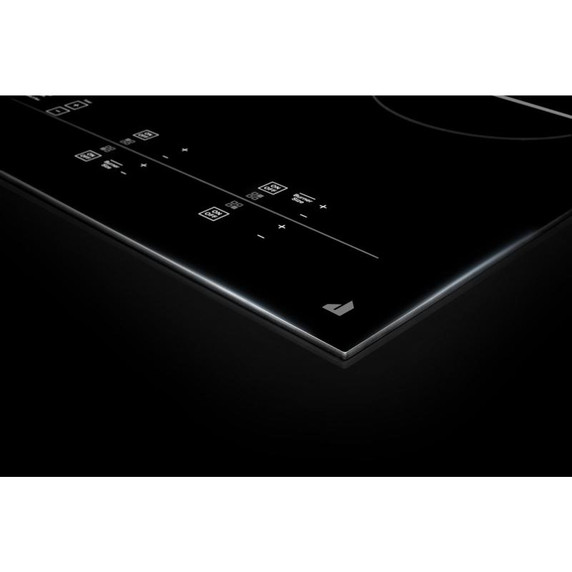

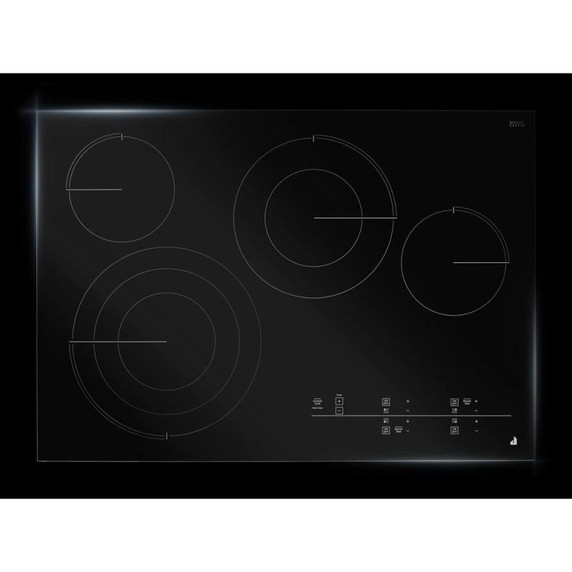

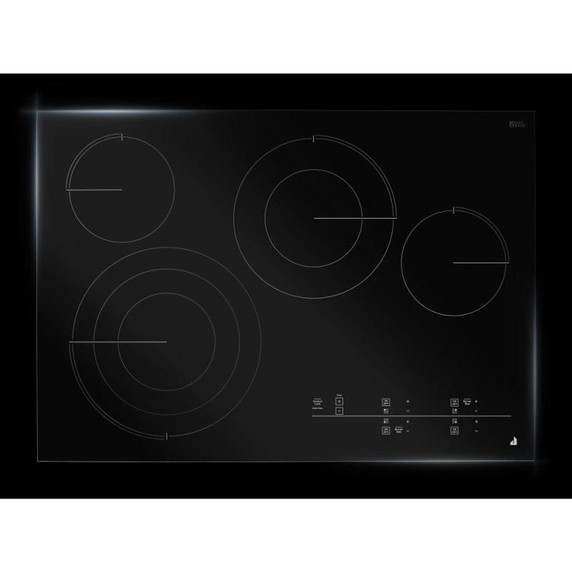

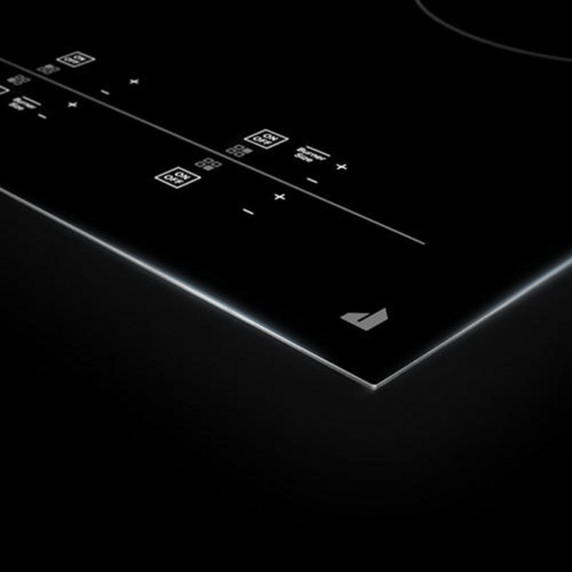

Oblivion Glass DesignSleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

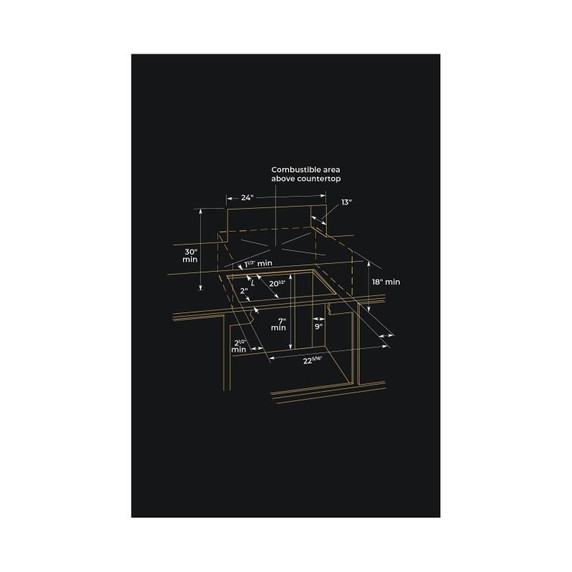

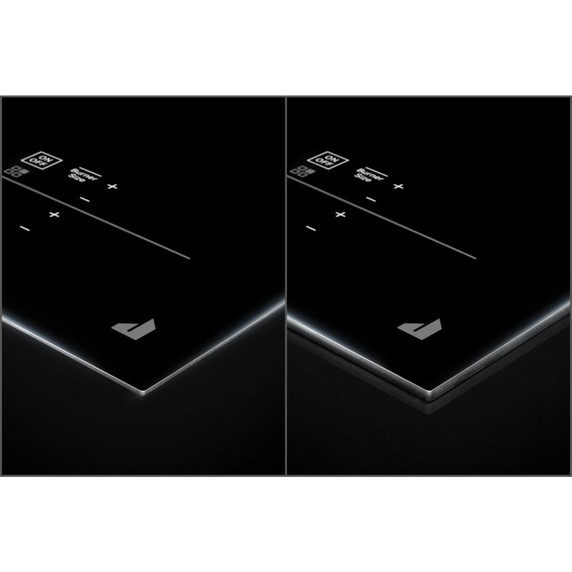

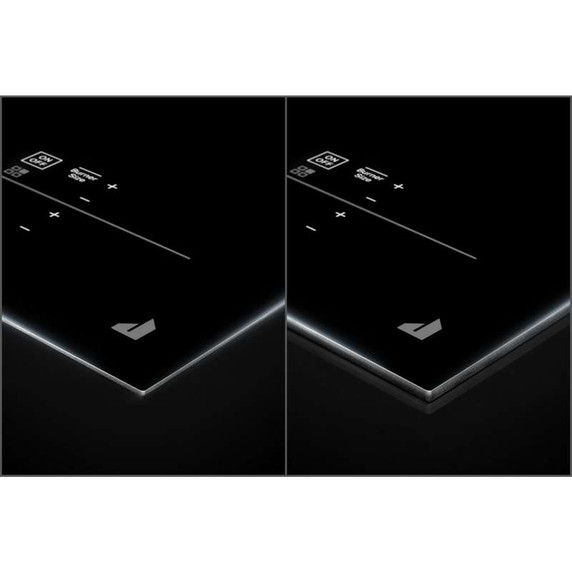

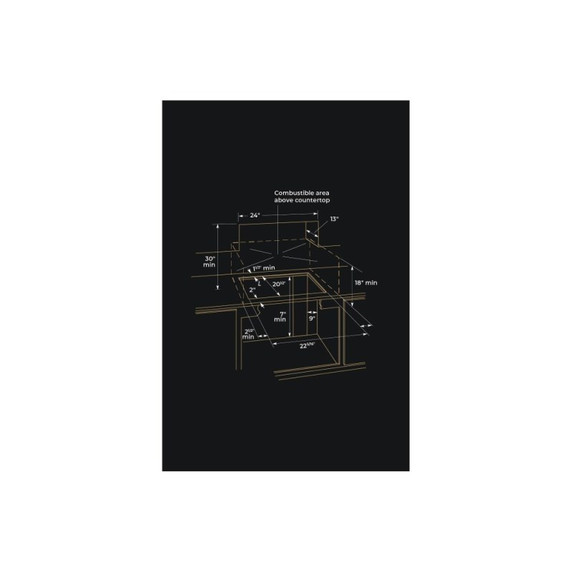

Versatile InstallationInstall without limits. This JennAir® cooktop can be installed true flush or semi-flush at 3mm above any level countertop, including an island or peninsula.
Install Over Single Wall OvenVersatility and functionality converge with the ability to install in a countertop above our single wall oven.
Most Powerful Radiant Element In The IndustryThe 12"/9"/6" Triple-Choice™ element is the most powerful radiant element available on 36- and 30-inch electric radiant cooktops. It reaches up to 4,500 watts when all three tiers are activated.

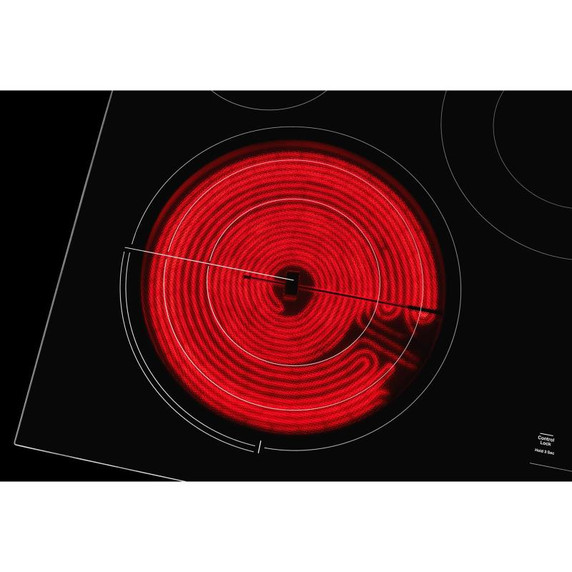

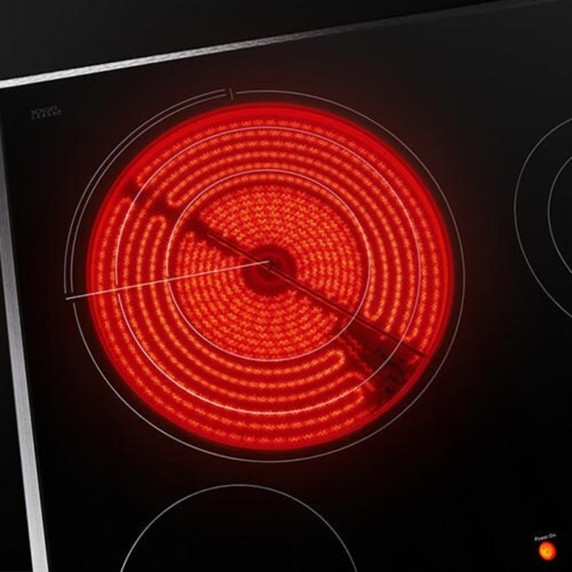

12" (30.5cm)/9" (22.9cm)/6" (15.2cm) Triple-Choice™ ElementReaching up to a powerful 4,500 watts and capable of turning down as low as 1,400 watts, this three-tiered element provides versatility in power levels while accommodating various-sized cookware.

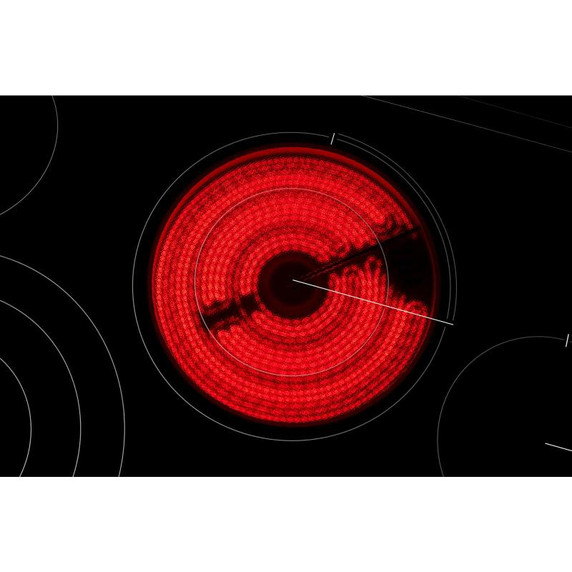

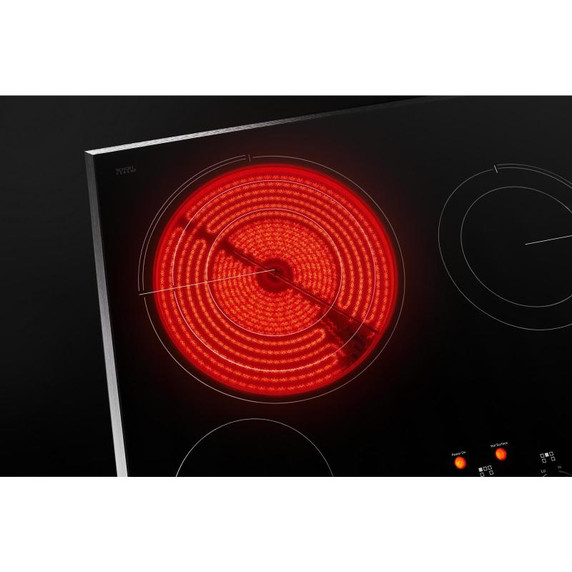

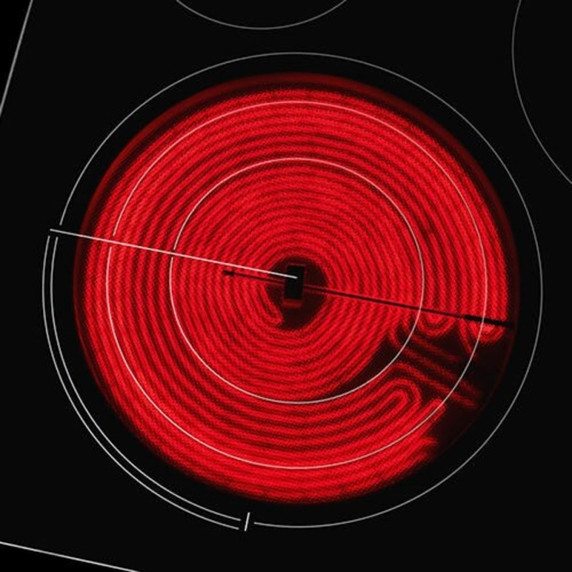

Radiant ElementsWaiting expectantly beneath the stillness of shadow-black glass, electric elements are coiled to deliver heat upon command.
10”/6” Dual-Choice™ Rapid Boil ElementThis two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,200 watts of power so liquids boil quickly, while a wide temperature range adds cooking flexibility to simmer sauces and cook foods at low temperatures.
6” 1,300-Watt Single ElementA fast-heating, perfectly sized and powerful 1,300-watt element for your small sauce pans and larger sauciers.

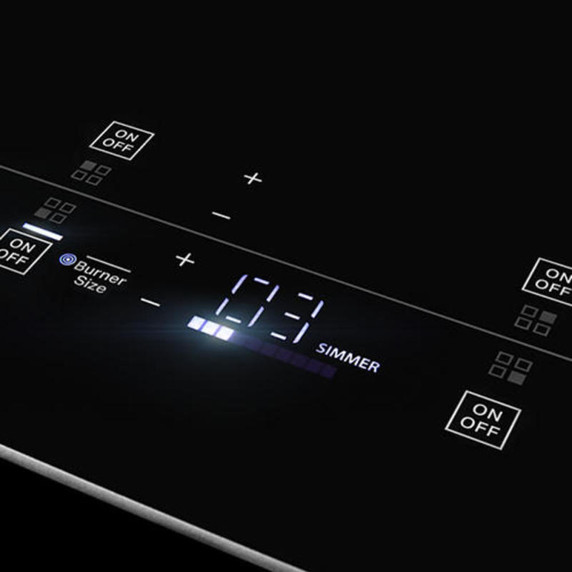

Simmer Function on All ElementsProvides the optimal temperature for gently cooking delicate sauces and foods.

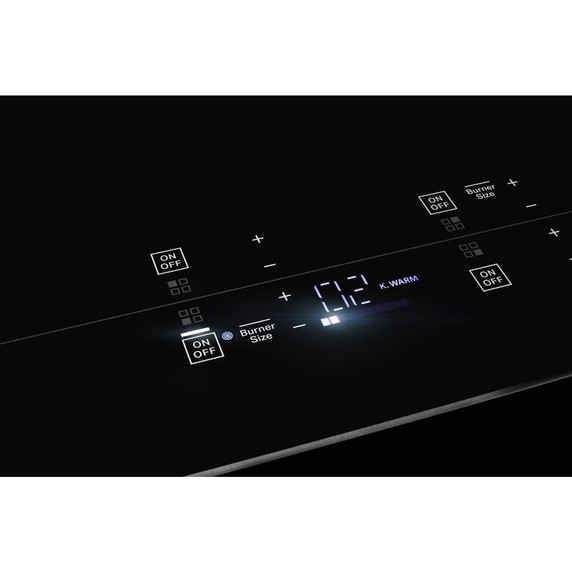

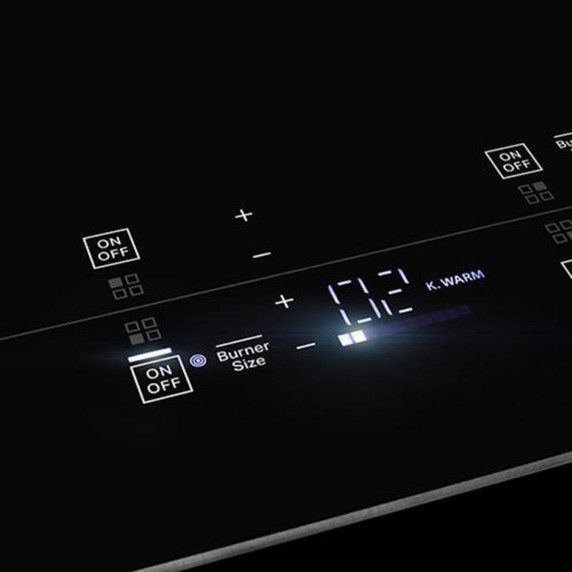

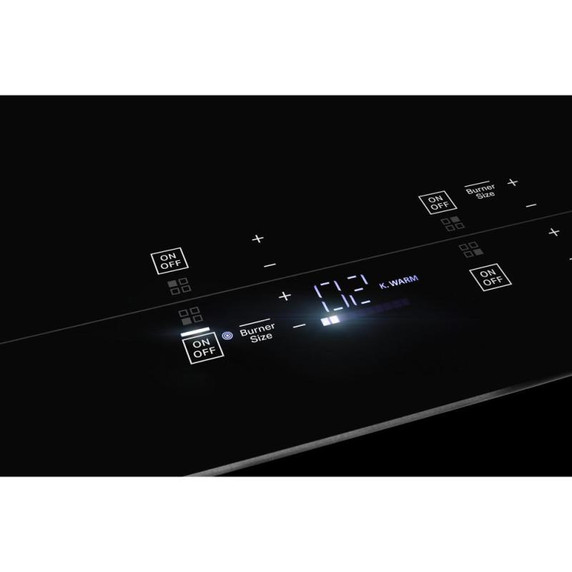

Keep Warm™ Function on All ElementsReward anticipation. Low heat at power level 2 keeps tempting dishes at the right temperature until they’re ready to be served.

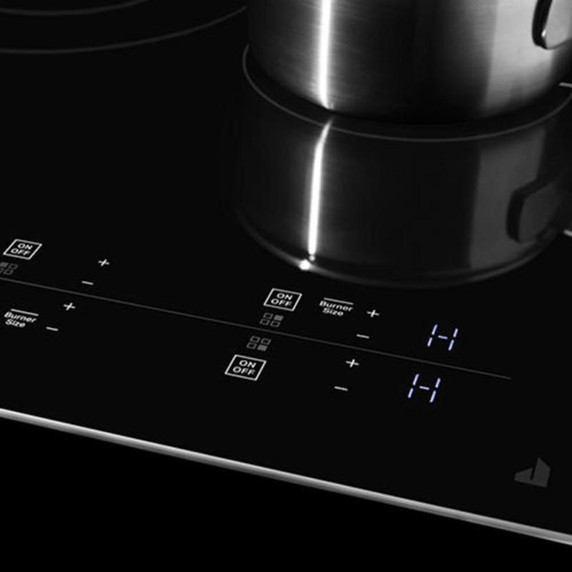

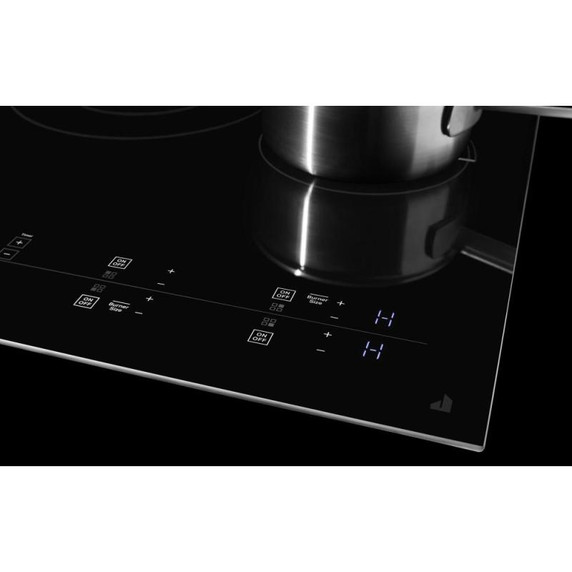

Hot Surface IndicatorsLight(s) positioned at the controls instantly show which element is still hot—even if the element has been turned off.
Kitchen TimerThe kitchen timer can be set in hours, minutes, and seconds and counts down the set time. Setting a kitchen timer will remind you when it's time to check your food, but will not turn your burner element off.
Power On Indicator LightSee at a glance that power is on for an electric induction element.
Control LockControl Lock prevents unintended use of the cooktop and ensures complete, simple cleaning of the controls.
Cooktop Power Off FunctionConveniently turn off all radiant elements at once.
ADA CompliantDesigned to meet ADA standards when installed according to the ADA guidelines.
Serviced by a Select FewWe narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Specifications
Country Of OriginUSA
Product To Product Pairs
Extended Service Plan ParentEW08IW2Y, EW08IW1Y, EW08IW4Y
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Certifications
ULYes
ADA CompliantYes
Controls
Control TypeElectronic
Control LocationSide
Cooktop Details
Center Rear Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Left Front Element Burner Size12in./9in./6in.
Left Front Element Burner TypeTriple
Left Rear Element Burner Power1300W
Right Rear Element Burner Power1300W
Center Rear Element Burner Power3200/2300W
Center Rear Element Burner Size10in./6in.
Left Front Element Burner Power4500/3000/1500W
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenJJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Design Type
Design ExpressionOblivian Glass
Depth21.75"
Height5.25"
Maximum Height5.25"
Net Weight41.32 lbs.
Width30.81"

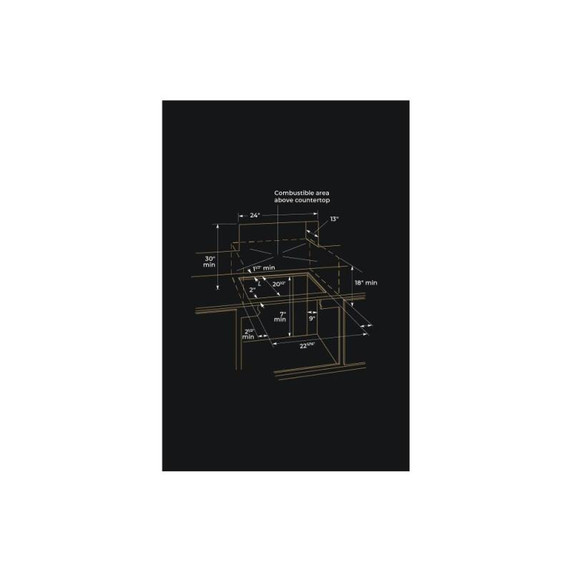

Cutout Depth20.38"
Cutout Width29.06"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch35.0
