JennAir
$12,599.99
Hover on image to zoom

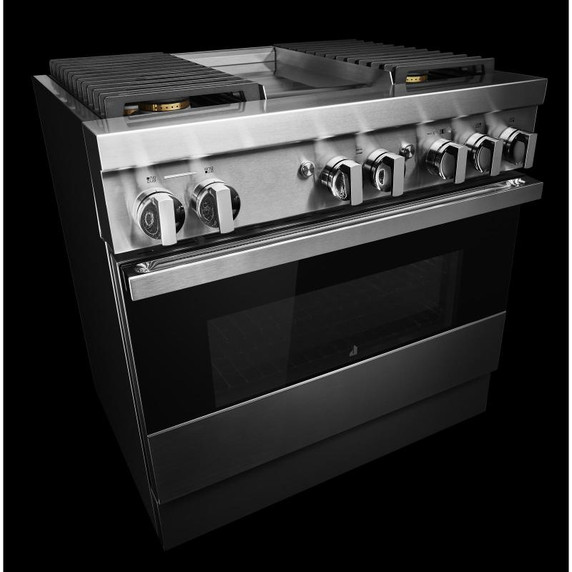

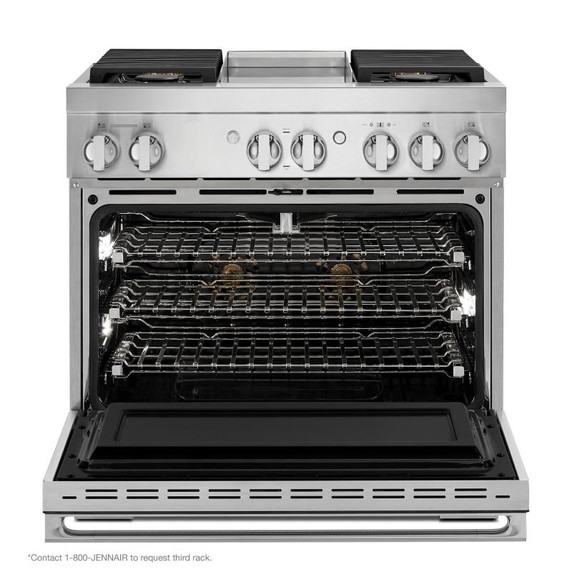

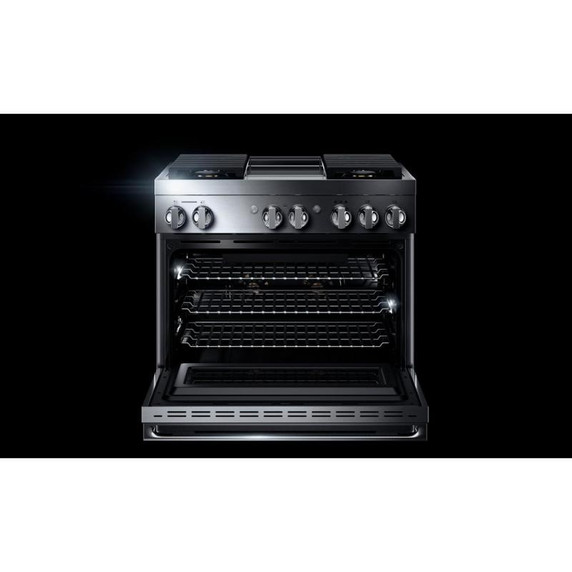

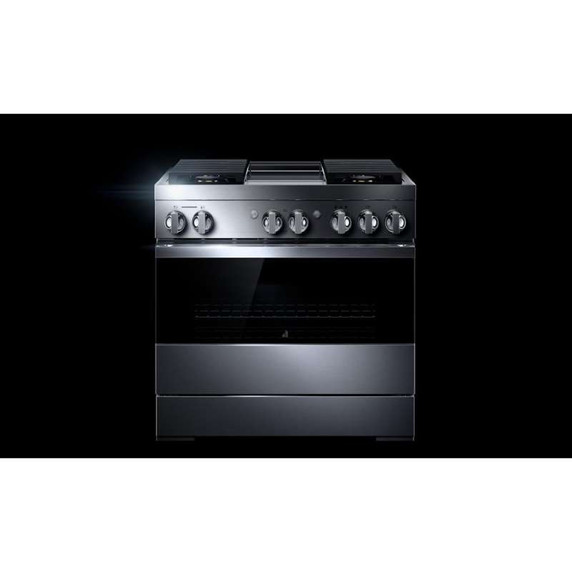

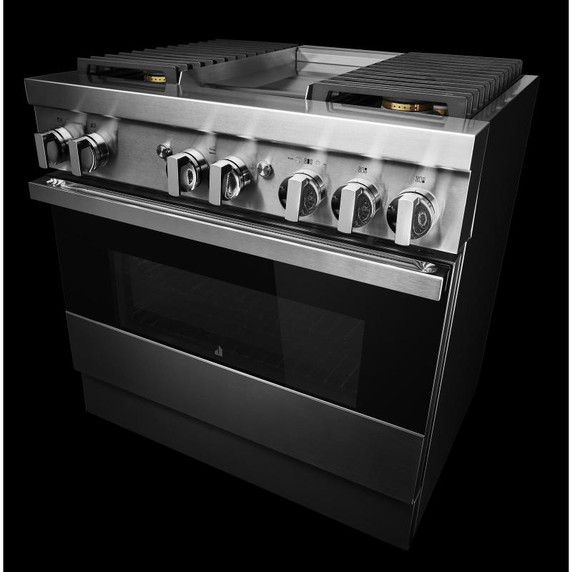

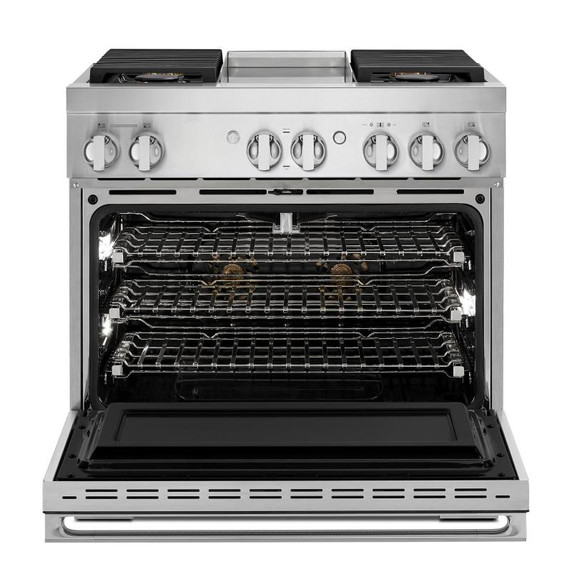

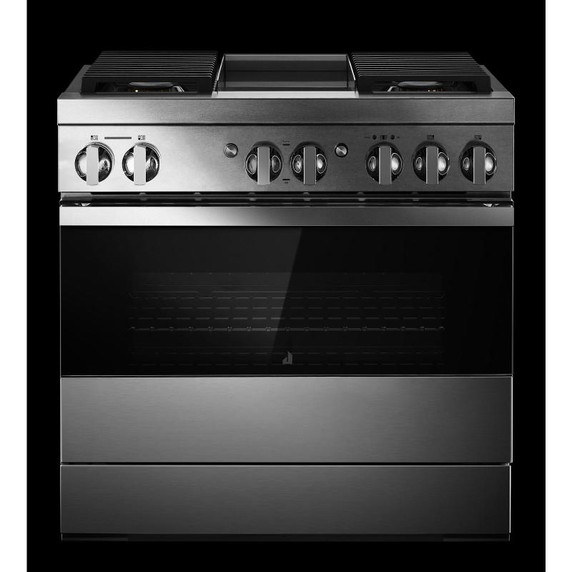

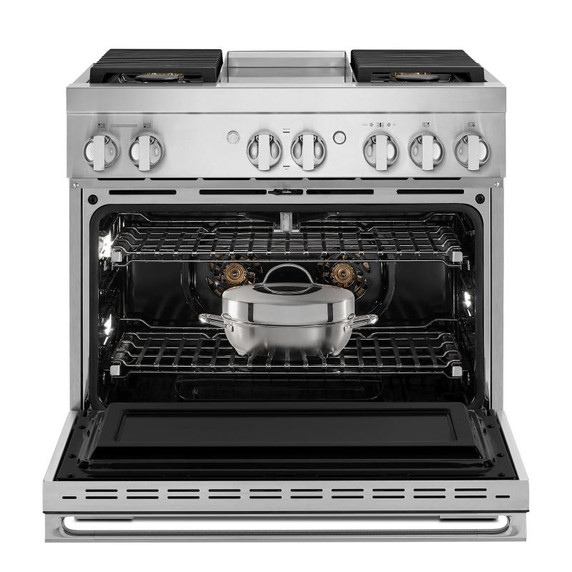

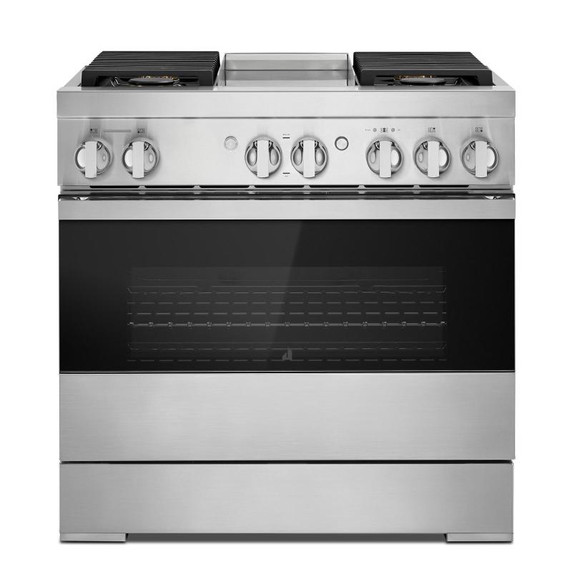

Jennair® 36" NOIR™ Dual-Fuel Professional-Style Range with Chrome-Infused Griddle and Steam Assist JDSP536HM
SKU:
JDSP536HM
$12,599.99
Please contact us for availability
Print:
Colour:
Black
Fuel Type:
Dual Fuel
Cooktop Element Style:
Sealed Burners
Cooktop Control Location:
Front
Range Type:
Professional
Cooktop Surface Material:
Porcelain Coated Steel
Oven Cleaning Type:
Self-Clean
Oven Cooking System:
True Convection
JennAir
Jennair® 36" NOIR™ Dual-Fuel Professional-Style Range with Chrome-Infused Griddle and Steam Assist JDSP536HM

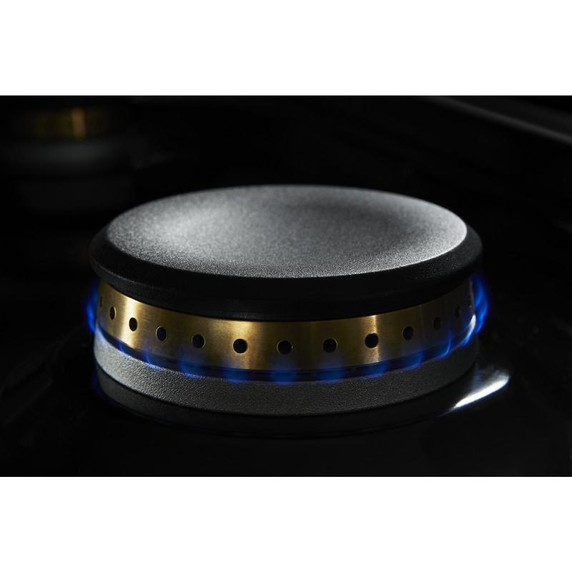

Precise, dual flames produced by precision-drilled brass burners. Inside the oven cavity, steady heat weaves around each flat tine. From searing select cuts and simmering sauces to succulent roasts, these ranges offer unmistakable firepower.
Features
Top 3 Features
JennAir® Culinary CenterWith step-by-step support, savor the full culinary experience backed by customized algorithms, featuring full-color food photography, doneness levels, pan types and menu-specific tips.

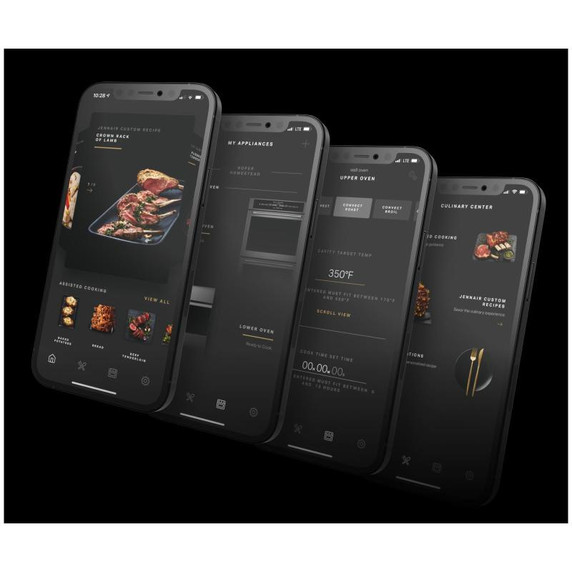

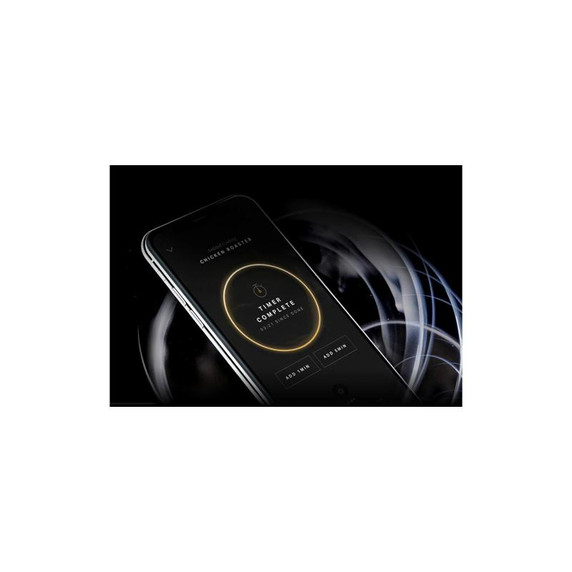

Remote AccessPreheat. Check cooking status. Personalize settings. Connect to WiFi for real-time notifications and control your appliance from anywhere. Tap and swipe on both iOS and Android devices.*
20,000 BTU Dual-Stacked PowerBurnerThis 20,000 BTU dual-stacked PowerBurner can handle high-powered cooking while still being gentle enough for delicate simmering with turndown of 1,650 BTU.
Additional Features

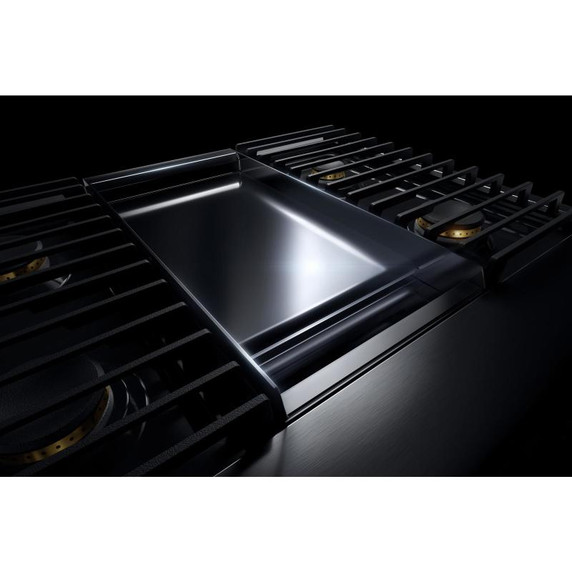

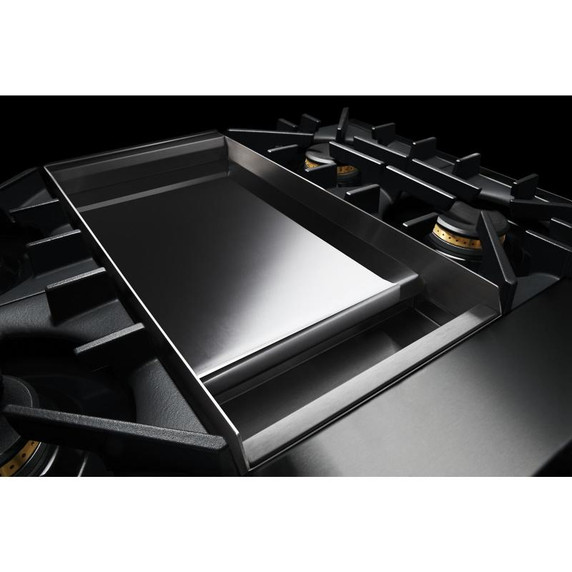

Chrome-Infused GriddleCast off porous, superficially plated options. Go deeper. Infused with chrome, our griddle cleans up well after heavy usage.
GrillGrilling knows no season. Our founder's legacy is rekindled as we bring grilling back indoors. Harness 16,000 BTUs of searing, even heat coursing beneath cast iron grates.

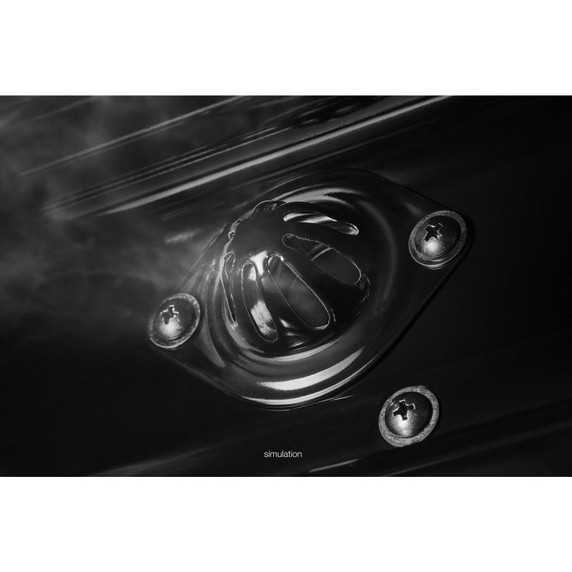

Steam AssistAdd steam into the mix and lock in texture, flavor and nutrients as it envelops your meal.

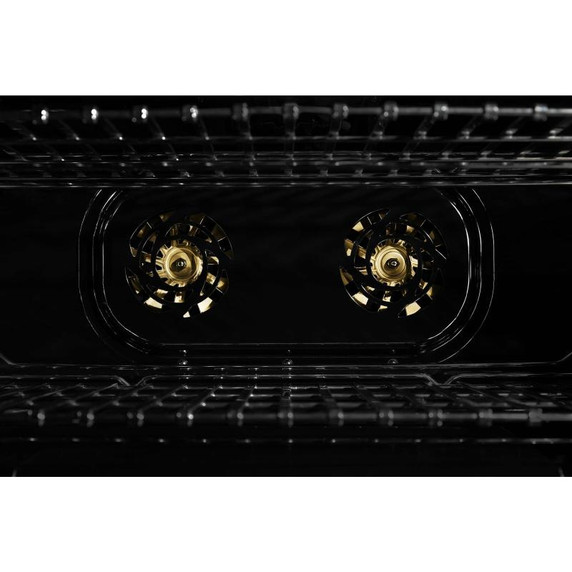

Dual-Fan True ConvectionSteady heat, circulated by whirling metal blades, weaves around every flat tine. Beyond baking, wield your cooking prowess with the help of the culinary center through the app, from marbled meats to succulent roasts.
Dual-Fan True ConvectionSteady heat, circulated by whirling metal blades, weaves around every flat tine. Beyond baking, wield your cooking prowess with the help of the culinary center through the app, from marbled meats to succulent roasts.

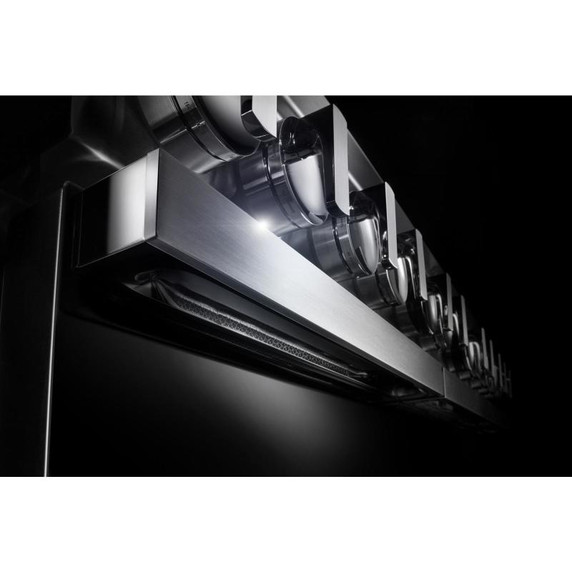

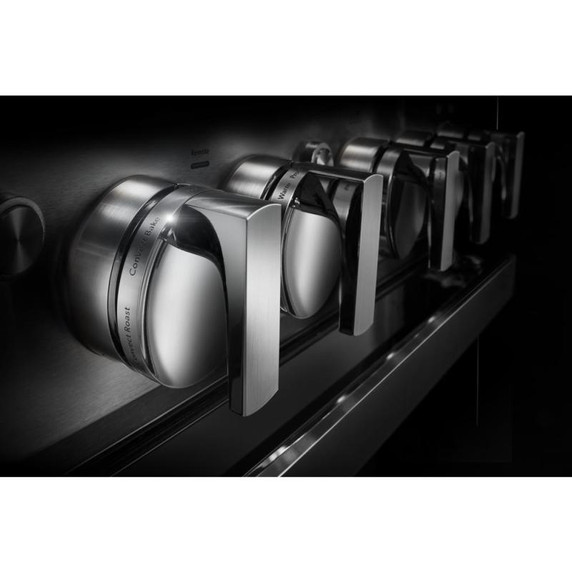

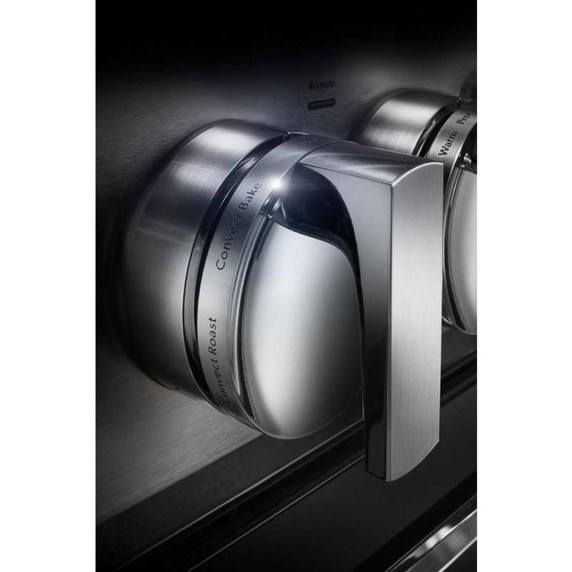

Halo-Effect KnobsA halo of luminary LEDs glows softly when the burner is lit or the oven is on.
Halo-Effect KnobsA halo of luminary LEDs glows softly when the burner is lit or the oven is on.
Connected Temperature ProbeKnow when dinner is done without ever opening the door. Precision readings of food’s internal temperature are sent directly to the app.
Flat Tine RacksEach rack features dramatic, unexpected flat tines, delivering increased contact with cookware for exceptional heat transfer.
GrillGrilling knows no season. Our founder's legacy is rekindled as we bring grilling back indoors. Harness 16,000 BTUs of searing, even heat coursing beneath cast iron grates.

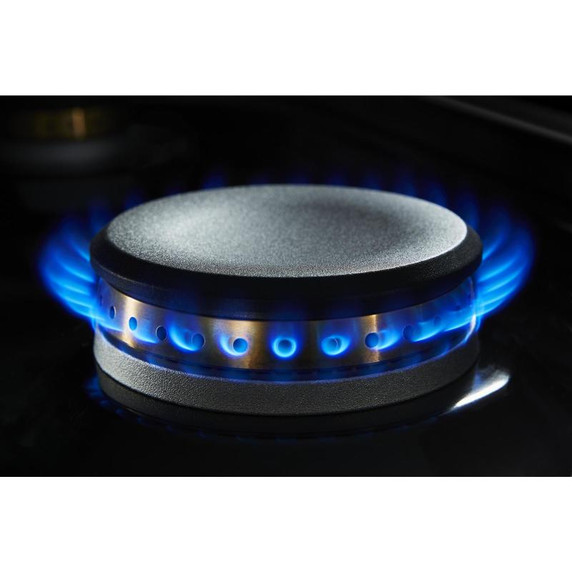

Dual-Stacked PowerBurnersTwo stacked, symmetrical flames bloom and retreat at your inclination, offering total control over heat levels. High-heat searing and wok cooking. Low, slow simmer and melt. Infinite intermediate settings satisfy every appetite.
Chrome-Infused GriddleCast off porous, superficially plated options. Go deeper. Infused with chrome, our griddle cleans up well after heavy usage. Underneath, a serpentine element powers our best griddle preheat. With a 1,320-watt element for even, precise heat, chrome lets you cook fast and prevents heat from lingering too long in your kitchen.
34 Range ConfigurationsBend fire to your will. Grills, griddles, brass burners. Dual fuel or gas. Three widths. Four unique oven combinations. With 34 total configurations, it’s up to you. Cast off porous, superficially plated options. Go deeper. Infused with chrome, our griddle cleans up well after heavy usage. Underneath, a serpentine element powers our best griddle preheat. Fire up the grill for indoor entertainment on your terms.
34 Range ConfigurationsBend fire to your will. Grills, griddles, brass burners. Dual fuel or gas. Three widths. Four unique oven combinations. With 34 total configurations, it’s up to you. Cast off porous, superficially plated options. Go deeper. Infused with chrome, our griddle cleans up well after heavy usage. Underneath, a serpentine element powers our best griddle preheat. Fire up the grill for indoor entertainment on your terms.
Seamless TouchesSeamlessly designed from head to toe. Oven burners and elements hide beneath the surface. Concealed details melt into their stainless steel surround, as dark interiors and glass expanses pull you in. Our precise 4-point leveling leg system—one of the best in luxury—is tucked behind the removable toe-kick. And with upfront, easy access, installers never have to get into uncomfortable positions.
Seamless TouchesSeamlessly designed from head to toe. Oven burners and elements hide beneath the surface. Concealed details melt into their stainless steel surround, as dark interiors and glass expanses pull you in. Our precise 4-point leveling leg system—one of the best in luxury—is tucked behind the removable toe-kick. And with upfront, easy access, installers never have to get into uncomfortable positions.

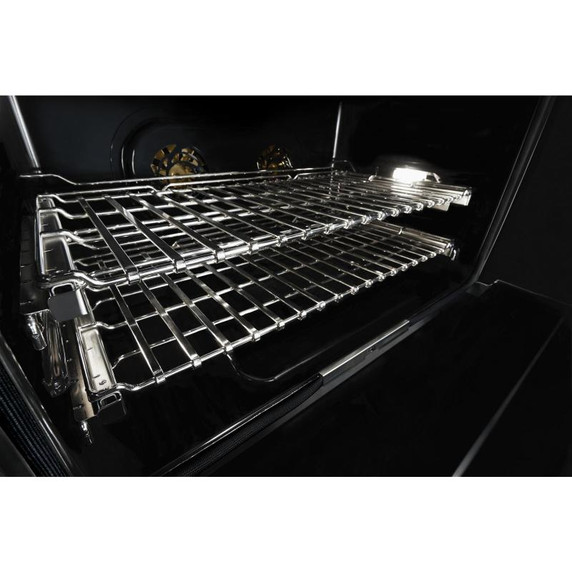

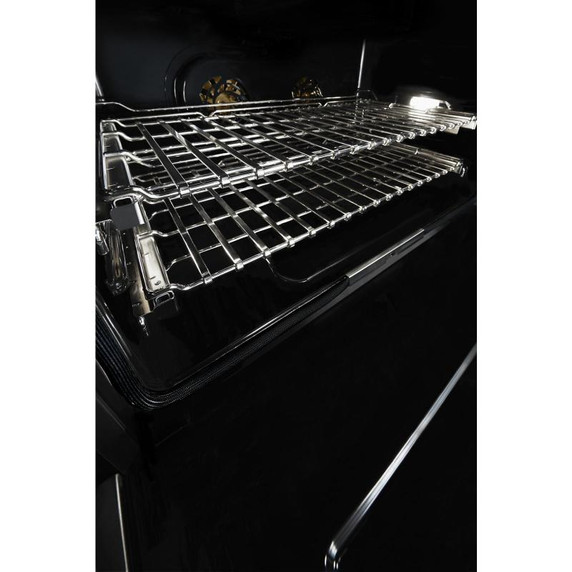

Glide RacksSmooth moves. Each rack glides in and out fluidly and quietly, featuring flat tines for peak aesthetics. Range includes two glide racks with a third rack available at no additional cost upon request*.
Glide RacksSmooth moves. Each rack glides in and out fluidly and quietly, featuring flat tines for peak aesthetics. Range includes two glide racks with a third rack available at no additional cost upon request*.

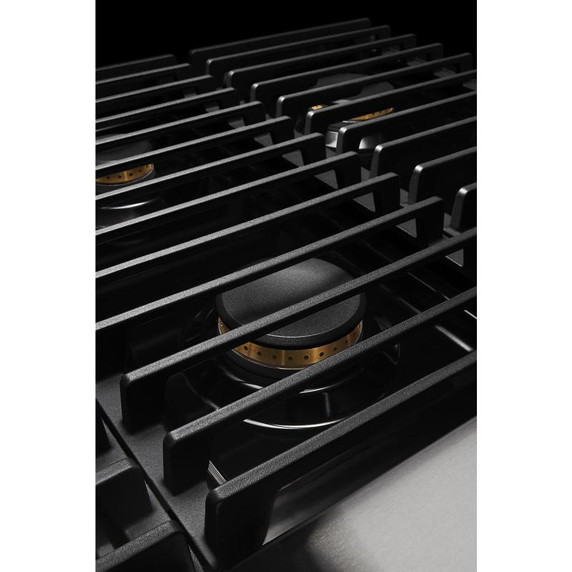

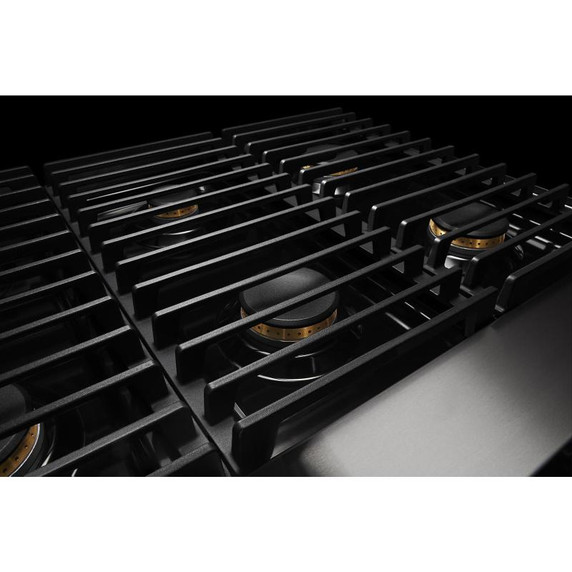

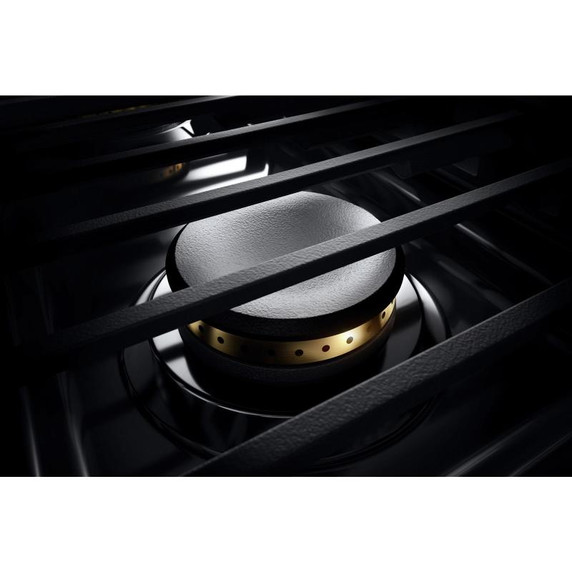

Cast Iron GratesRobust geometric grates form one graceful surface, crafted to withstand heavy woks and cookware.
NOIR™ Design ExpressionSculpted in stainless steel, the NOIR™ Design Expression features structured grates, expansive black glass, an illusive badge and hidden lace textures, discoverable only by touch. Explore the artful mystery of a minimalist design that rejects dated ideals of beauty.
RISE™ Design ExpressionForged in mixed metals, the robust lines of the RISE™ Design Expression draw the eye to its bold, professional-style design. Indulge in the details — a custom knurled handle, brass-inspired knob collars, a bold badge and geometric grates.
NOIR™ Design ExpressionSculpted in stainless steel, the NOIR™ Design Expression features structured grates, expansive black glass, an illusive badge and hidden lace textures, discoverable only by touch. Explore the artful mystery of a minimalist design that rejects dated ideals of beauty.
Steam AssistAdd steam into the mix and lock in texture, flavor and nutrients as it envelops your meal.

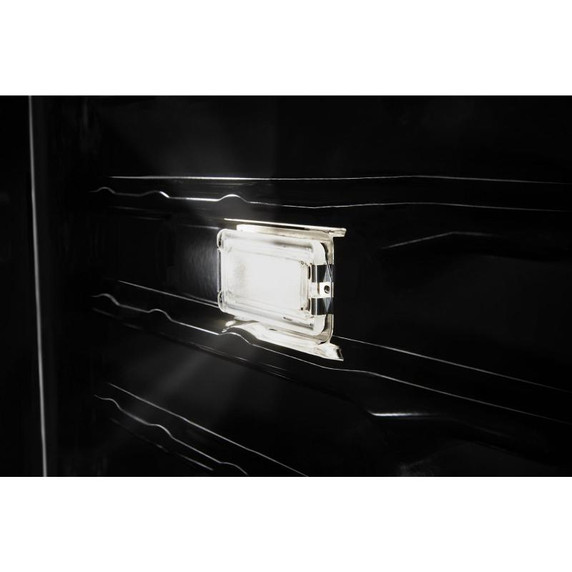

Cinematic LightingLights, camera, cook. Halogen lighting increases to full intensity, minimizing shadows and dramatically showcasing food.
Cinematic LightingLights, camera, cook. Halogen lighting increases to full intensity, minimizing shadows and dramatically showcasing food.
Smooth Close DoorQuiet, soft, secure. Your oven gently pulls the door closed.
Smooth Close DoorQuiet, soft, secure. Your oven gently pulls the door closed.
Sabbath ModeSelect this function to bypass the oven’s automatic shutoff when observing the Sabbath and other religious holidays.
Sabbath ModeSelect this function to bypass the oven’s automatic shutoff when observing the Sabbath and other religious holidays.
CustomClean™ with Automatic LockCome clean. Tailor cleaning levels to the amount of build-up to revive your oven's interior.
CustomClean™ with Automatic LockCome clean. Tailor cleaning levels to the amount of build-up to revive your oven's interior.
Versatile Cooking ModesUncompromising results, untroubled process. Dough rises quickly and evenly with Proofing mode, and the Warm setting lets you serve your entire menu at the same time. Automatically convection cook by food type, or manually select convection modes by cooking method.
Versatile Cooking ModesUncompromising results, untroubled process. Dough rises quickly and evenly with Proofing mode, and the Warm setting lets you serve your entire menu at the same time. Automatically convection cook by food type, or manually select convection modes by cooking method.
18,000 BTU Dual-Stacked PowerBurnerThis 18,000 BTU dual-stacked PowerBurner can handle high-powered cooking while still being gentle enough for delicate simmering with turndown of 1,650 BTU.
18,000 BTU Dual-Stacked PowerBurnerThis 18,000 BTU dual-stacked PowerBurner can handle high-powered cooking while still being gentle enough for delicate simmering with turndown of 1,650 BTU.
9,000 BTU Dual-Stacked PowerBurnerA dual-stacked PowerBurner that reaches a maximum power level of 9,000 BTU and fulfills most everyday cooking functions with turndown of 1,000 BTU.
Closed Door BroilingTurn up the heat behind closed doors. Caramelized crust. Delicate char. Tender center. High, even heat with outstanding ventilation means you can sear fearlessly and without opening the door.
9,000 BTU Dual-Stacked PowerBurnerA dual-stacked PowerBurner that reaches a maximum power level of 9,000 BTU and fulfills most everyday cooking functions with turndown of 1,000 BTU.
Electronic Ignition with Flame-Sensing™ ReignitionBurnout banned. If a sudden draft blows out a flame, intelligent Flame-Sensing™ reignition automatically sparks it back to life.
Star-K CertifiedStar-K Certified
Smart IntegrationUse voice commands with an Alexa-enabled device or the Google Assistant.
Closed Door BroilingTurn up the heat behind closed doors. Caramelized crust. Delicate char. Tender center. High, even heat with outstanding ventilation means you can sear fearlessly and without opening the door.
Culinary IntelligenceYou'll indulge in culinary adventures tailored precisely to your preferences with step-by-step recipes, timers and more. Look and learn your way to unforgettable dishes.
Electronic Ignition with Flame-Sensing™ ReignitionBurnout banned. If a sudden draft blows out a flame, intelligent Flame-Sensing™ reignition automatically sparks it back to life.
My CreationsCurate recipe presets at will. Bake for 30 minutes, broil for 4 and keep dishes warm until you’re ready to dine—all without lifting a finger.
Smart IntegrationUse voice commands with an Alexa-enabled device or the Google Assistant.
On-Demand ExpertsConnect with the JennAir Epicenter through chat, email, or call to tap into the brilliant minds of experts who know JennAir® appliances inside and out. Receive diagnostic codes on the app and they'll deploy service targeted to your range's best interest.
Culinary IntelligenceYou'll indulge in culinary adventures tailored precisely to your preferences with step-by-step recipes, timers and more. Look and learn your way to unforgettable dishes.
Equilibrium LevelingOur precise 4-point leg leveling system—one of the best in luxury, by the way—is tucked behind the removable toe-kick. And with upfront, easy access to all of the legs, installers can put the range in its place.
My CreationsCurate recipe presets at will. Bake for 30 minutes, broil for 4 and keep dishes warm until you’re ready to dine—all without lifting a finger.
Adaptable InstallationNew construction. Replacements. Upgrading from subpar models. Our ranges smoothly adapt to more luxury installation site situations, thanks to expanded electrical utility areas. A supplied power cord makes installation even simpler.
On-Demand ExpertsConnect with the JennAir Epicenter through chat, email, or call to tap into the brilliant minds of experts who know JennAir® appliances inside and out. Receive diagnostic codes on the app and they'll deploy service targeted to your range's best interest.
Equilibrium LevelingOur precise 4-point leg leveling system—one of the best in luxury, by the way—is tucked behind the removable toe-kick. And with upfront, easy access to all of the legs, installers can put the range in its place.
Adaptable InstallationNew construction. Replacements. Upgrading from subpar models. Our ranges smoothly adapt to more luxury installation site situations, thanks to expanded electrical utility areas. A supplied power cord makes installation even simpler.
Specifications
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Product To Product Pairs
Extended Service Plan ParentEW13IW1Y, EW13IW2Y, EW13IW4Y
Optional AccessoriesW10216179, W11323012, W11323015, W11296589, W10285448, W11323014
Electrical
Hz60
Power Cord IncludedYes
Volts240
Amps40
Certifications
ULYes
ADA CompliantNo
Star K CertifiedYes
Energy Rating Kwh Year388
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Configuration and Overview
Fuel TypeDual Fuel
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Cooktop Details

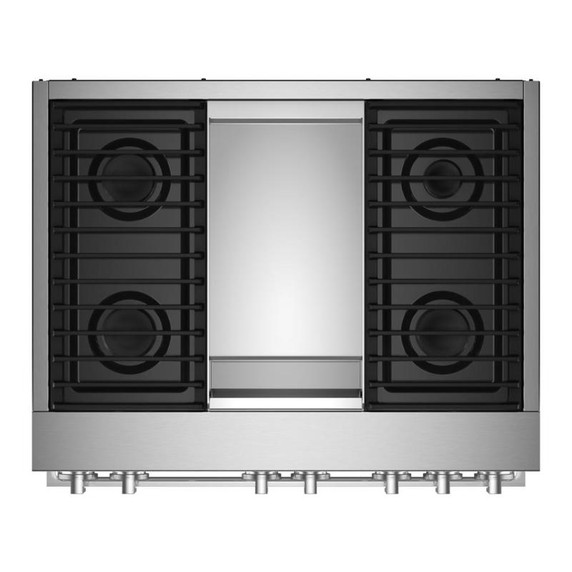

Cooktop ConfigurationBurners with Integrated Griddle
Cooktop Element StyleSealed Burners
Left Front Element Burner Power20000BTU
Left Front Element Burner TypeDual
Left Rear Element Burner Power18000BTU
Left Rear Element Burner TypeDual
Right Front Element Burner Power20000BTU
Right Front Element Burner TypeDual
Right Rear Element Burner TypeDual
Auto Re IgnitionYes
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Ignition TypeFlame-Sensing™ Re-ignition
Number Of Cooking Element Burners4
Right Rear Element Burner Power9000BTU
Grate DetailsContinuous; Dishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates
Features
GriddleYes
Heating Element On Indicator LightYes
Hot Surface Indicator LightNo
LP ConvertibleYes
Power Outage CompatibleYes (Gas Cooktop Burners Only)
Automatic Convection Conversion Temperature AdjustYes
Natural Gas ConvertibleYes
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; iOS
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Description
Range TypeProfessional
Size In36
Details
Bake Element Power3000W
Broiler LocationTop of Oven
Convection Element TypeDual Fan
Convection FunctionsBake; Broil; Roast
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Interior ColorBlack
Oven Cleaning TypeSelf-Clean
Oven Control Knob ColorStainless Steel
Oven Control Knob TypeMetal
Oven Control LocationFront Control
Oven Control TypeKnobs
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Oven Rack TypeGliding Roll-Out
Rack Guide TypeMolded
Number Of Rack Guides5
Number Of Oven Lights3
Oven Interior Depth In Inches16.3
Number Of Oven Racks3
Oven Interior Width In Inches29.9
Broiler Element Power1667W
Convection Element Power Watts2800
Energy
Annual Energy Usage Kwh388
Dimensions
Carton Depth35.5"
Carton Height47.6"
Carton Width41.8"
Depth Closed Excluding Handles27.69"
Depth Closed Including Handles29.81"
Depth With Door Open 90 Degree46.5"
Depth29.81"
Gross Weight444.0 lbs.
Height36.0"
Width35.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width36.0"
Capacity FT3 (cubic feet)5.1
