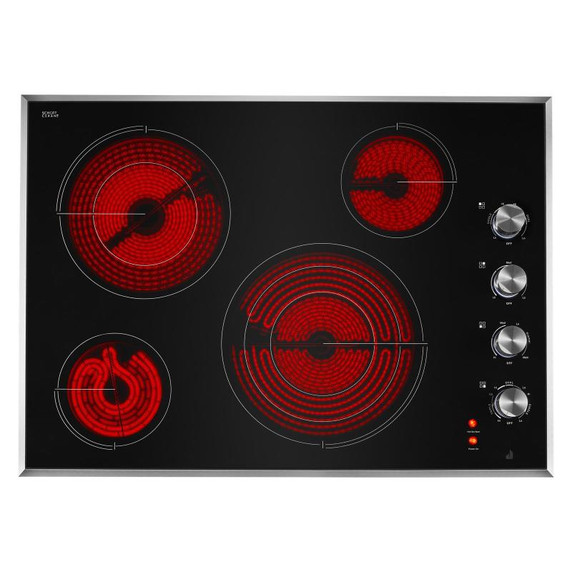

Jennair® 30" Lustre Stainless Radiant Glass Cooktop with Halo-Effect Knobs JEC3430HS
JennAir
Jennair® 30" Lustre Stainless Radiant Glass Cooktop with Halo-Effect Knobs JEC3430HS

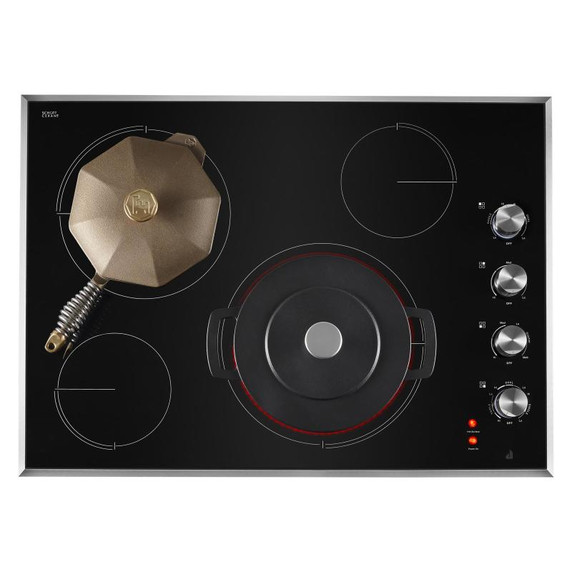

12”/9”/6” Triple-Choice™ ElementReaching a powerful 3,000 watts, this three-tiered element provides versatility in both power levels and heating efficiency while accommodating various-sized cookware.

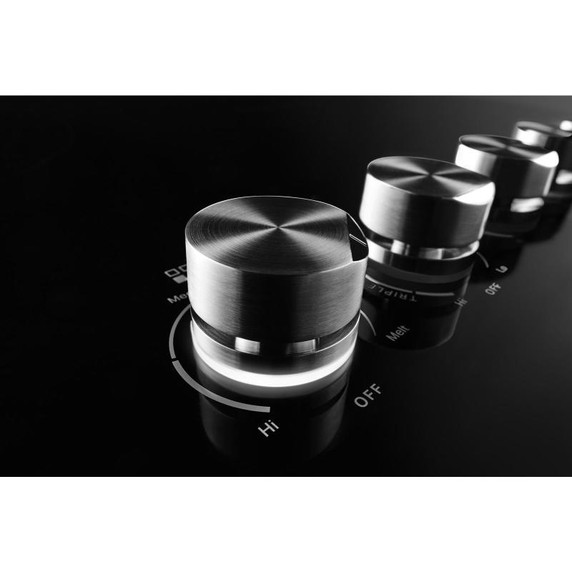

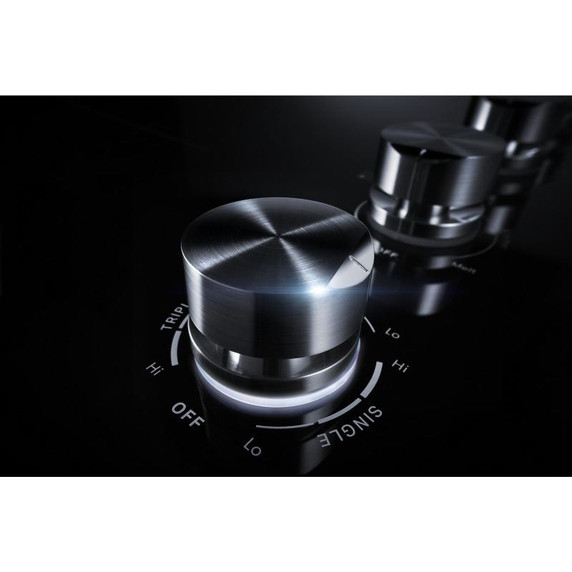

Halo-Effect KnobsA halo of luminary LEDs glows softly when the burner is lit or the oven is on.

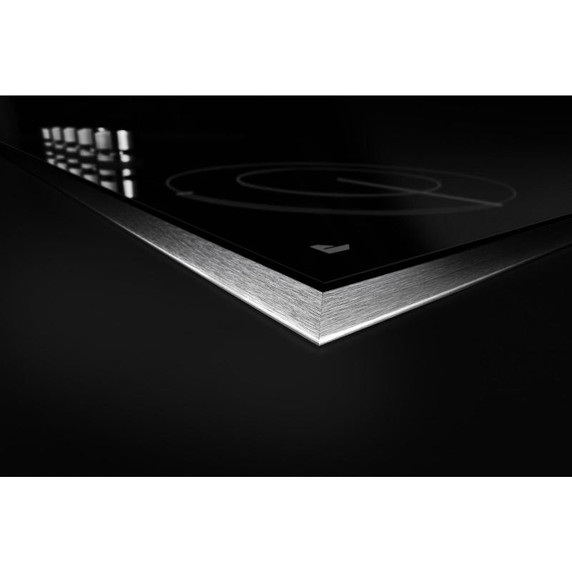

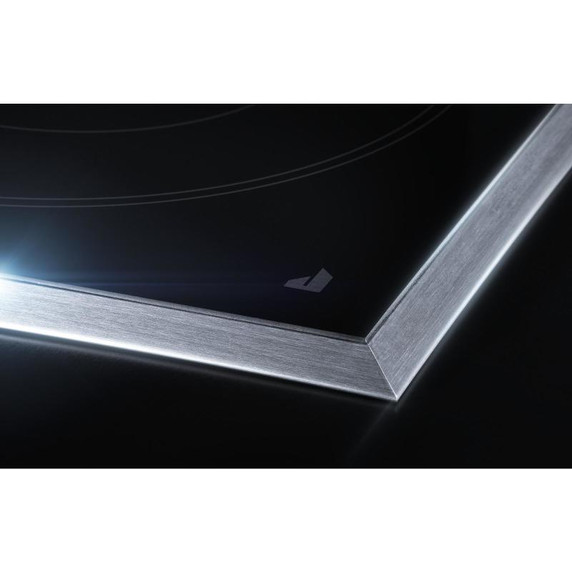

Lustre Brushed Metal DesignBlur the lines of temptation with tight corners of lustrous brushed metal that will leave you reeling.

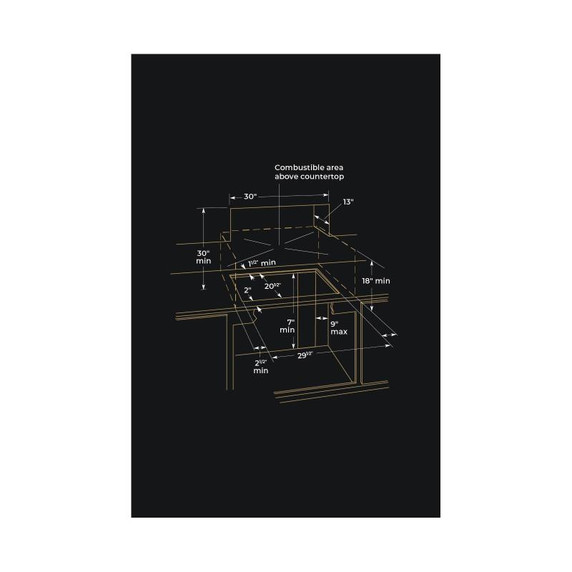

Install Over Single Wall OvenVersatility and functionality converge with the ability to install in a countertop above our single wall oven.
10”/6” Dual-Choice™ ElementThis two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.

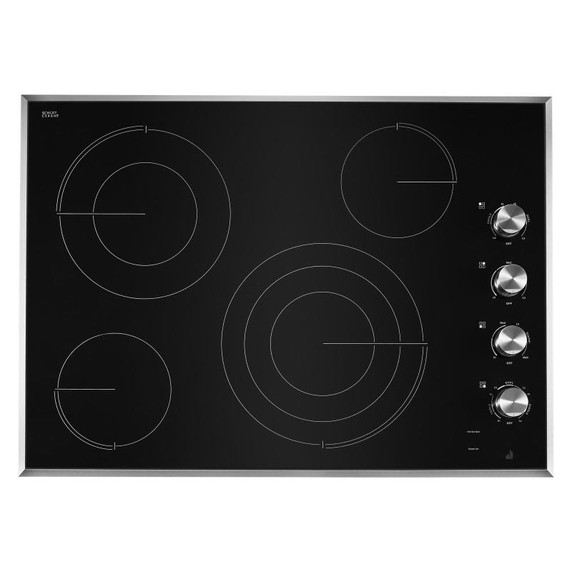

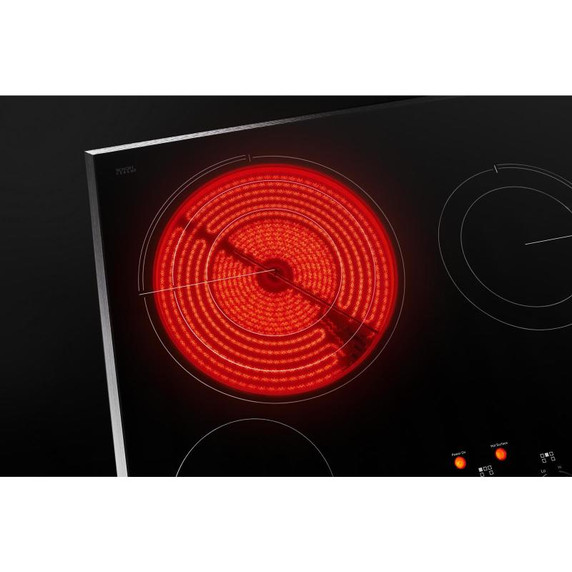

Radiant ElementsWaiting expectantly beneath the stillness of shadow-black glass, electric elements are coiled to deliver heat upon command.
Simmer FunctionProvides the optimal temperature for gently cooking delicate sauces and foods.
Melt FunctionRibbons of molten chocolate. Butter that yields to your knife. All elements are at your beck and call, ready to melt and soften with delicate heat that ignites passionate appetites.
6” 1,200-Watt Single ElementA fast-heating and perfectly sized element for your small sauce pans and larger sauciers.
6” 1,300-Watt Single ElementA fast-heating, perfectly sized and powerful 1,300-watt element for your small sauce pans and larger sauciers.
Hot Surface IndicatorsLight(s) positioned at the controls instantly show which element is still hot—even if the element has been turned off.
Power On Indicator LightSee at a glance that power is on for an electric radiant element.
Experts at the ReadyOur crew relentlessly engages with JennAir® appliances day in, day out. Initiated in rigorous product, process and culinary training, this team answers to you—from sales to installation to ownership.
Serviced by a Select FewWe narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
ADA CompliantDesigned to meet ADA standards when installed according to the ADA guidelines.
Oblivion Glass SurfacePlunge into the tranquility of smooth, shadow-black glass that lures you in—and wipes down easily.

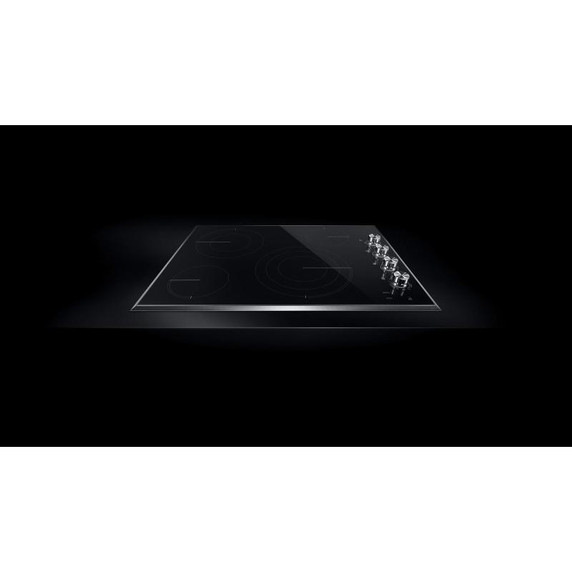

True Flush InstallationPique curiosity. A true flush installation makes the Oblivion Glass surface melt into its surroundings, luring you in.
Specifications
Country Of OriginUSA
Optional AccessoriesW10355051B
Product To Product Pairs
Extended Service Plan ParentEW07IW1Y, EW07IW4Y, EW07IW2Y
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Left Rear Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Number Of Cooking Element Burners4
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Left Front Element Burner TypeStandard
Left Front Element Burner Power1300W
Left Front Element Burner Size6in.
Left Rear Element Burner Power3000/1900W
Left Rear Element Burner Size10in./6in.
Right Front Element Burner Power3000W/2200W/1100W
Right Front Element Burner Size12in./9in./6in.
Right Front Element Burner TypeTriple
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Description
Size In30
Cooktop TypeTraditional
Combinations With OvenJJW2424; JJW2427; JJW2430; JJW3430; JJW6024
Controls
Control TypeManual
Knob TypeMetal
Control LocationSide
Design Type
Design ExpressionLustre Stainless
Configuration and Overview
Fuel TypeElectric Radiant
Depth21.75"
Height6.06"
Maximum Height6.06"
Net Weight41.0 lbs.
Width30.81"
Cutout Depth20.56"
Carton Depth Inch25.0
Carton Height Inch10.25
Carton Width Inch35.0
