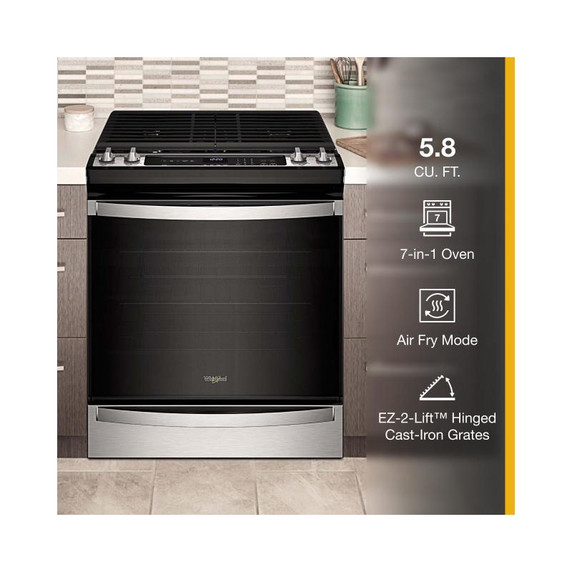

5.8 Cu. Ft. Whirlpool® Gas 7-in-1 Air Fry Oven WEG745H0LZ
7-in-1 OvenCook however you want with 7 cooking modes in 1 oven: Air Fry, Convect Bake, Convect Broil, Frozen Bake™, Bake, Broil and Keep Warm cycles. This range gives you the flexibility to cook a variety of dishes by combining multiple cooking modes in one oven.
Air Fry ModeSkip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way with less oil than traditional frying.
True Convection CookingQuickly bake multiple items at once with True Convection Cooking. The oven fan circulates hot air from three heating elements around the oven so you can cook foods fast and don’t have to move dishes around as you cook.
EZ-2-Lift™ Hinged Cast-Iron GratesGet quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without removing them.
SpeedHeat™ BurnerUse the SpeedHeat Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly. *Compared to 9.5K burner on the same model.
Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.
AquaLift® Self-Cleaning TechnologyAquaLift® Self-Cleaning Technology
Center Oval BurnerEasily fit large griddles and other longer cookware on this fifth burner so they heat evenly on the cooktop.
Rapid PreheatSave time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
*Single-rack baking with Rapid Preheat option versus three-rack without option.
Keep Warm SettingKeep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
5.8 Cu. Ft. CapacityEasily cook a whole meal with 5.8 Cu. Ft. Capacity.
Fingerprint ResistantAvailable in a fingerprint resistant stainless finish, the easy-to-clean exterior resists fingerprints and smudges.
Control Lock ModeDisable the control panel to avoid unintended use and easily clean controls.
Broil SettingWhen you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
Hidden Bake ElementA hidden bake element under the floor of the oven creates a smooth surface inside the oven that’s easier to clean.
Storage DrawerA Storage Drawer in the bottom of your range allows easy access to the items you use most and opens up space elsewhere.
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Extended Service Plan ParentEW07IW2Y, EW07IW4Y, EW07IW1Y
Optional AccessoriesW10115773, W10731886, W10675027, W10655448, W10675028, W10655450, W10731885, W11123246, W10675026, W10655449, W10731887
Product To Product PairsWVW53UC0HV, UVL5430JSS, WVW57UC0FS, WVU57UC0FS, UXT5530AAS, WVU17UC0JS, WVW51UC0LS, WVU17UC0JW, WVW53UC0LS, WVW73UC0LS, WVU37UC0FS
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
CULYes
ADA CompliantYes
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle
Controls
Knob TypeWeighted
Electronic Display TypeLED
Knob ColorStainless Steel
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Left Rear Element Burner TypeStandard
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Front Element Burner TypeWarming
Left Front Element Burner TypeStandard
Right Front Element Burner TypeStandard
Left Rear Element Burner Power5000BTU
Right Front Element Burner Power15000BTU
Auto Re IgnitionNo
Ignition TypeDirect Spark Ignition
Left Front Element Burner Power17000BTU
Right Rear Element Burner Power9200BTU
Center Front Element Burner Power8000BTU
Grate DetailsDishwasher Safe; Matte Finish; Porcelain Coated Cast Grates; Rear Hinged Grate
Features
Heating Element On Indicator LightYes
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
Hot Surface Indicator LightYes
Power Outage CompatibleYes
GriddleNo, Optional Accessory
Total Gas Btus Oven S31,000
Total Gas Btus Cooktop54,200
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Control Knob ColorStainless Steel
Oven Control LocationFront Control
Oven Cooking SystemTrue Convection
Interior ColorGrey
Number Of Oven Lights1
Oven Light TypeIncandescent
Oven Control TypeElectronic Touch
Number Of Oven Racks3
Oven Light Switch LocationTop of Console
Bake Element Power18000BTU
Number Of Rack Guides7
Oven Interior Width In Inches24.38
Oven Rack Type2 Standard and 1 Max Capacity
Convection Element Power Watts925
Broiler Element Power13000BTU
Oven Interior Depth In Inches20.63
Convection FunctionsBake; Broil
Oven Cleaning TypeAquaLift® Self-Clean
Convection Element TypeTrue-Bow Tie
Description
Size In30
Range TypeSlide-in
Configuration and Overview
Fuel TypeGas
Compatibility
Connectivity
Works With
Refinements
Whr RangeAir Fry
Carton Depth30.5"
Carton Height43.5"
Carton Width31.5"
Depth Closed Excluding Handles27.88"
Depth Closed Including Handles28.88"
Depth With Door Open 90 Degree48.5"
Depth28.5"
Gross Weight213.0 lbs.
Height39.96"
Maximum Height39.96"
Minimum Height38.96"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.8
